Trouble Code 6 - Ignition Signal

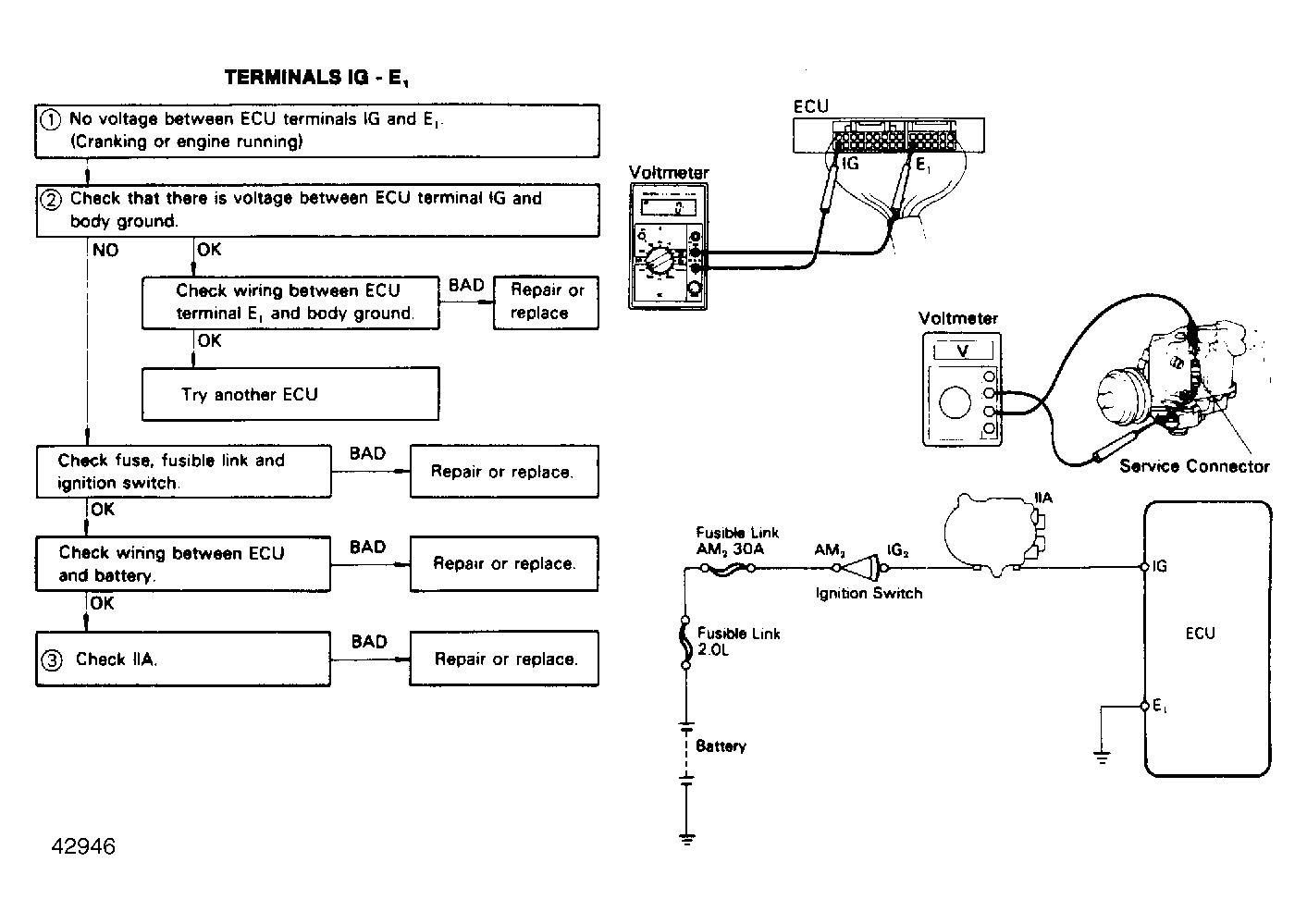

Fig 1: Terminals IG - E1
G42946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

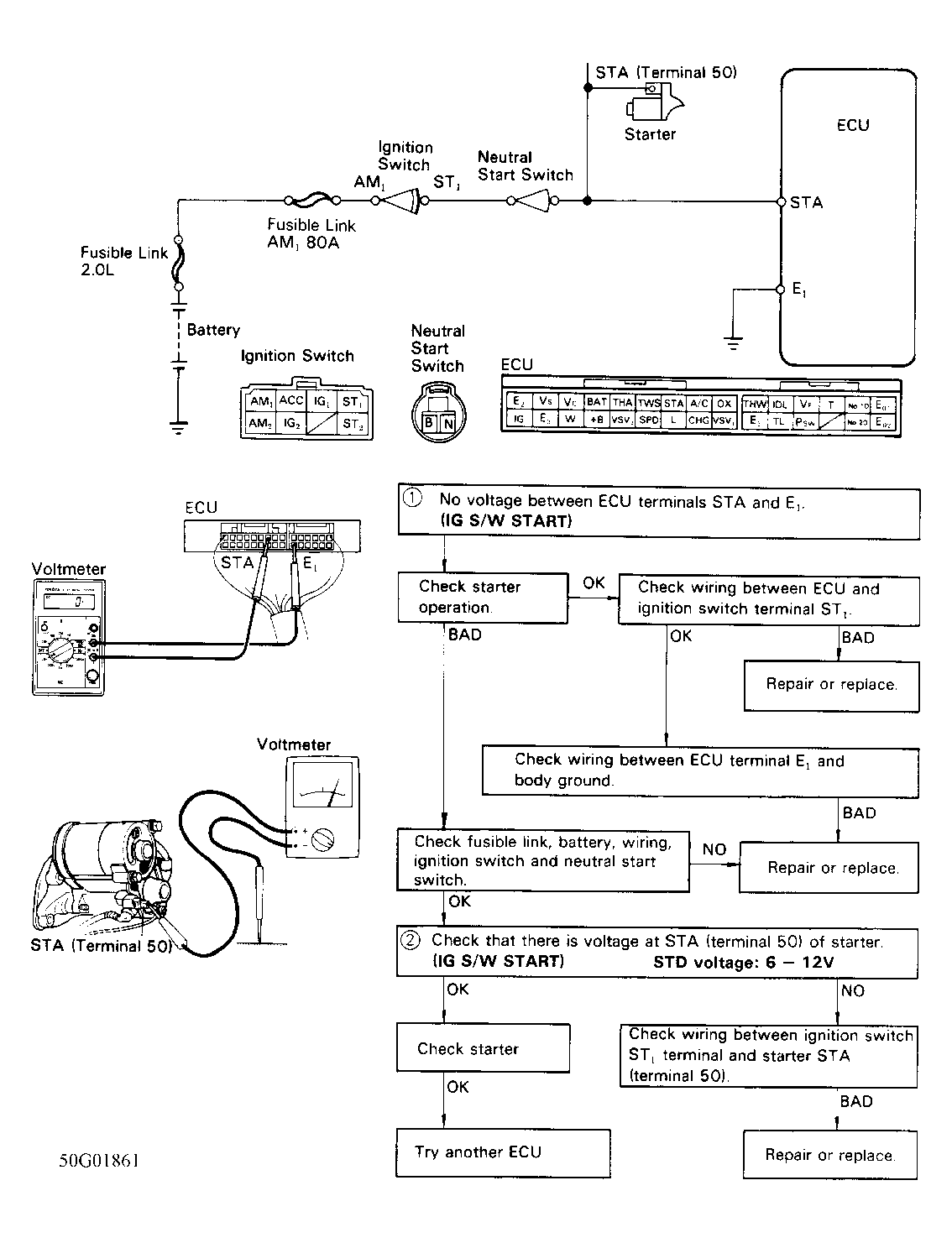

Fig 2: Terminals STA - E1
G50G01861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
