Trouble Code 7 Blinks - Throttle Position Sensor & Circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Trouble Code 7 Blinks - Throttle Position Sensor & Circuit

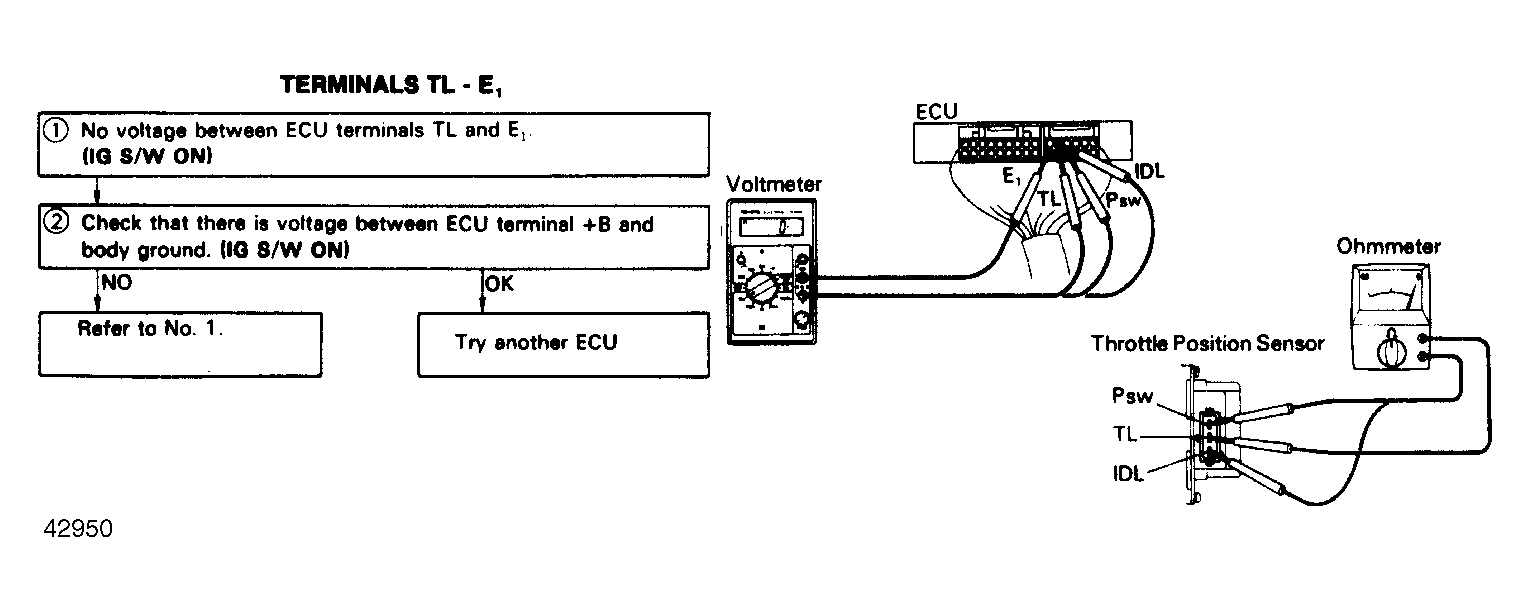

Fig 1: Terminals TL - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

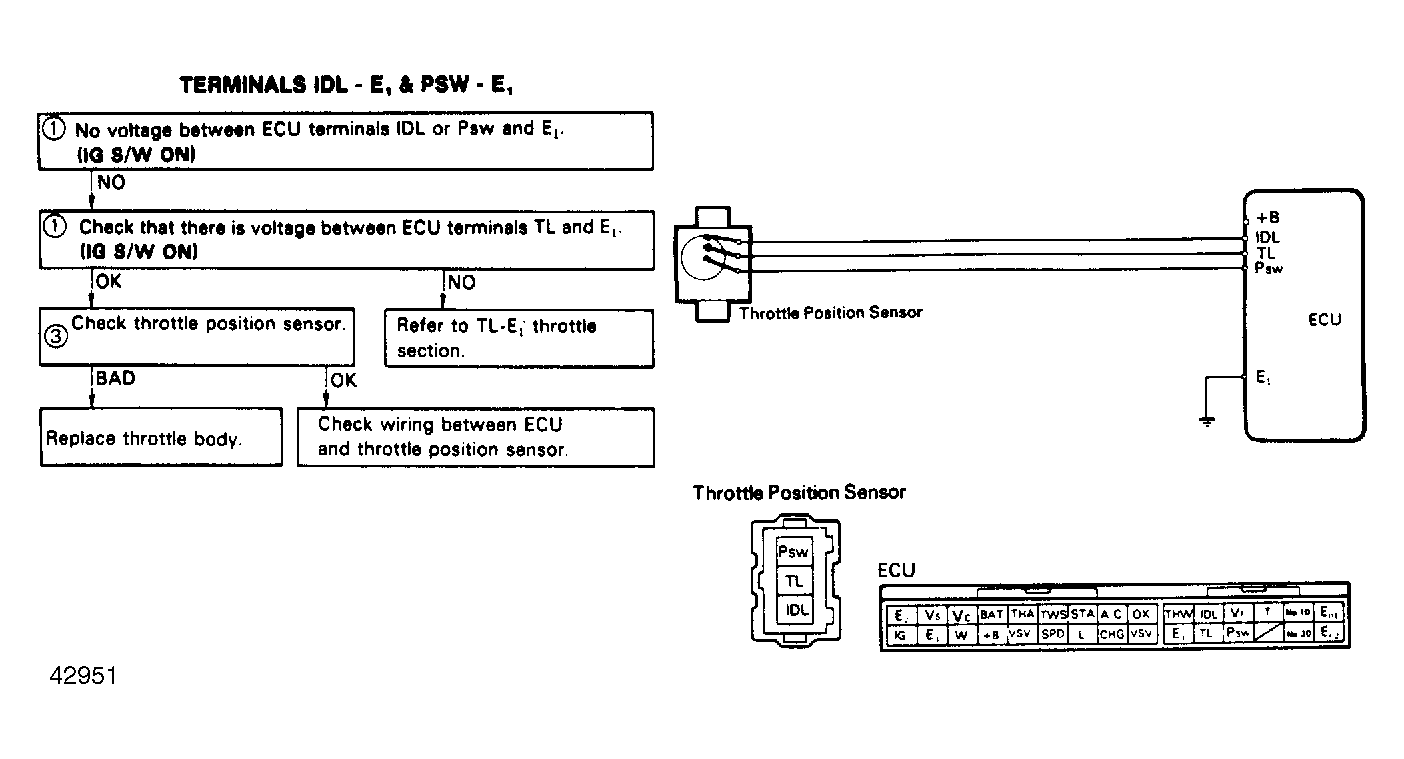

Fig 2: Terminals IDL - E1, PSW - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
