Mixture Control System: Description

This system controls emissions of HC and CO during sudden deceleration. This is accomplished through a mixture control valve which allows additional fresh air to enter the intake manifold when sudden deceleration (closed throttle) occurs.

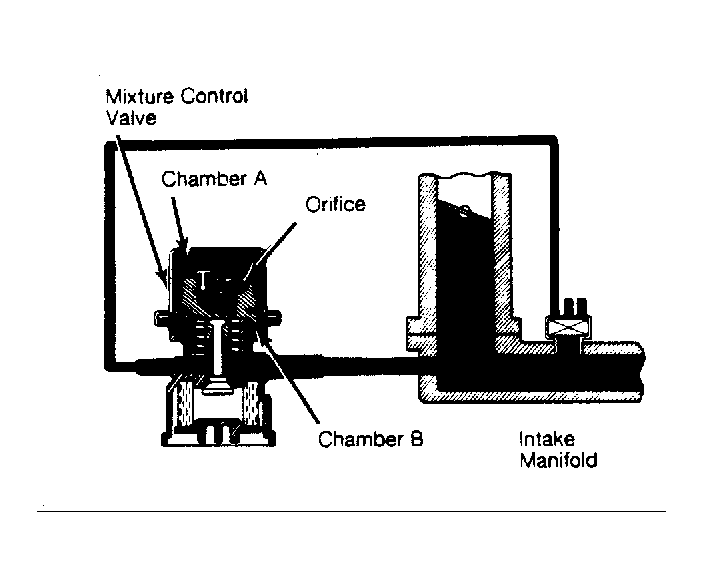

Fig 1: Mixture Control System (Typical)
G38382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
