Wiring Diagrams

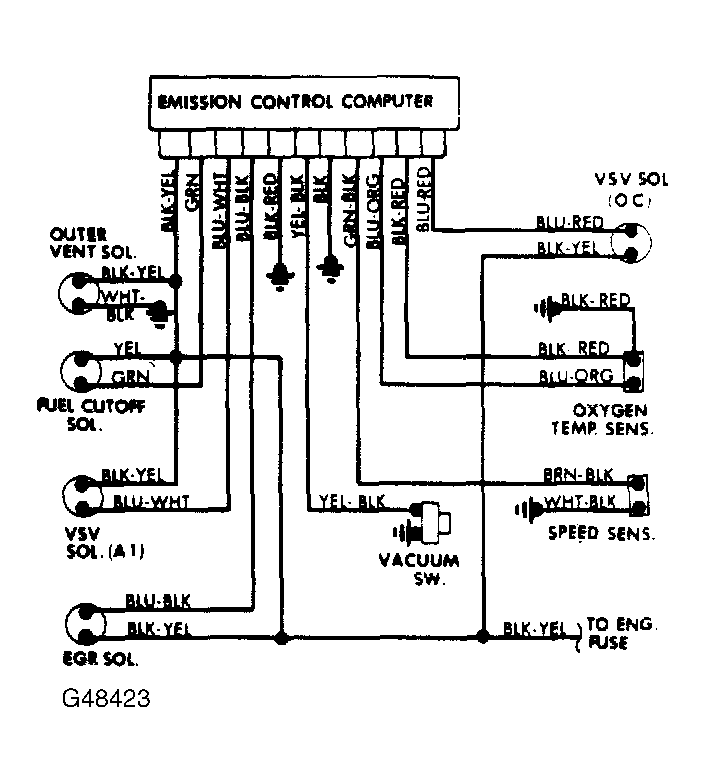

Fig 1: Land Cruiser Computer Controlled Emission System Wiring Diagram
G48423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
