Deceleration Fuel Cut System: Operation

Slow speed circuit in carburetor operates except during prolonged periods of deceleration at high engine speeds. Under these conditions, vacuum switch or computer turns off fuel cut solenoid valve and mixture is leaned out. This prevents overheating and afterburning in catalytic converter.

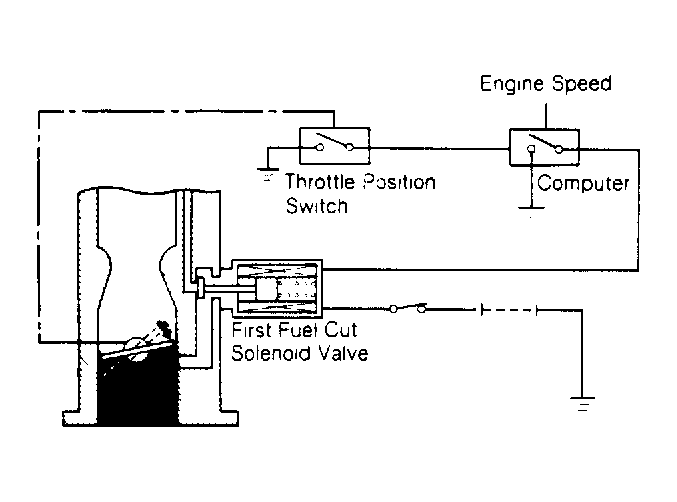

Fig 1: Deceleration Fuel Cut System (Corolla)
G38376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Deceleration Fuel Cut System (Land Cruiser)
G40517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
