Component Testing: CALIFORNIA: Notes

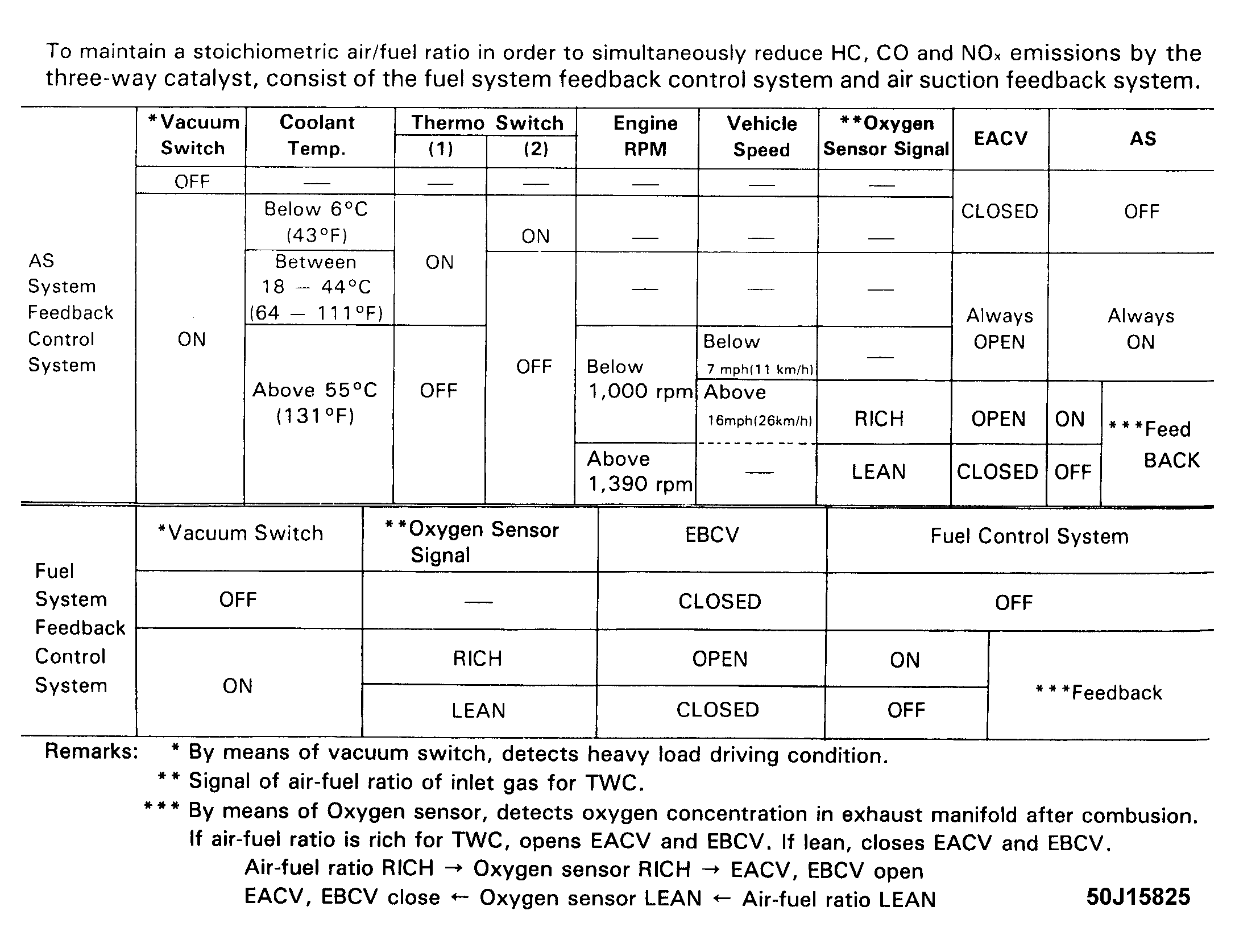

Fig 1: Emission Control System (Carb.) - California
G50J15825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
