Wiring Diagrams

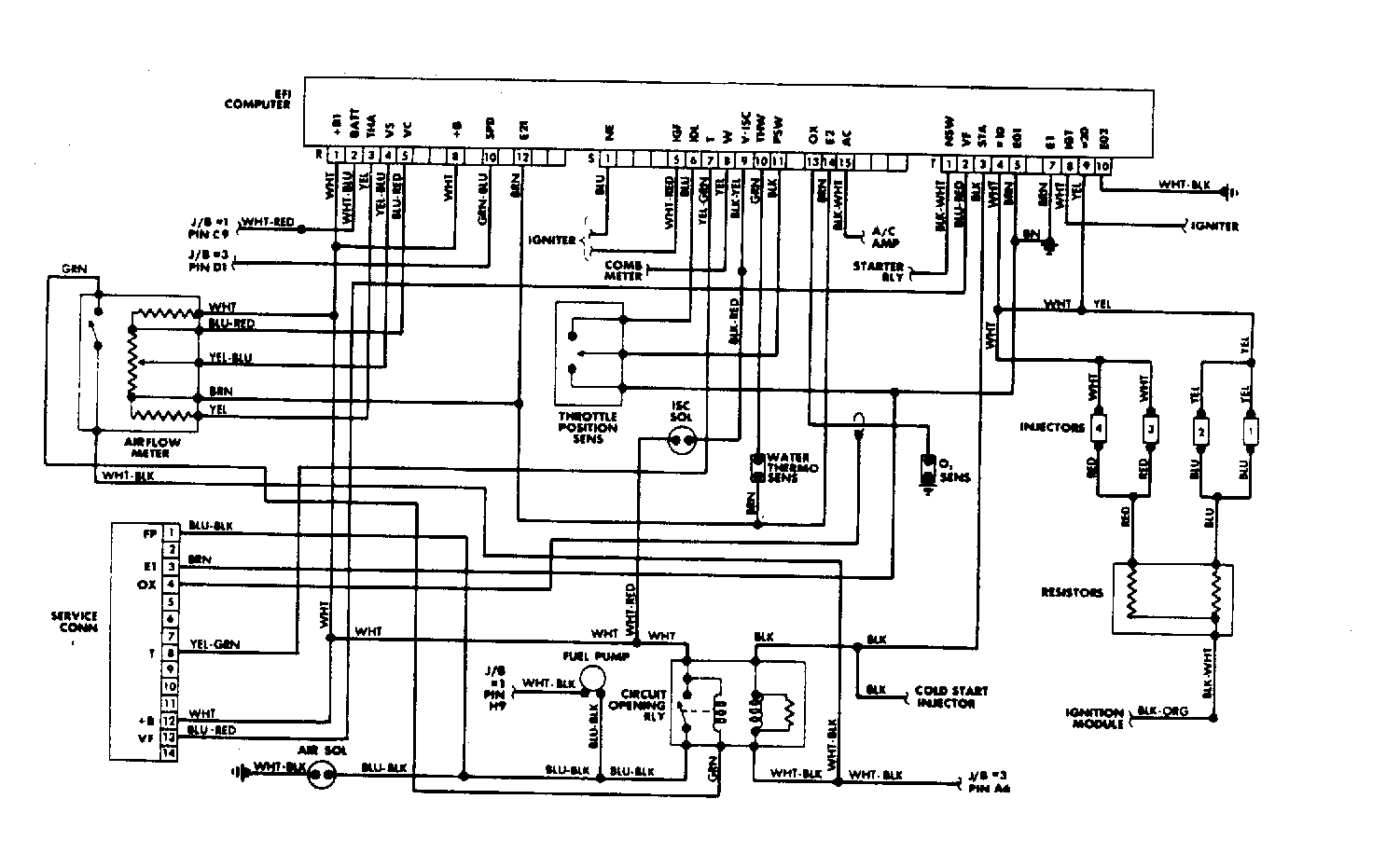

Fig 1: EFI/TCCS Wiring Diagram (Camry)

G48612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

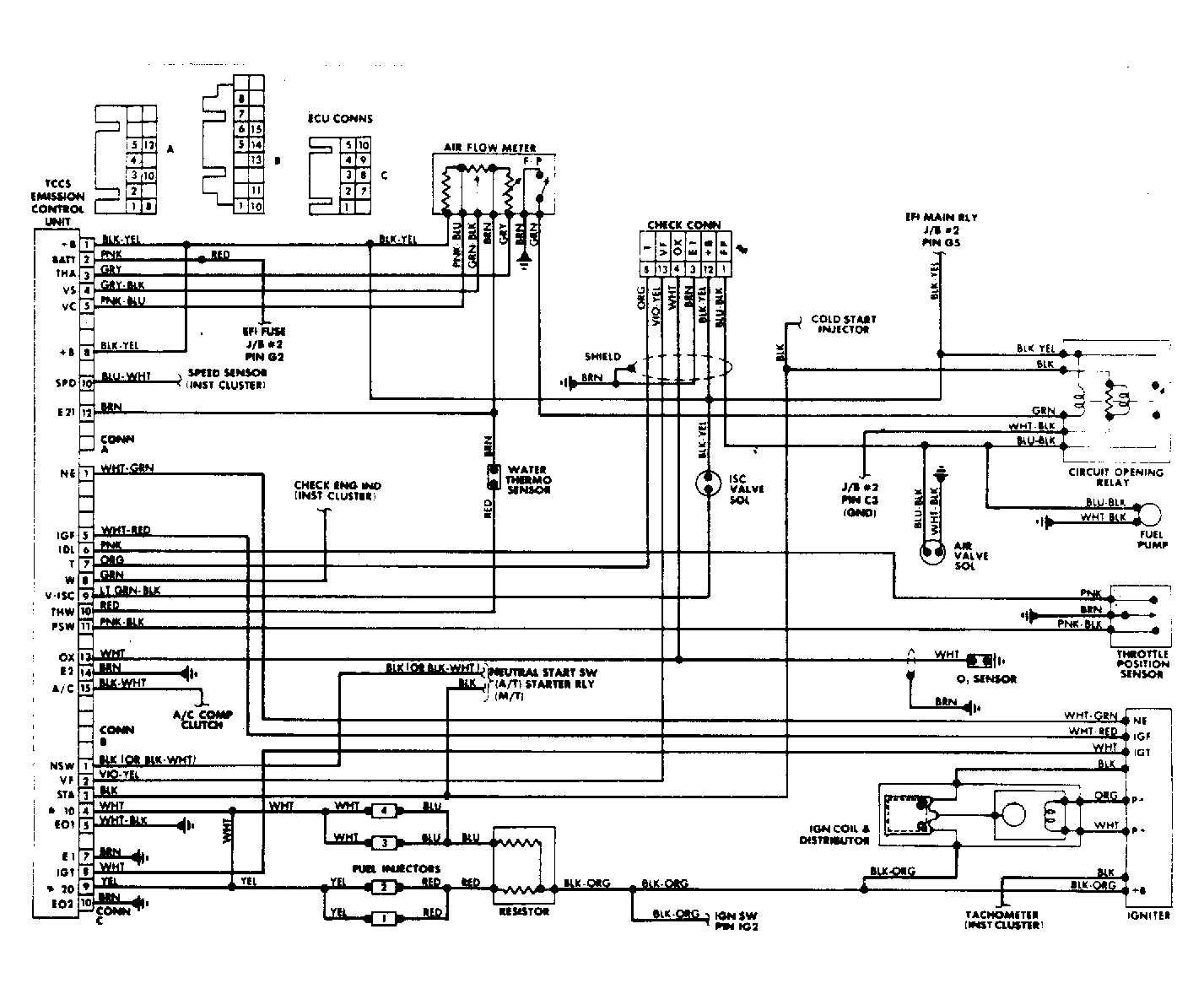

Fig 2: EFI/TCCS Wiring Diagram (Celica - 2S-E)

G48614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

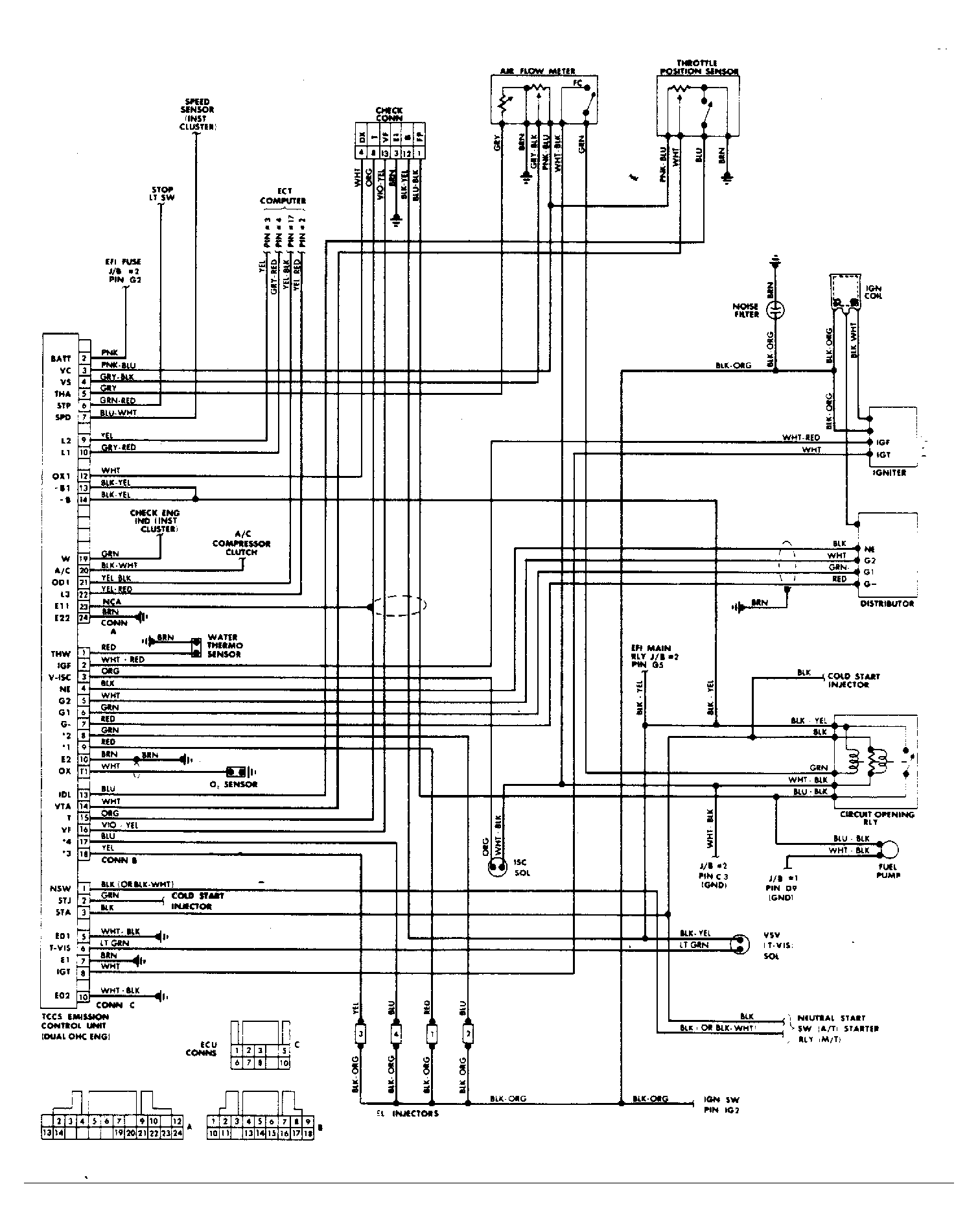

Fig 3: EFI/TCCS Wiring Diagram (Celica - 3S-GE)

G48615

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: EFI/TCCS Wiring Diagram (Corolla - RWD)

G48616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

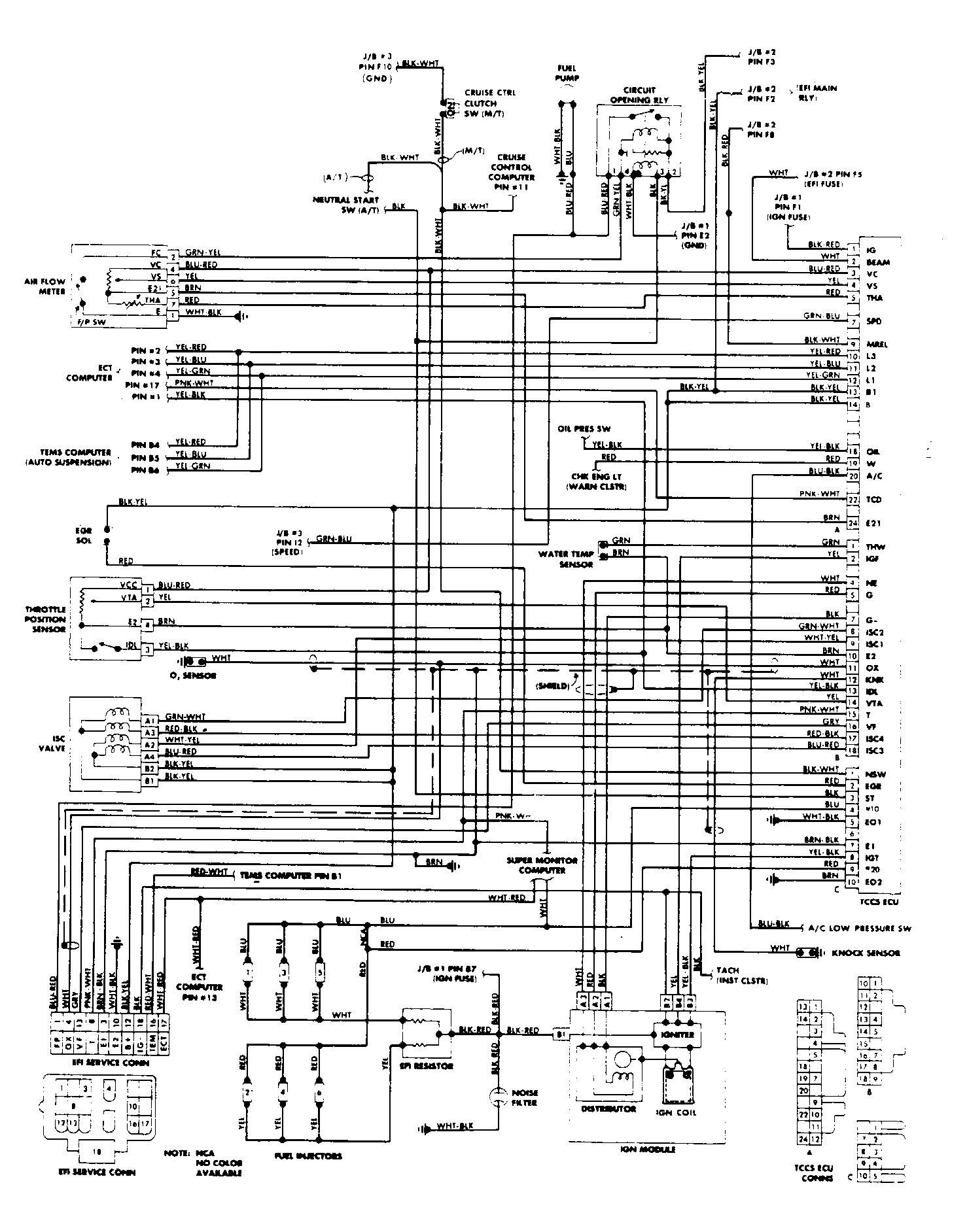

Fig 5: EFI/TCCS Wiring Diagram (Cressida)

G48617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: EFI/TCCS Wiring Diagram (MR2)

G48618

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: EFI/TCCS Wiring Diagram (Pickup/4-Runner)

G48619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

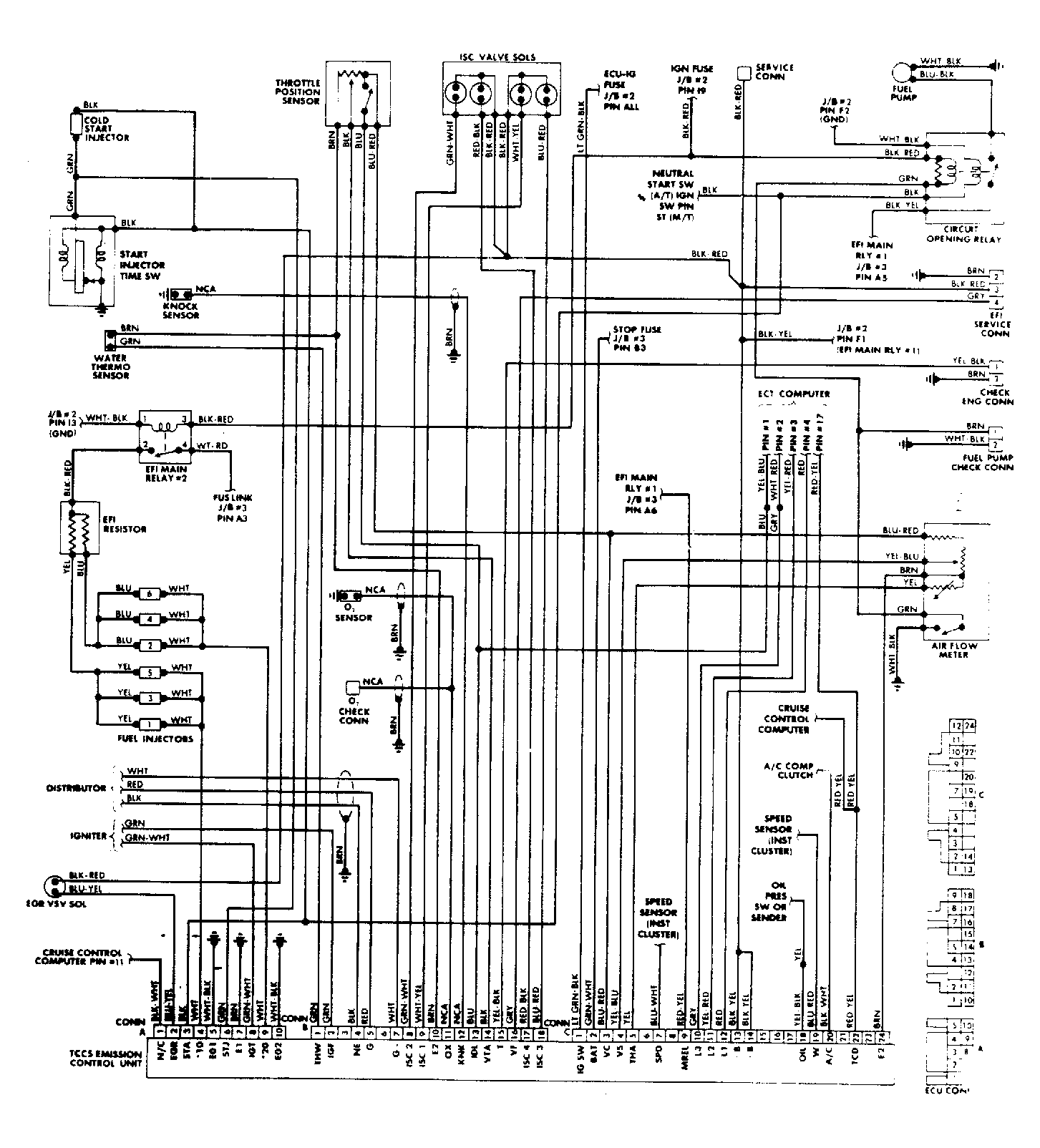

Fig 8: EFI/TCCS Wiring Diagram (1986 Supra)

G48620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

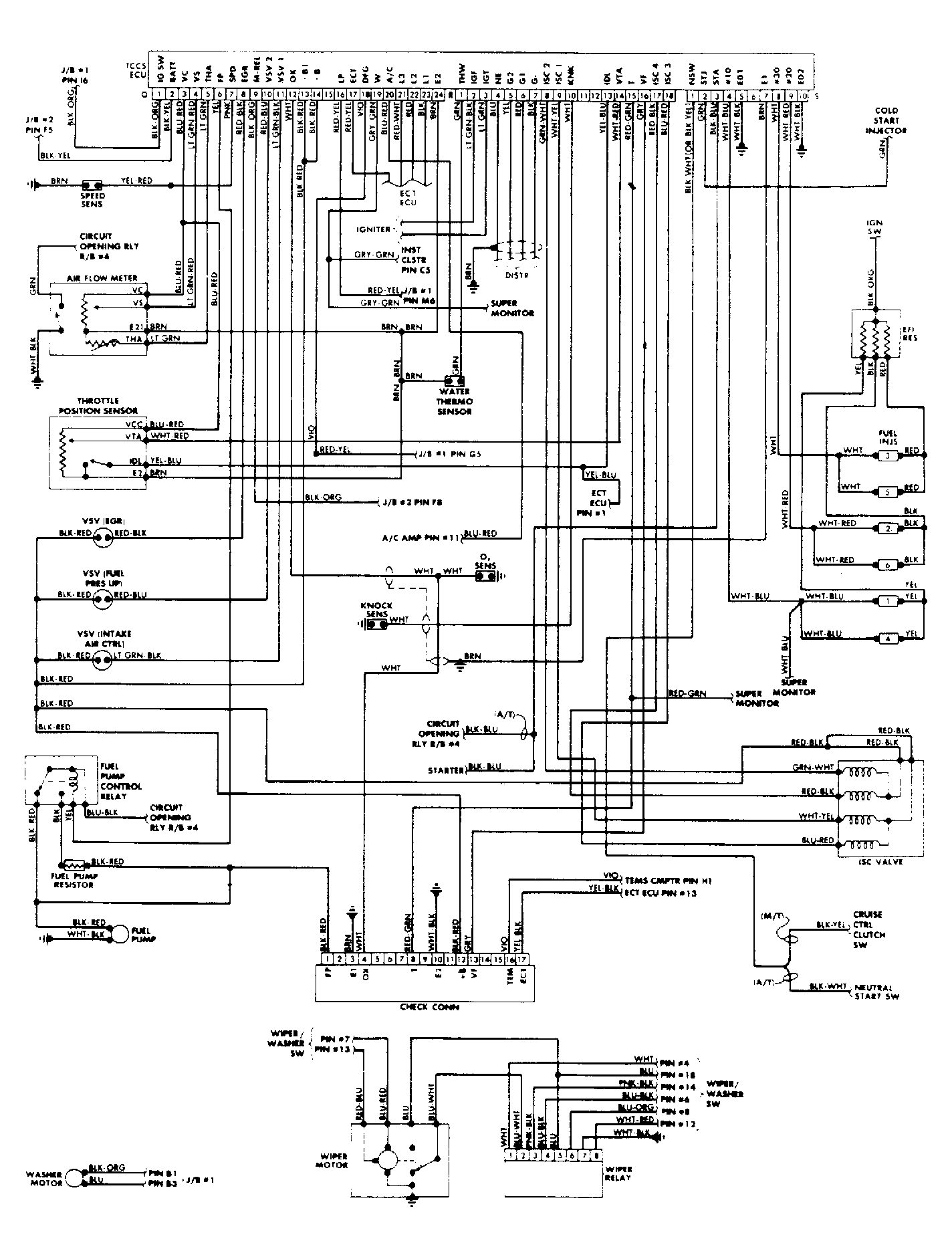

Fig 9: EFI/TCCS Wiring Diagram (1986 1/2 Supra)

G48622

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: EFI/TCCS Wiring Diagram (Van)

G48621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
