"Check Engine" Light "Off"
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
"Check Engine" Light "Off"

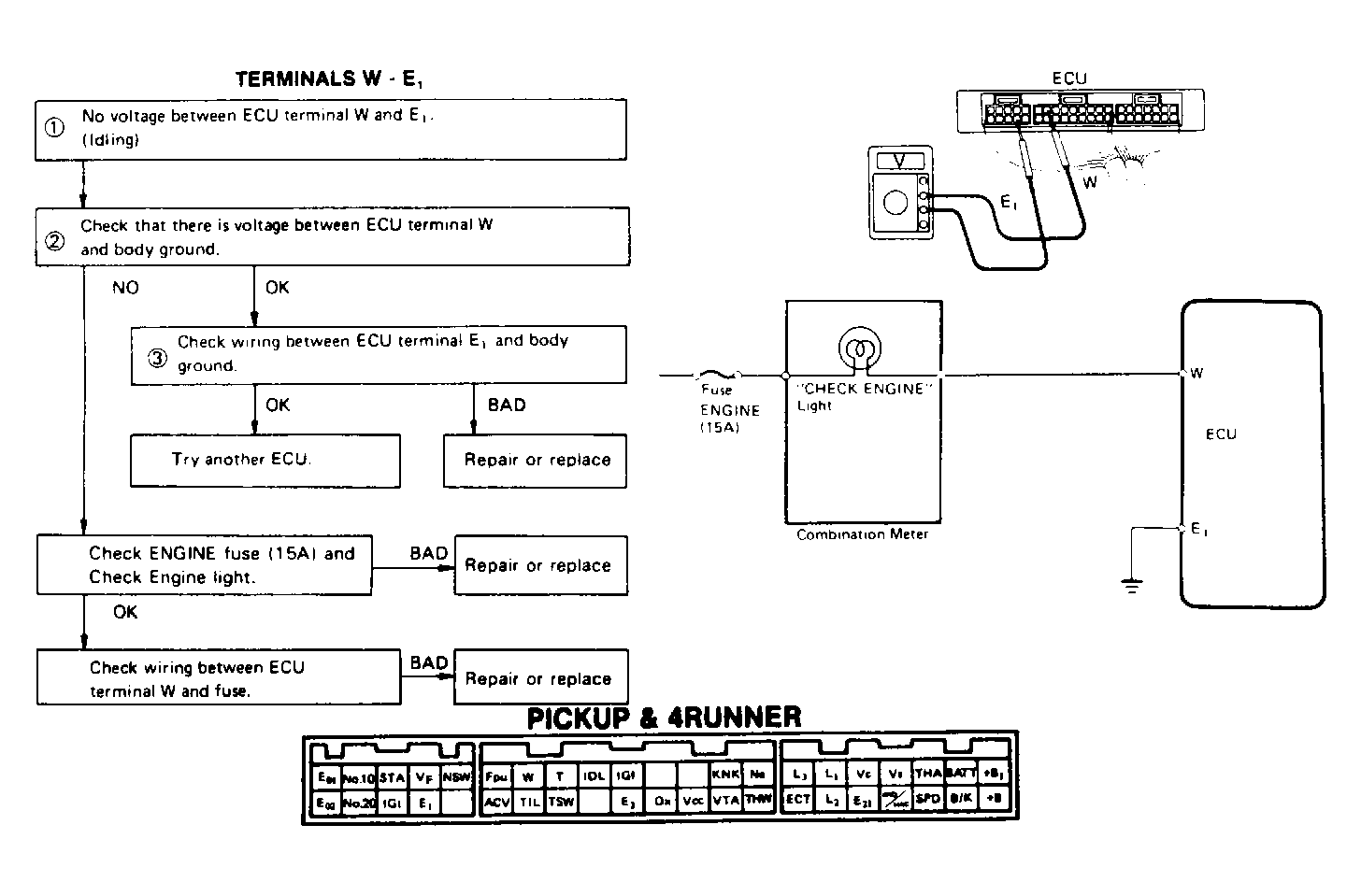

Fig 1: Terminals W - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
