Trouble Code 4 - Water Temperature Sensor

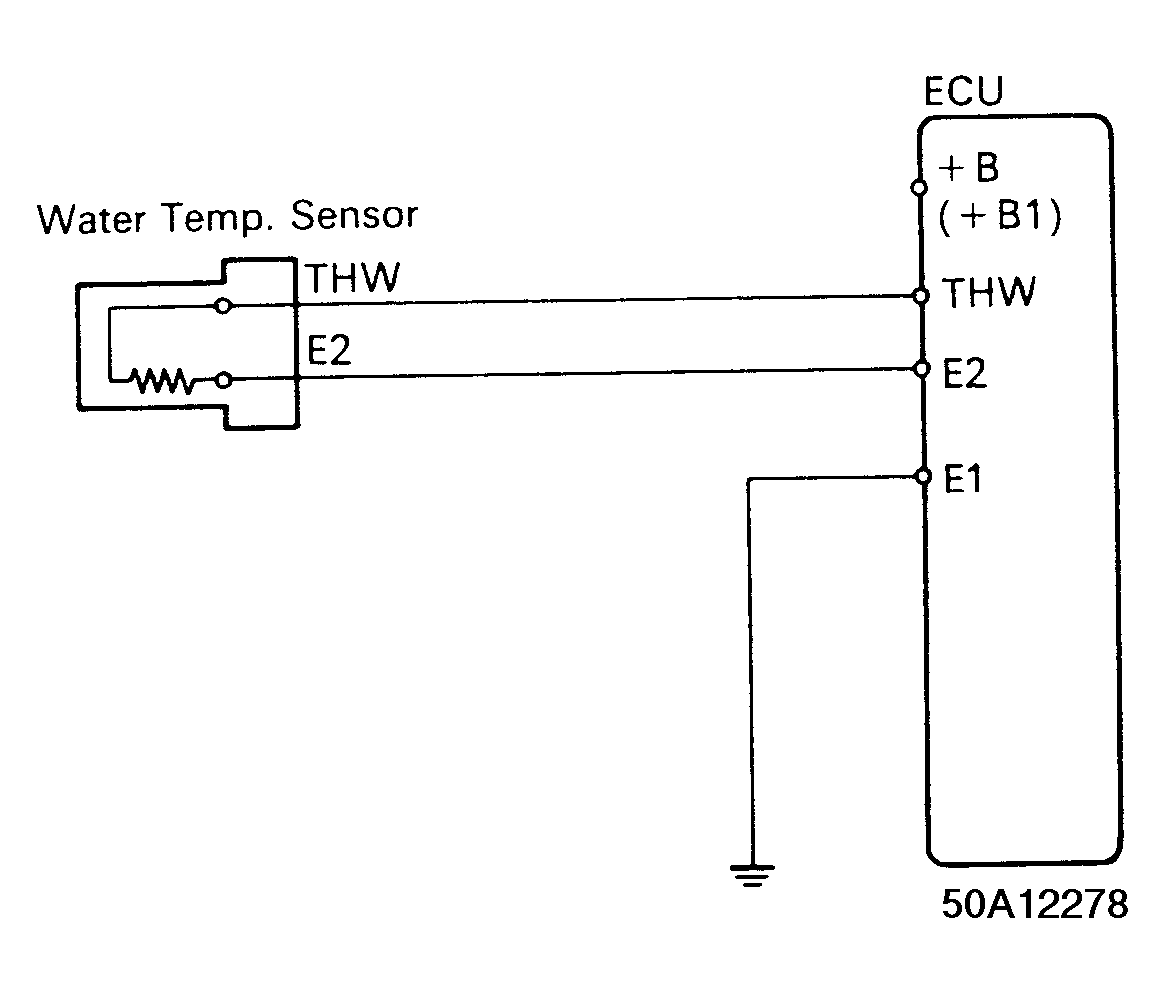

Fig 1: Water Temp. Sensor Signal, Schematic
G50A12278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

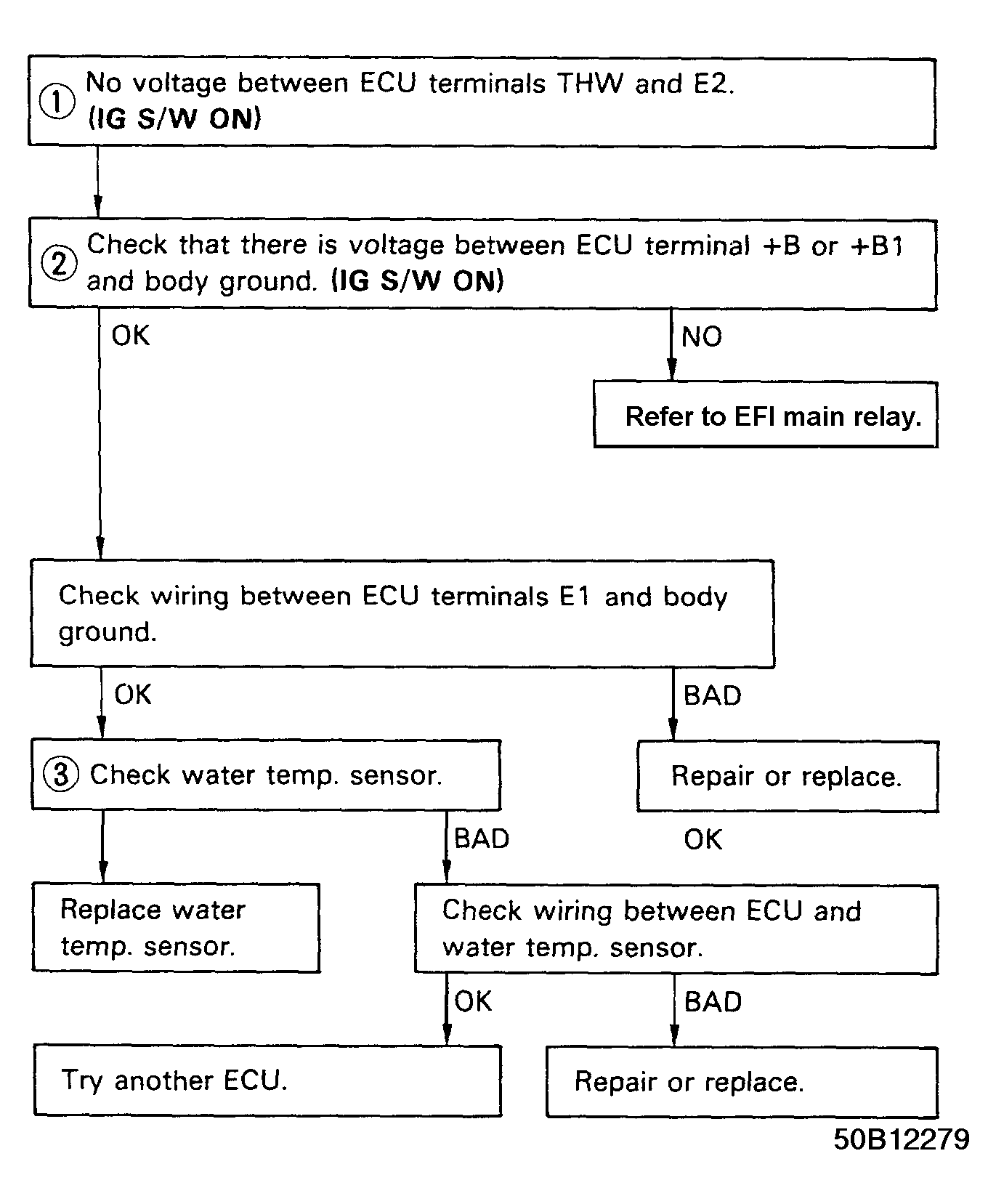

Fig 2: Water Temp. Sensor Signal, Flow Chart
G50B12279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

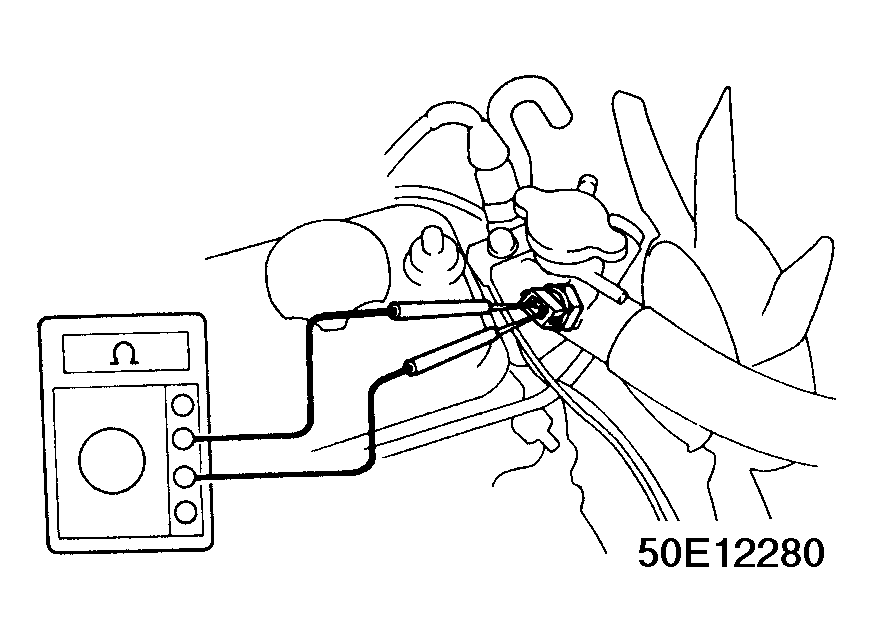

Fig 3: Testing Water Temp. Sensor Signal
G50E12280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
