Back Door Window Lock Switch

Inspect the switch continuity between terminals.

CONTROL SWITCH CONTINUITY INSPECTION (1)

Switch Position Terminal No.
Free 2 & 4
(1) If continuity is not as specified, replace the switch.

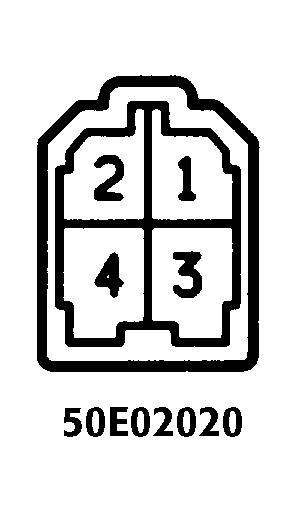

Fig 1: Back Door Window Lock Switch
G50E02020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
