Backdoor Unlock Warning Switch: Inspection

Check that there is continuity when the switch is pushed (back door unlock). Check that there is no continuity when the switch is free (back door locked). If continuity is not as specified, replace the switch.

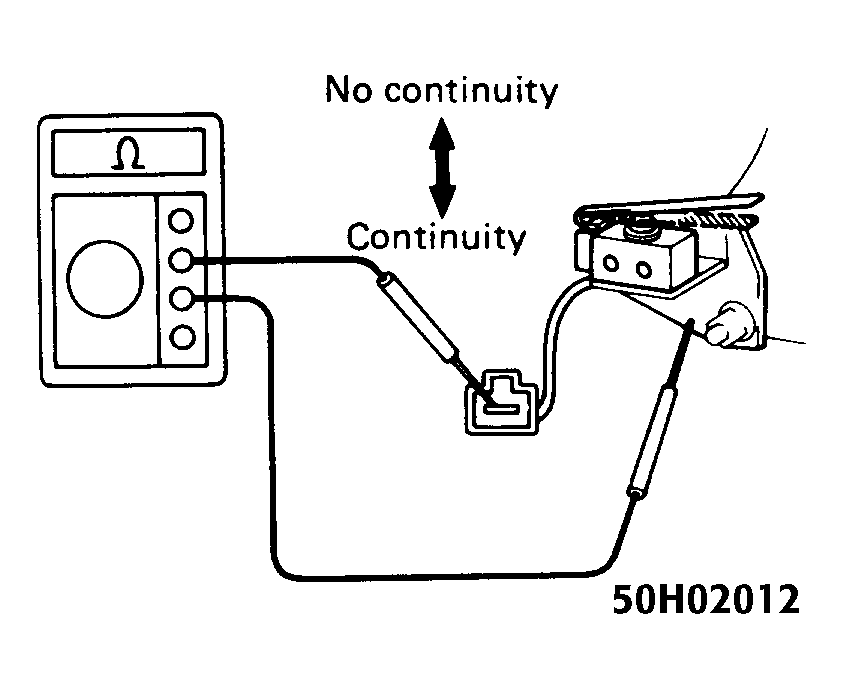

Fig 1: Backdoor Unlock Warning (Switch Continuity)
G50H02012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
