Cover Top Switch

Inspect the switch continuity between terminals.

COVER TOP SWITCH CONTINUITY INSPECTION (1)

Switch Position Terminal No.
Free 1 & 2
Pushed 2 & 3
(1) If continuity is not as specified, replace the switch.

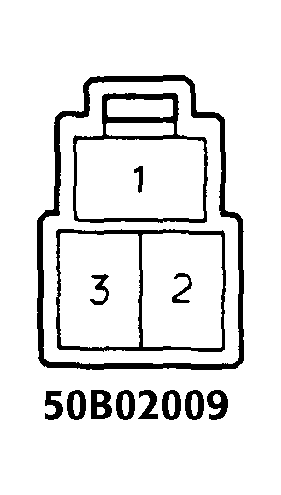

Fig 1: Cover Top Switch Terminals
G50B02009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
