Door Lock Control Switch

Inspect the switch continuity between terminals.

DOOR LOCK CONTROL SWITCH INSPECTION (1)

Switch Position Arm Rest Type Terminal Door Trim Type Terminal
LOCK 8 & 4 7 & 4
OFF N/A N/A
UNLOCK 7 & 4 6 & 4
(1) If continuity is not as specified, replace the switch.

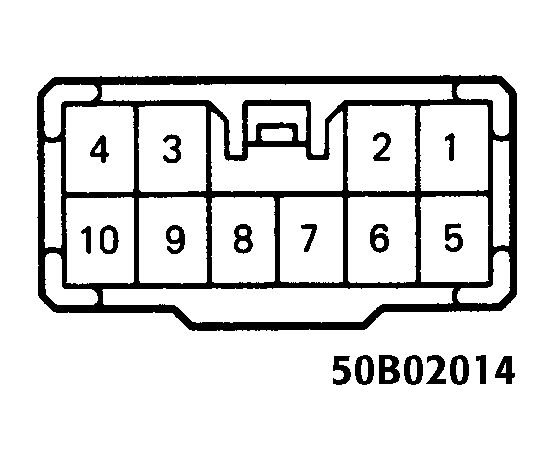

Fig 1: Door Lock & Control Switch (Arm Rest Type)
G50B02014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

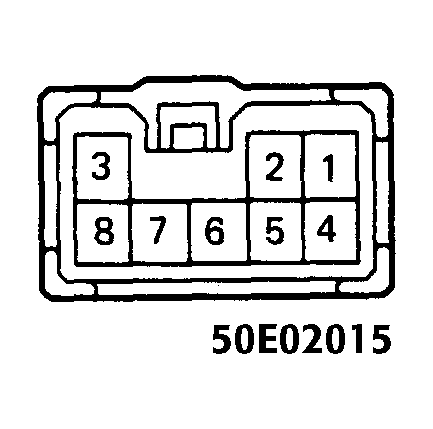

Fig 2: Door Lock & Control Switch(Door Trim Type)
G50E02015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
