Door Lock Detection Switch

Inspect the switch continuity between terminals.

LOCK DETECTION SW. CONTINUITY INSPECTION ⁽¹⁾

Switch Position

Terminal No.

Unlock (Back Door Opened)

1 & 2

Locked (Back Door Closed)

1 & 3

⁽¹⁾	If continuity is not as specified, replace the switch.

NOTE: When the locked position, lock the left side back door lock assembly by push into the screwdriver or such to the lock assembly.

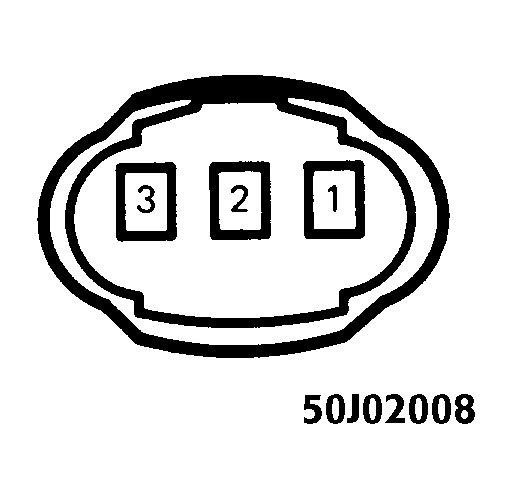

Fig 1: Door Lock Detection Switch Terminals
