Power Window & Door Lock Control Relay: Overview

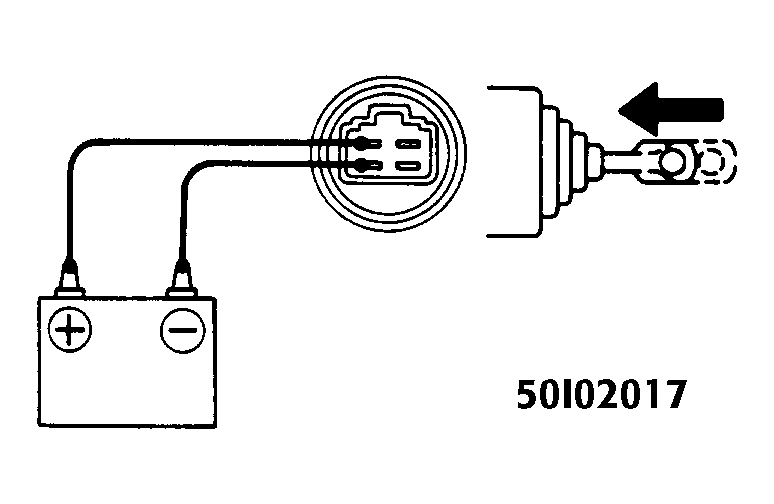

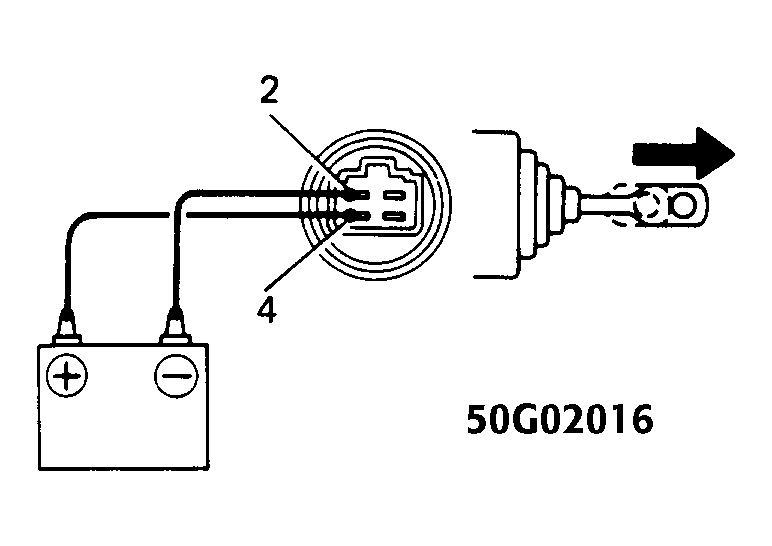

Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 2, and check that the solenoid operates unlock direction. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 4, and check that the solenoid operates lock direction. If operation is not as specified, replace the solenoid.
