Power Window Door Switch

Inspect the switch continuity between terminals.

POWER WINDOW DOOR SWITCH INSPECTION ⁽¹⁾

Switch Position

Arm Rest Type Terminal

Door Trim Type Terminal

UP

5 & 1, 4 & 3

2 & 1, 5 & 4

OFF

4 & 3, 1 & 2

5 & 4, 1 & 3

DOWN

5 & 4, 1 & 2

2 & 5, 1 & 3

⁽¹⁾	If continuity is not as specified, replace the switch.

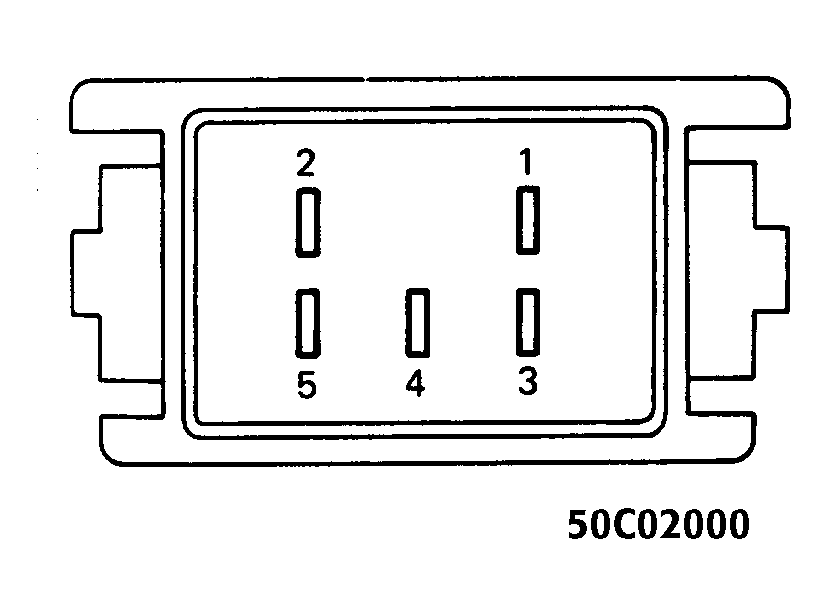

Fig 1: Power Window Door Switch (Arm Rest Type)

G50C02000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

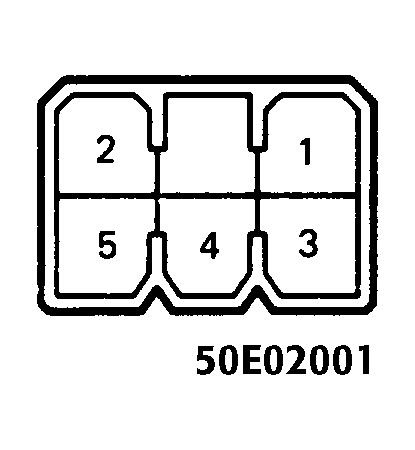

Fig 2: Power Window Door Switch (Door Trim Type)

G50E02001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
