Power Window Master Switch

Inspect the switch continuity between terminals.

POWER WINDOW MASTER SWITCH INSPECTION ⁽¹⁾

Switch Position Type Terminal

Arm Rest Type Terminal

Door Trim Type Terminal

Switch Side

Window Unlock

1 & 10, 4 & 5

1 & 3, 4 & 8

Driver's Side

1 & 9, 4 & 6

1 & 2, 4 & 5

Passenger's Side

Off

10, 4 & 5

3, 4 & 8

Driver' Side

Off

9, 4 & 6

2, 4 & 5

Passenger's Side

Down

10 & 4, 1 & 5

3 & 4, 1 & 8

Driver' Side

Down

9 & 4, 1 & 6

2 & 4, 1 & 5

Passenger's Side

Window Lock

1 & 10, 4 & 5

1 & 3, 4 & 8

Driver's Side

1 & 9

1 & 2

Passenger's Side

Off

10, 4 & 5

3, 4 & 8

Driver' Side

Off

9 & 6

2 & 5

Passenger's Side

Down

10 & 4, 1 & 5

3 & 4, 1 & 8

Driver' Side

Down

1 & 6

1 & 5

Passenger's Side

⁽¹⁾	If continuity is not as specified, replace the switch.

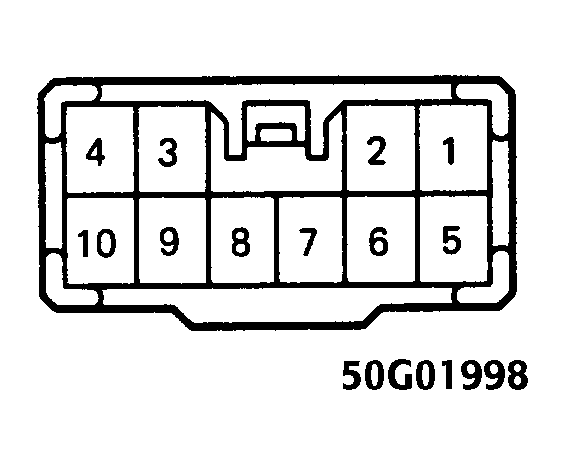

Fig 1: Power Window Master Switch (Arm Rest Type)

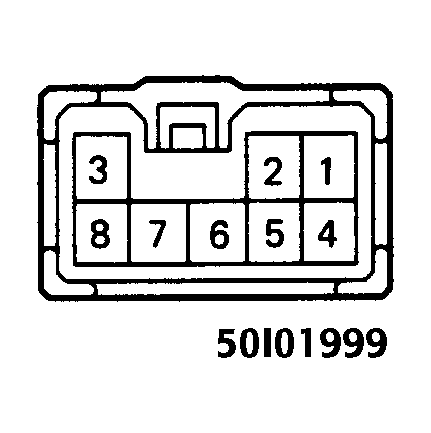

Fig 2: Power Window Master Switch (Door Trim Type)
