Power Window Regulator Switch

Inspect the switch continuity between terminals.

REGULATOR SWITCH CONTINUITY INSPECTION (1)

Switch Position Terminal No.
Up 2 & 5, 3 & 4
Off 3 & 4
Down 1 & 2, 3 & 4
(1) If continuity is not as specified, replace the switch.

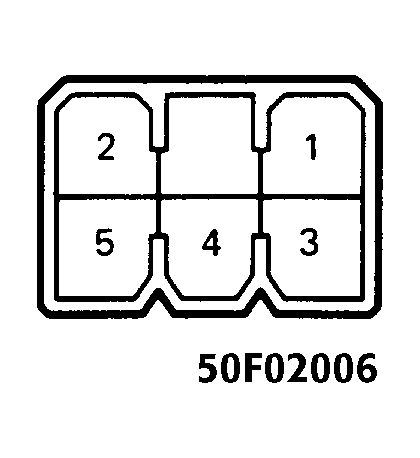

Fig 1: Power Window Regulator Switch Terminal
G50F02006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
