Right & Left Mirror Operation Inspection

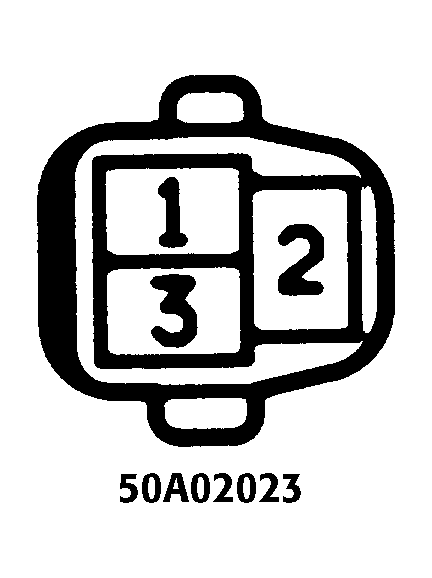

Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1. Check that the mirror moves upward. Connect the leads in reverse. Check that the mirror moves to downward. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1. Check that the mirror moves to the left. Connect the leads in reverse. Check that the mirror moves to the right. If operation is not as specified, replace the mirror.
