Control Units
CONTROL UNITS LOCATION
Component
Location
Cruise Control Computer
Behind Left Kick Panel.

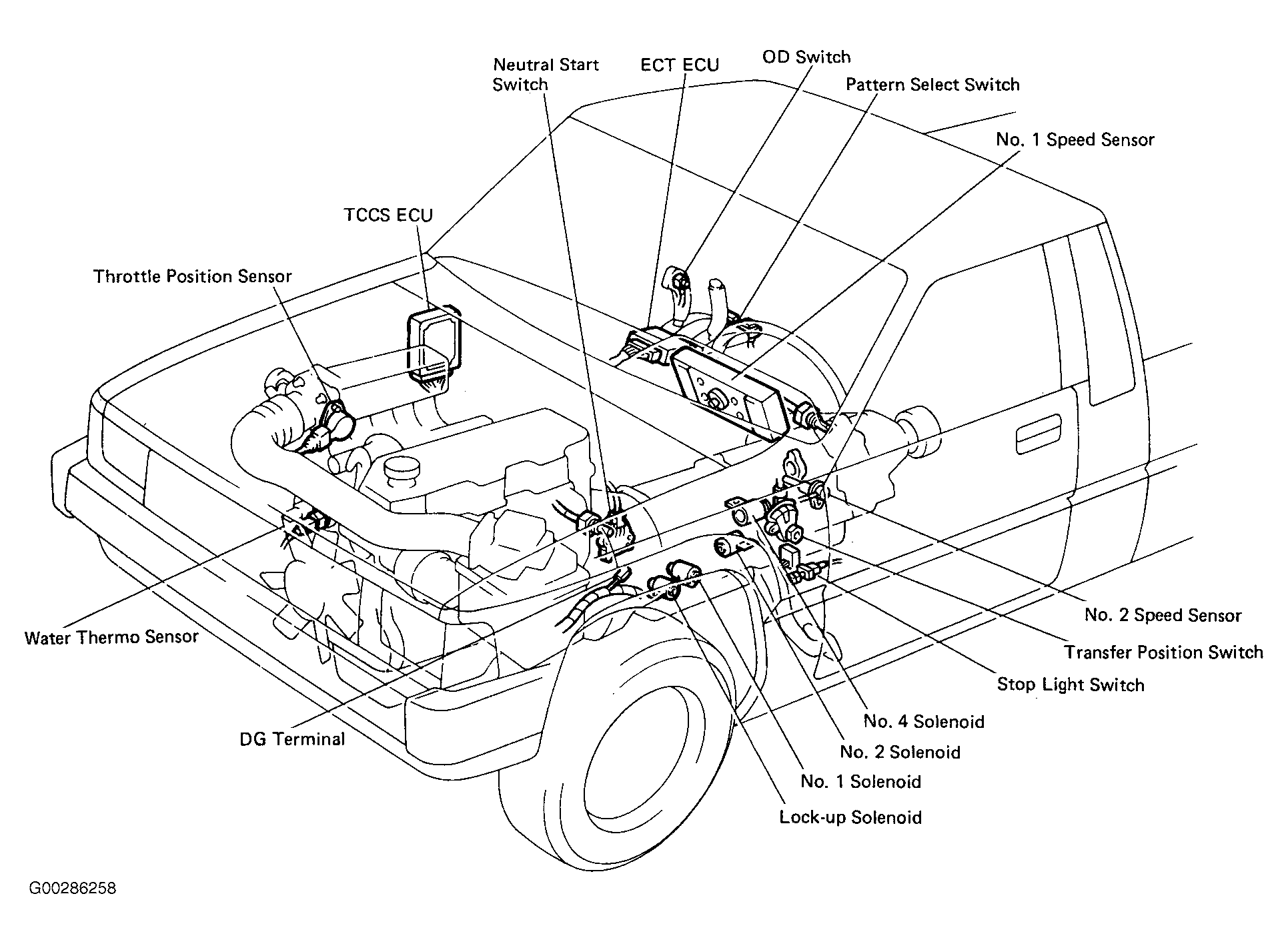

Electronic Controlled Transmission (ECT) Electronic Control Unit (ECU)
Under Center Console. See
Figure
.

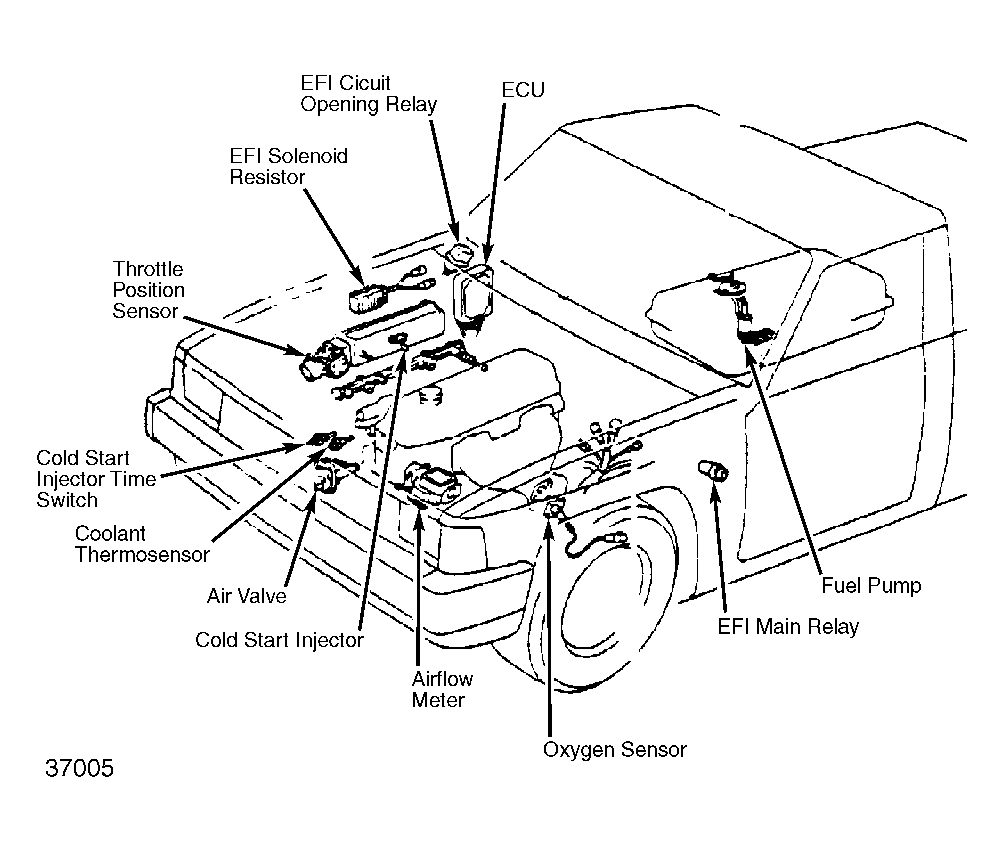

Electronic Control Unit (ECU)
Behind Right Kick Panel. See
Figure
.
