Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | On Left Side Of Blower Housing. |

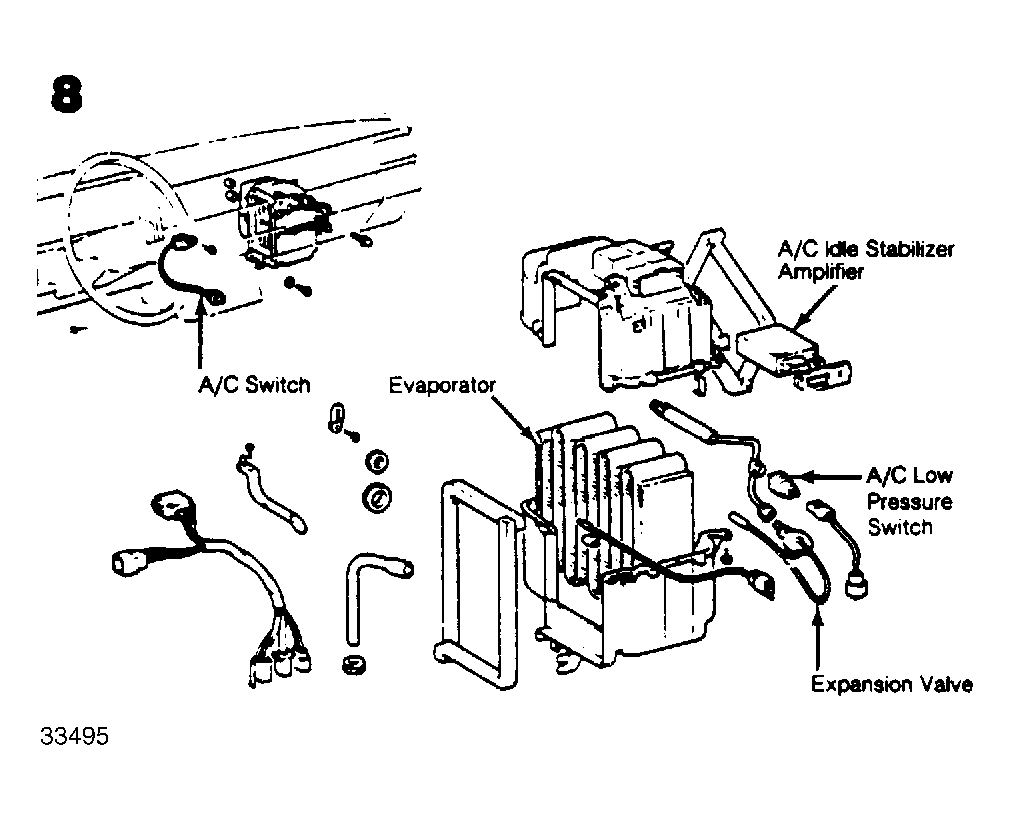

| A/C Amplifier | On Evaporator Housing. See Figure. |
| Cold Mixture Heater (W/Carbureter) | Under Intake Manifold. |
| Cruise Control Actuator | On Left Side Of Engine Compartment. |
| Diagnostic Connector | Behind Fuse/Relay Block No. 2. |
| EFI Solenoid Resistor | On Right Side Inner Fender. See Figure. |
| Ignition Igniter | On Side Of Ignition Coil. |
