Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| A/C Switch | Behind center of dash. See Figure. |
| A/C Low Pressure Switch | Near Rear Left Corner Of Evaporator Housing. See Figure. |
| Back-Up Light Switch | On Right Side Of Transmission. |

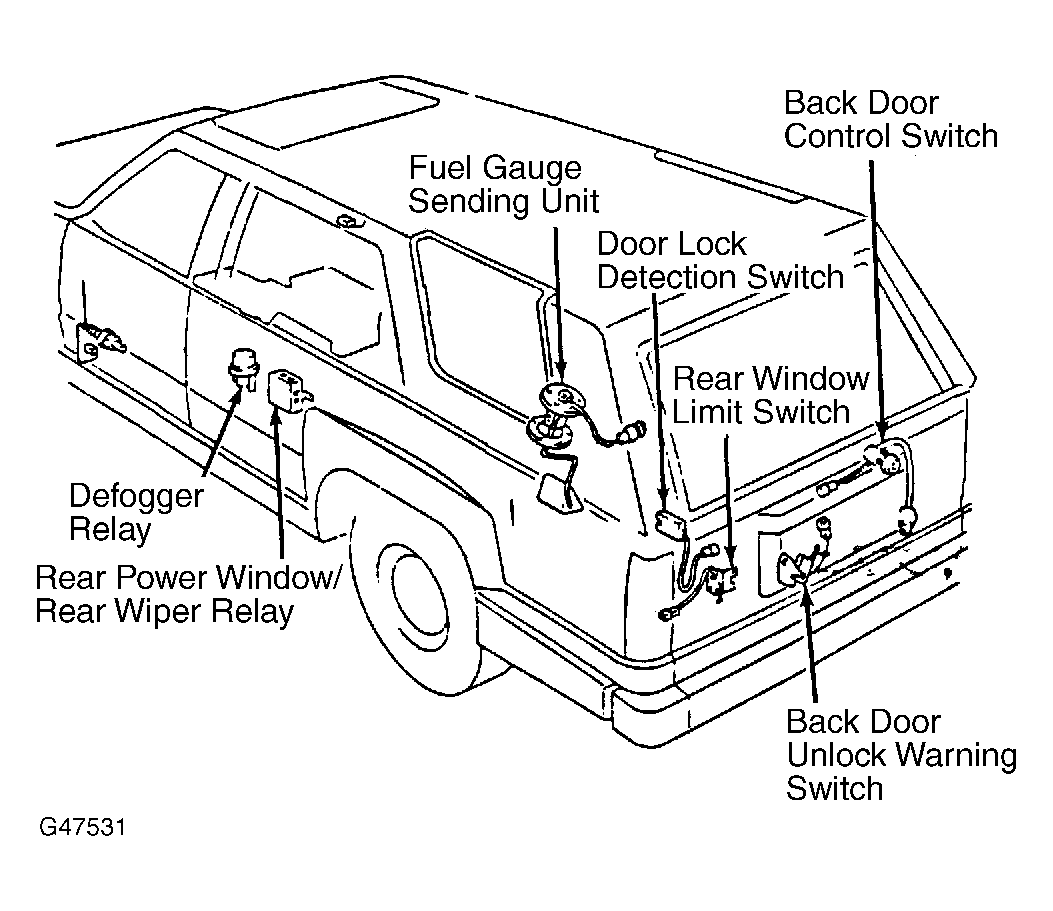

| Back Door Control Switch | In Tailgate. See Figure. |
| Back Door Unlock Warning Switch | In Tailgate. See Figure. |
| Brake/Stoplight Switch | On Bracket, Above Brake Pedal. See Figure. |
| Cold Start Injector Time Switch | Facing Forward, In Upper Coolant Hose Flange. See Figure. |
| Coolant Thermoswitch | On Right Side Of Engine, In Coolant Outlet Flange. |
| Cruise Control Clutch Switch | On Bracket, Above Clutch Pedal. |
| Door Lock Detection Switch (4Runner) | Behind Rear Left Quarter Panel Trim. See Figure. |
| Low Brake Pressure Switch | In Brake Proportioning Valve. |
| Neutral Start Switch (A/T) | On Right Side Of Transmission. See Figure. |
| Oil Pressure Switch | On Front Left Side Of Engine Block. See Figure. |
| Parking Brake Switch | Under Instrument Panel, At Rear Of Brake Lever Mounting Bracket. |
| Rear Window Limit Switch (4Runner) | In Left Side Of Tailgate. See Figure. |
| 4WD Indicator Switch | On Right Side Of Transfer Case. See Figure. |
