Wiring Diagrams

Fig 1: EFI/TCCS Wiring Diagram (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

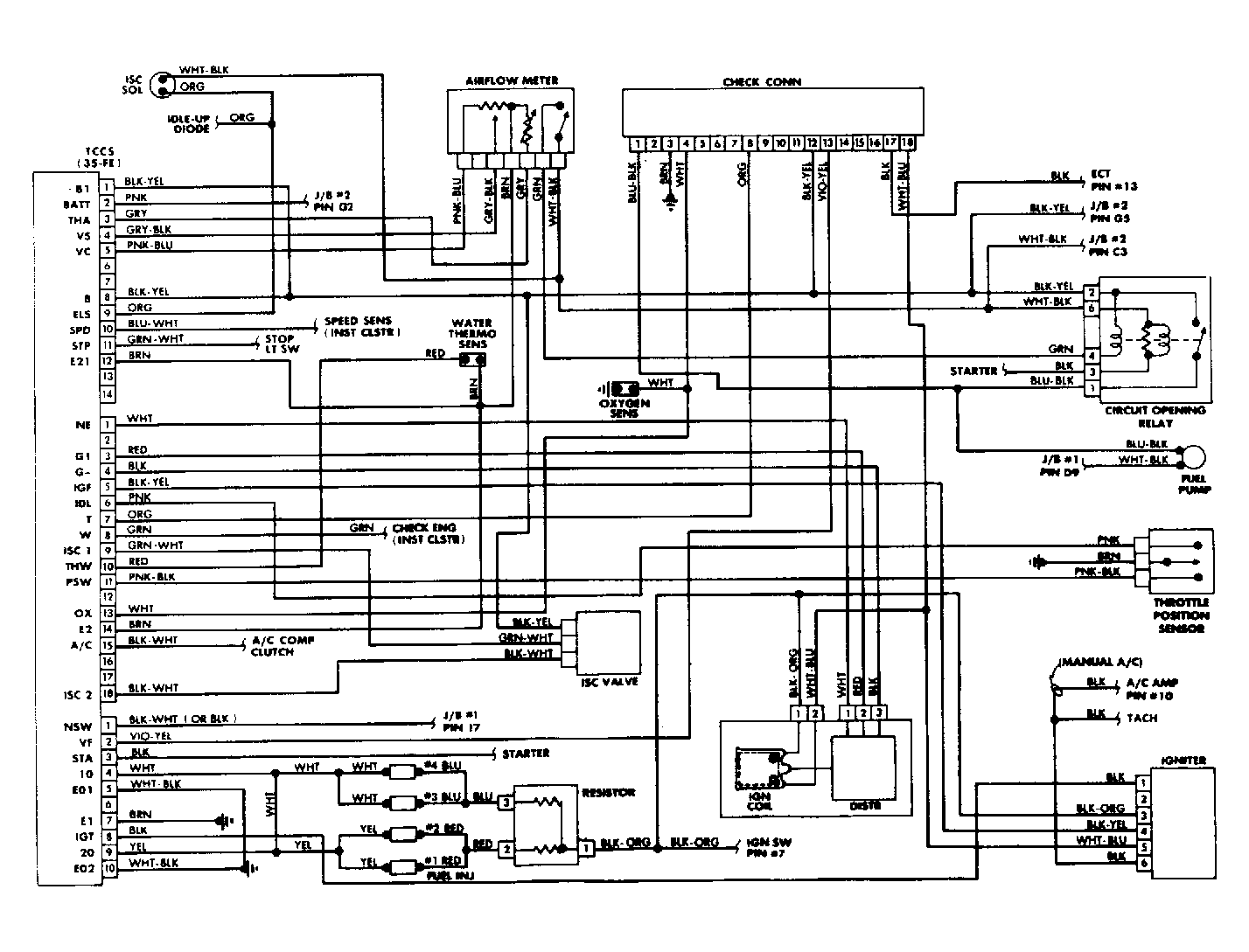

Fig 2: EFI/TCCS Wiring Diagram (Celica - W/3S-FE Engine)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: EFI/TCCS Wiring Diagram (Celica - W/3S-GE Engine)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

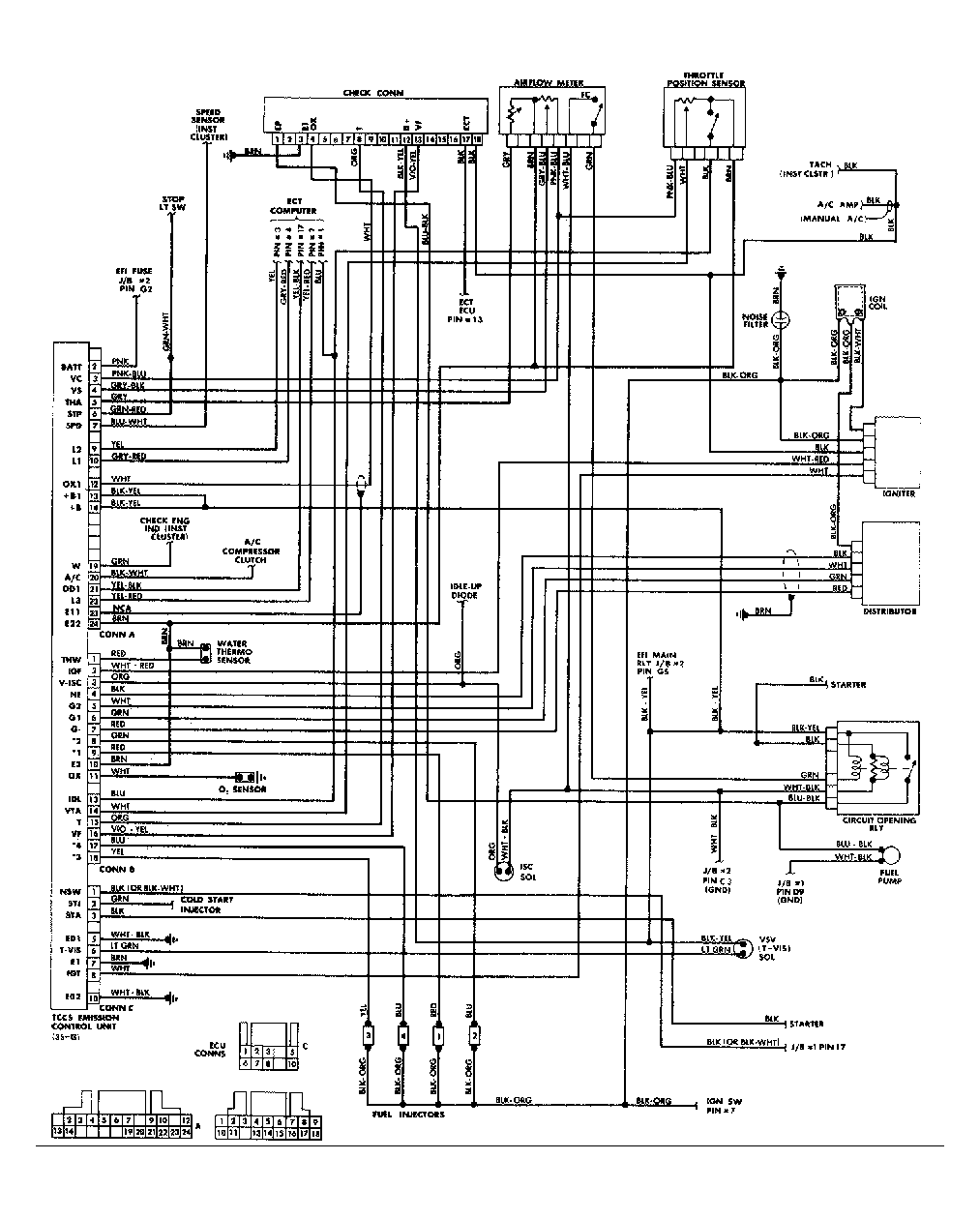

Fig 4: EFI/TCCS Wiring Diagram (Corolla FWD - W/4A-GE Engine)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: EFI/TCCS Wiring Diagram (Corolla RWD - W/4A-GE Engine)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

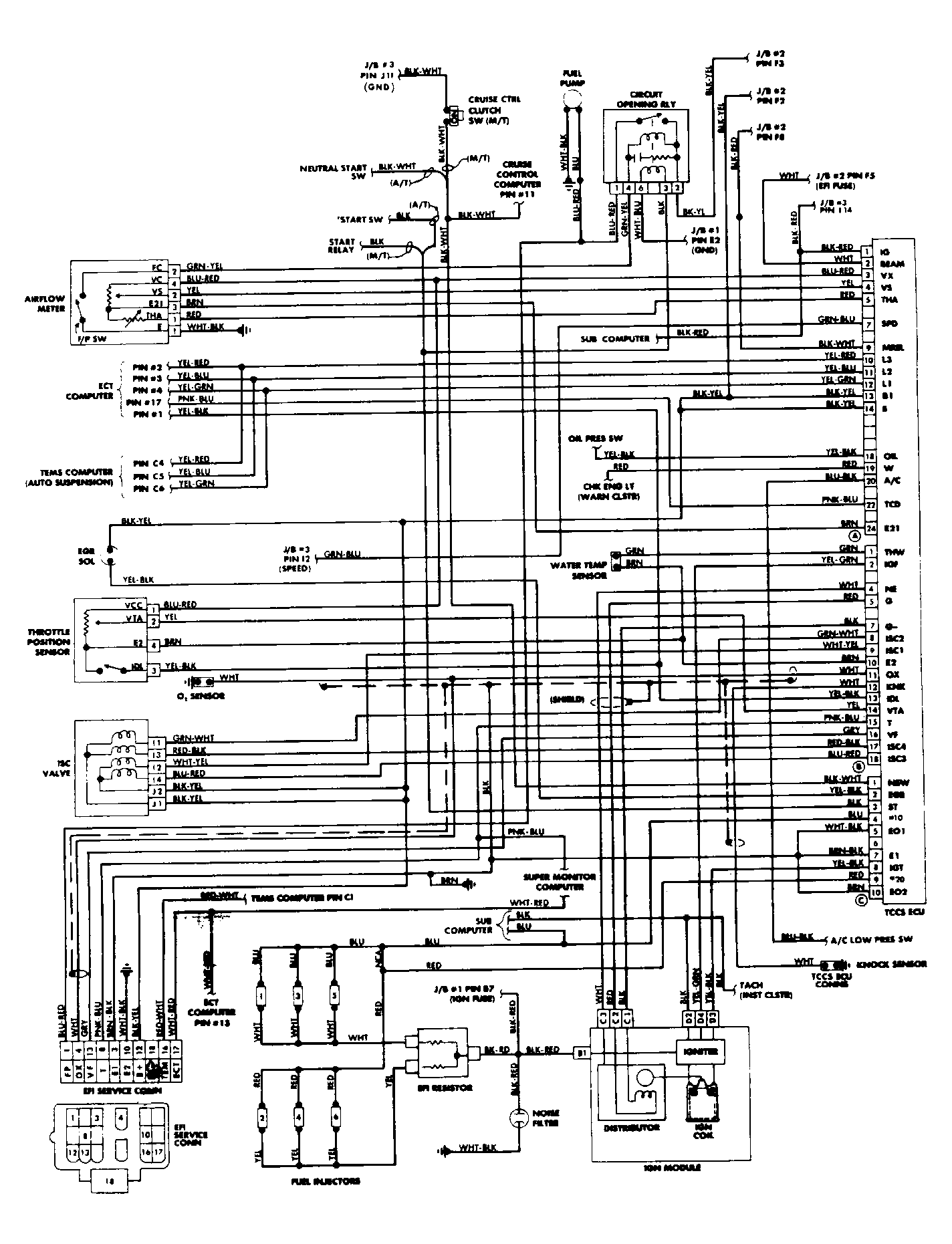

Fig 6: EFI/TCCS Wiring Diagram (Cressida)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: EFI/TCCS Wiring Diagram (MR2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: EFI/TCCS Wiring Diagram (Pickup & 4Runner)

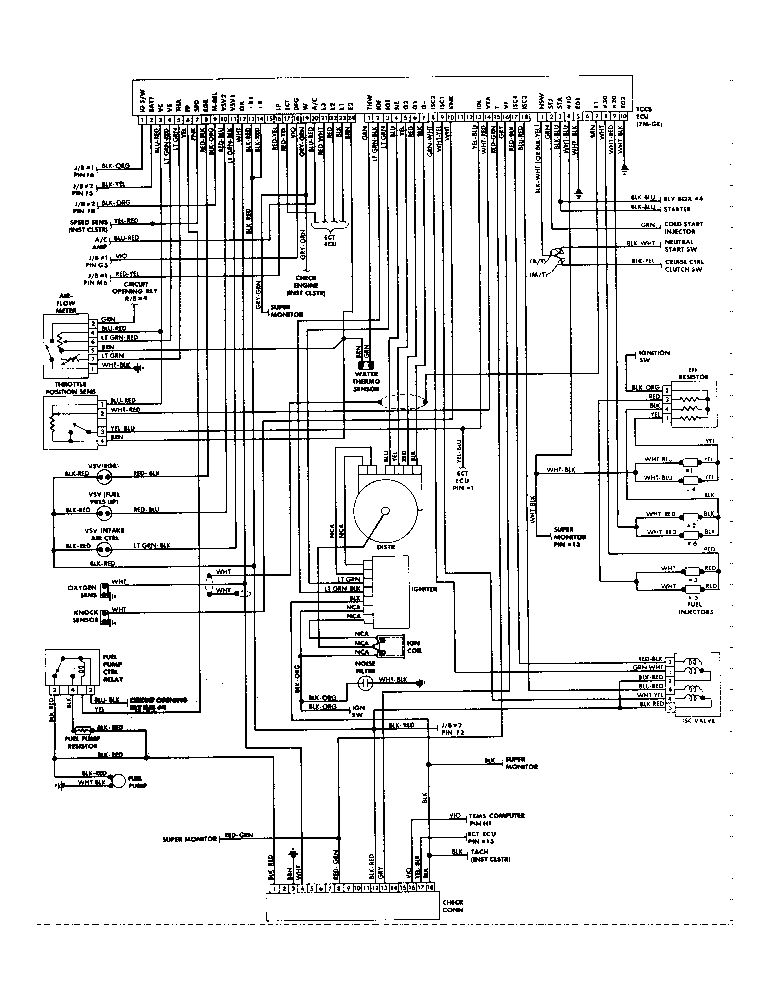

Fig 9: EFI/TCCS Wiring Diagram (Supra - W/7M-GE)

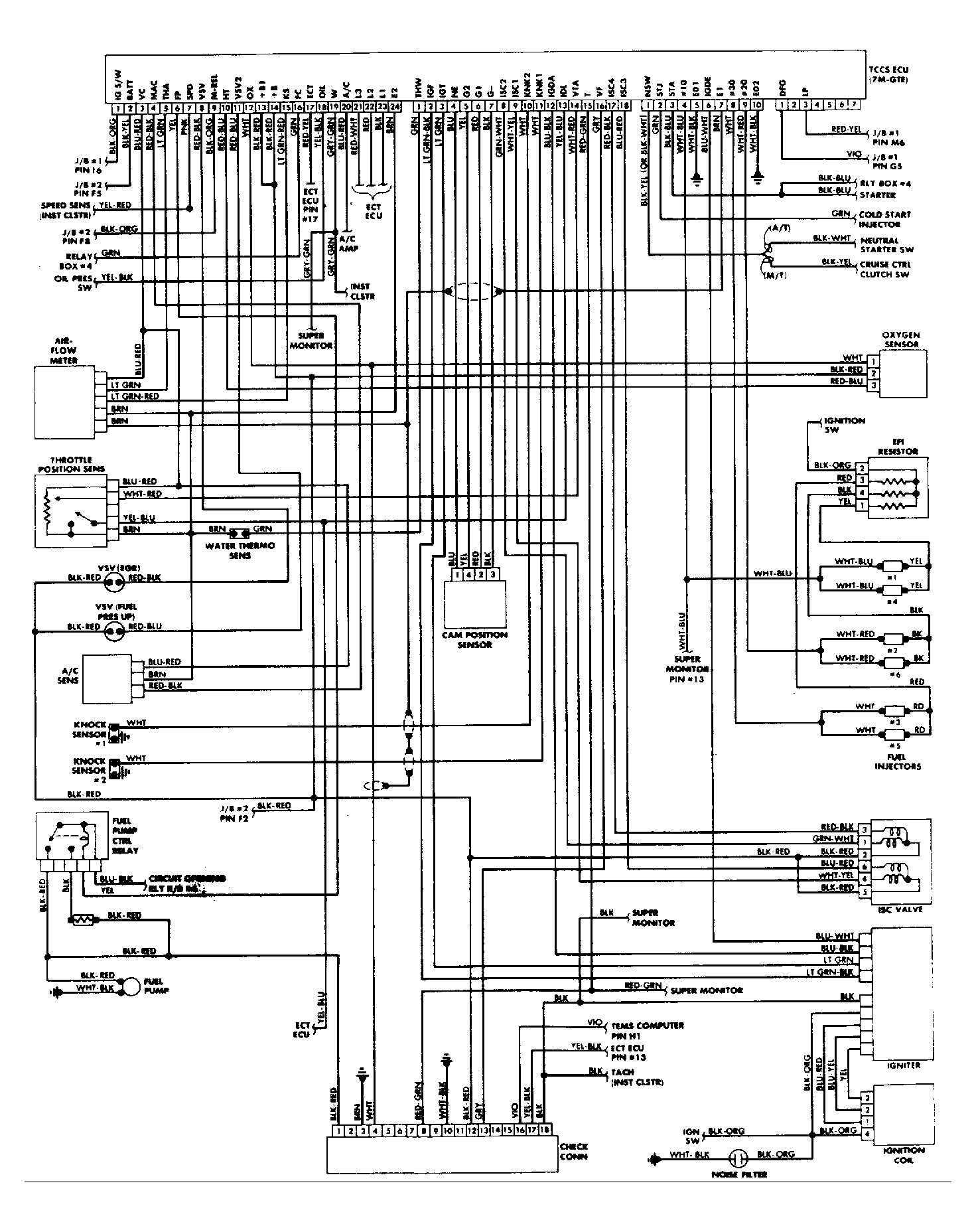

Fig 10: EFI/TCCS Wiring Diagram (Supra - W/7M-GTE Engine)

Fig 11: EFI/TCCS Wiring Diagram (Van)
