Main Relay & Circuit

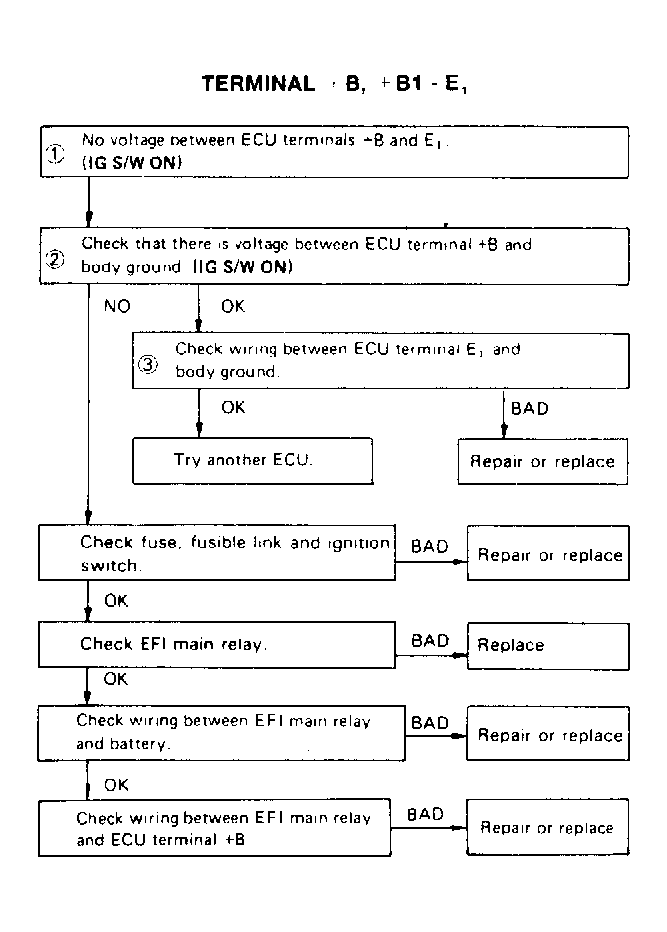

Fig 1: Terminal +B, +B1 - E(1) Part 1 of 5
G62012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

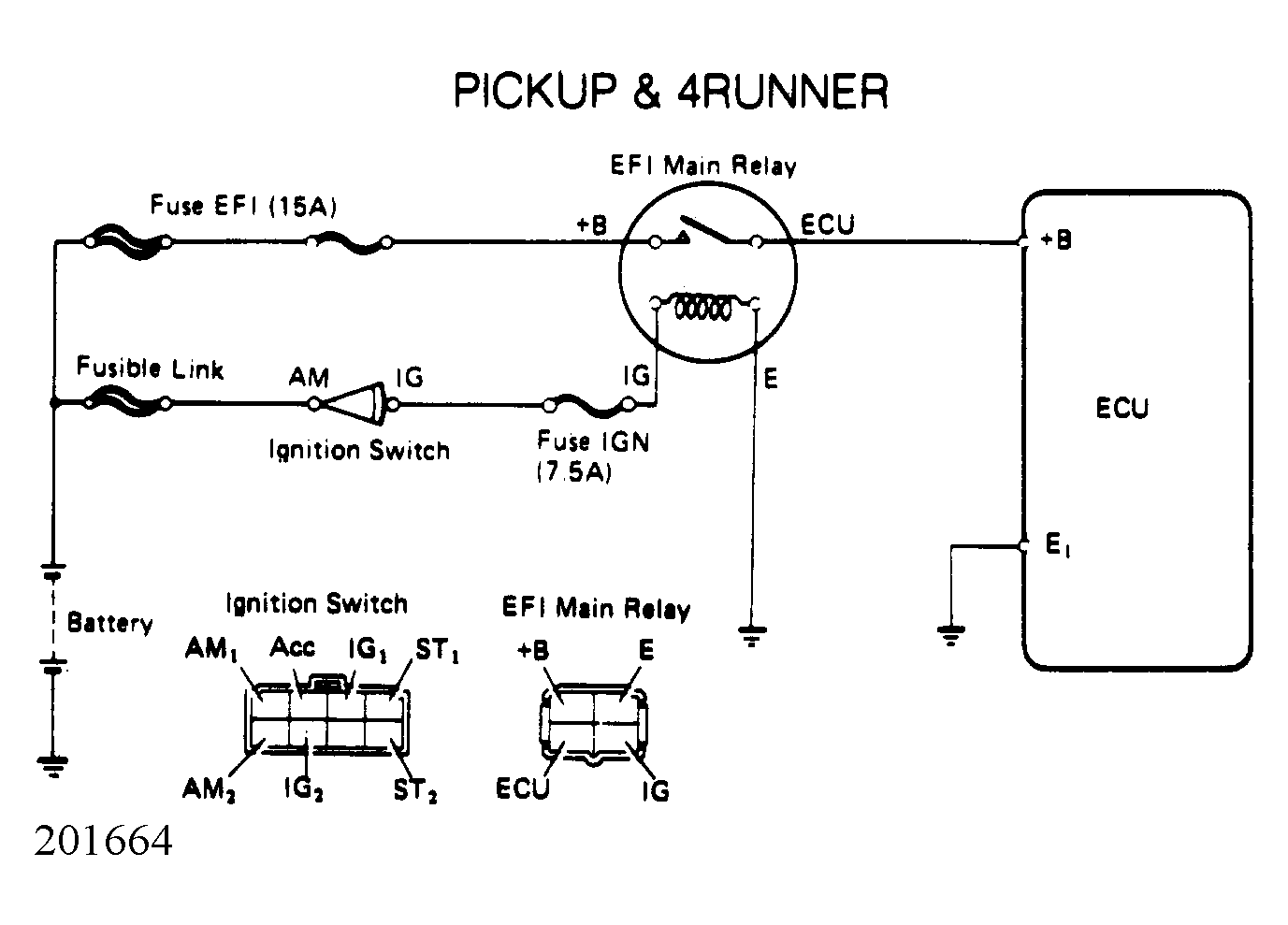

Fig 2: Wiring Diagram Part 2 of 5
G201664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

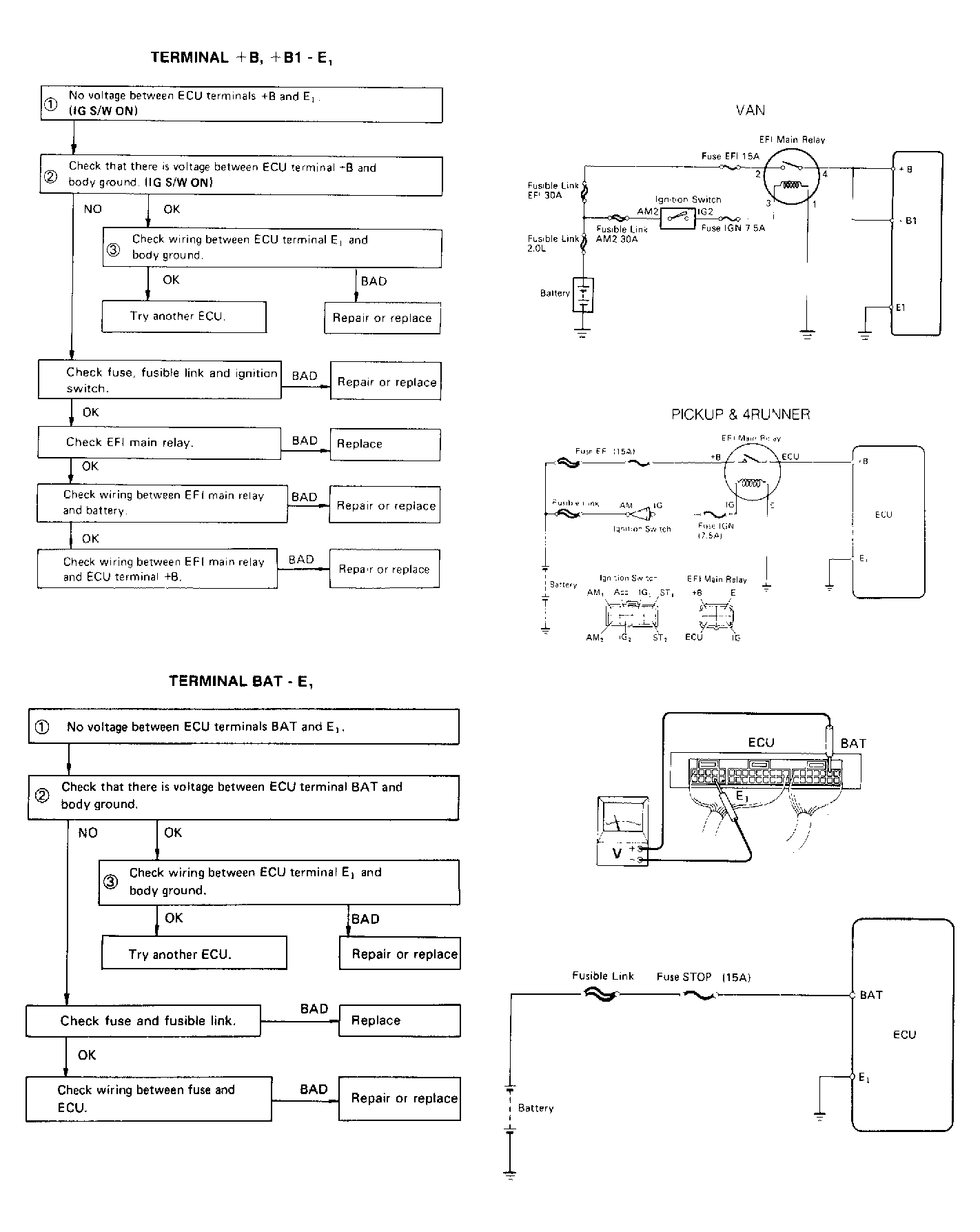

Fig 3: Terminal BAT - E(1) Part 3 of 5
G62011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

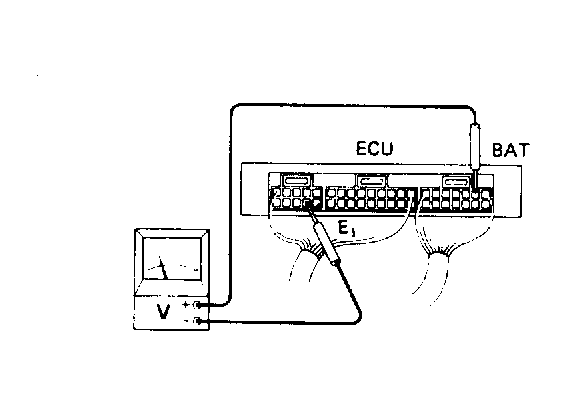

Fig 4: Wiring Diagram Part 4 of 5
G62015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

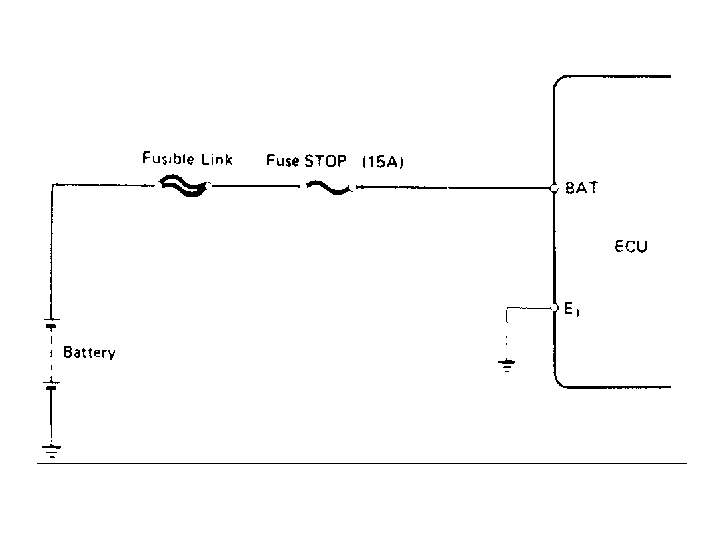

Fig 5: Wiring Diagram Part 5 of 5
G62016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
