Trouble Code 10 Ignition & Starter Circuit

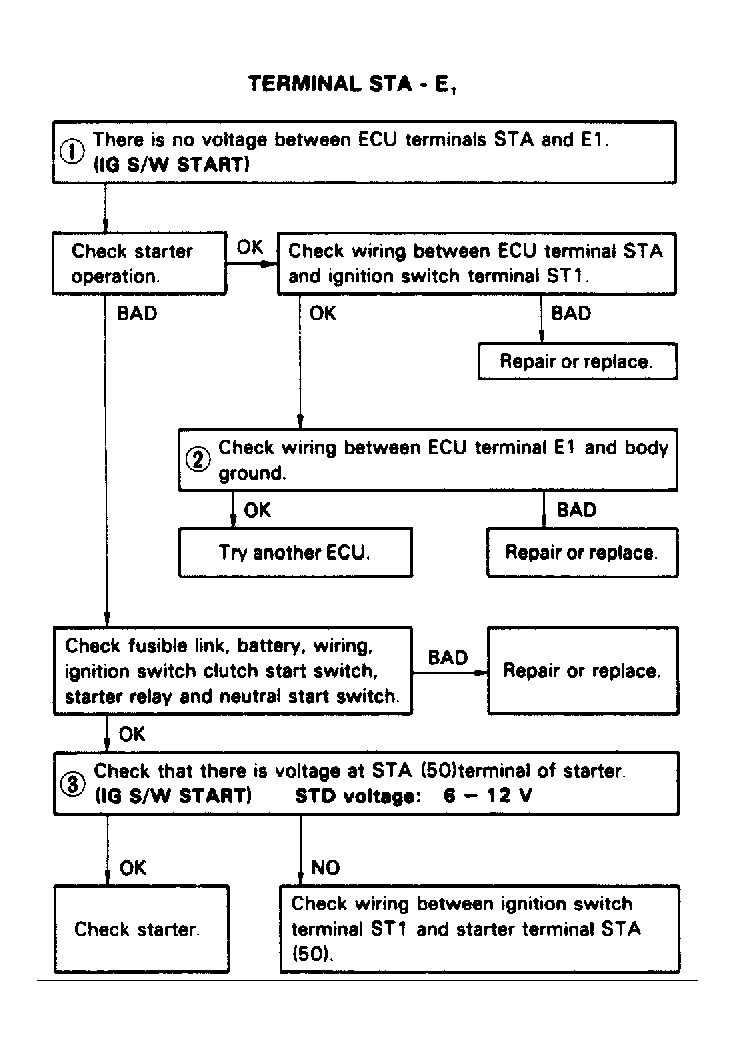

Fig 1: Terminal STA - E(1) Part 1 of 5
G62085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

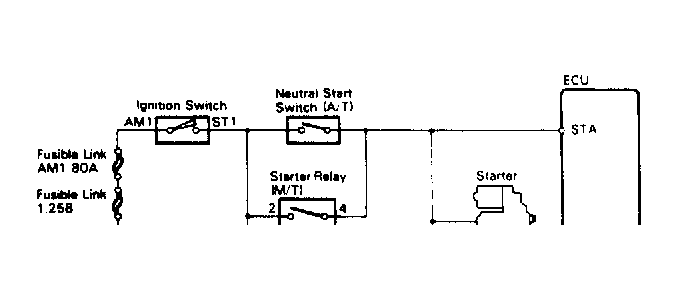

Fig 2: Wiring Diagram Part 2 of 5
G62086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

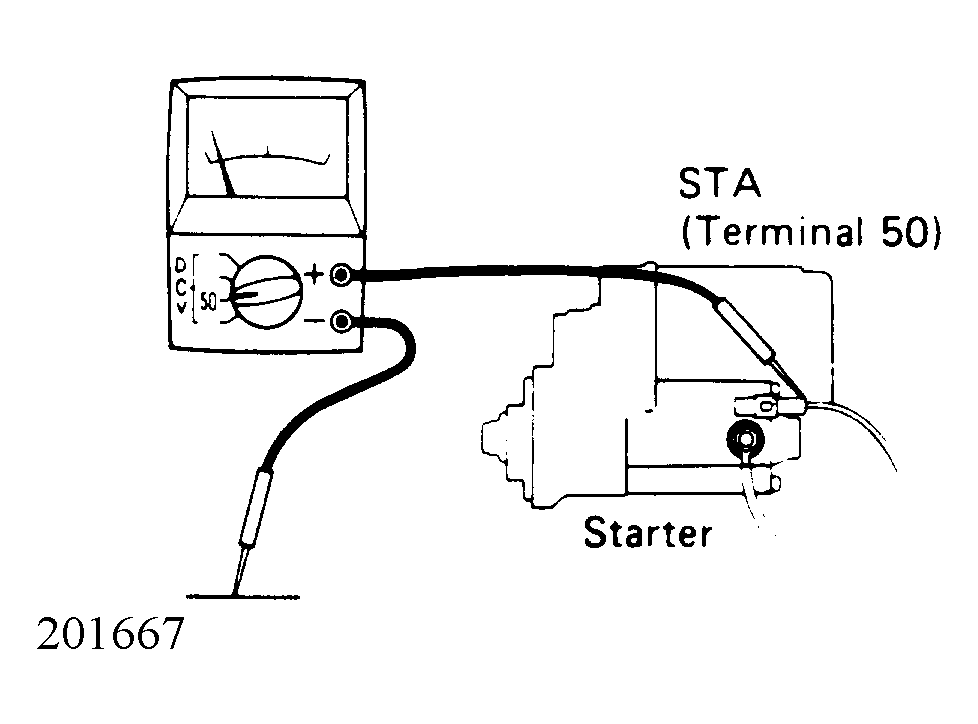

Fig 3: Wiring Diagram Part 3 of 5
G201667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

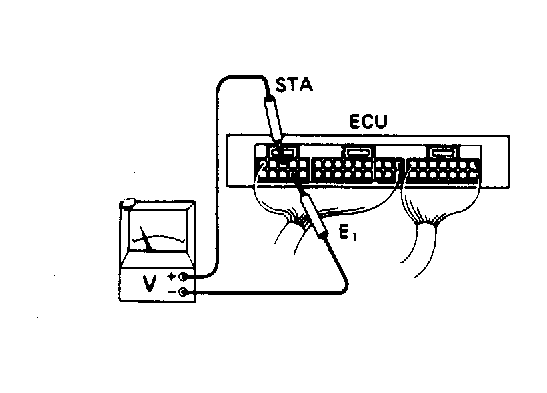

Fig 4: Wiring Diagram Part 4 of 5
G62083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

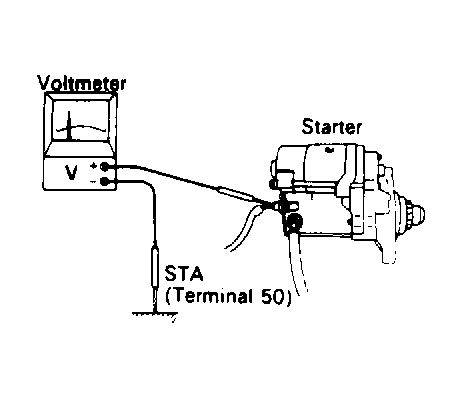

Fig 5: Wiring Diagram Part 5 of 5
G62088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
