Trouble Code 5 Oxygen Sensor

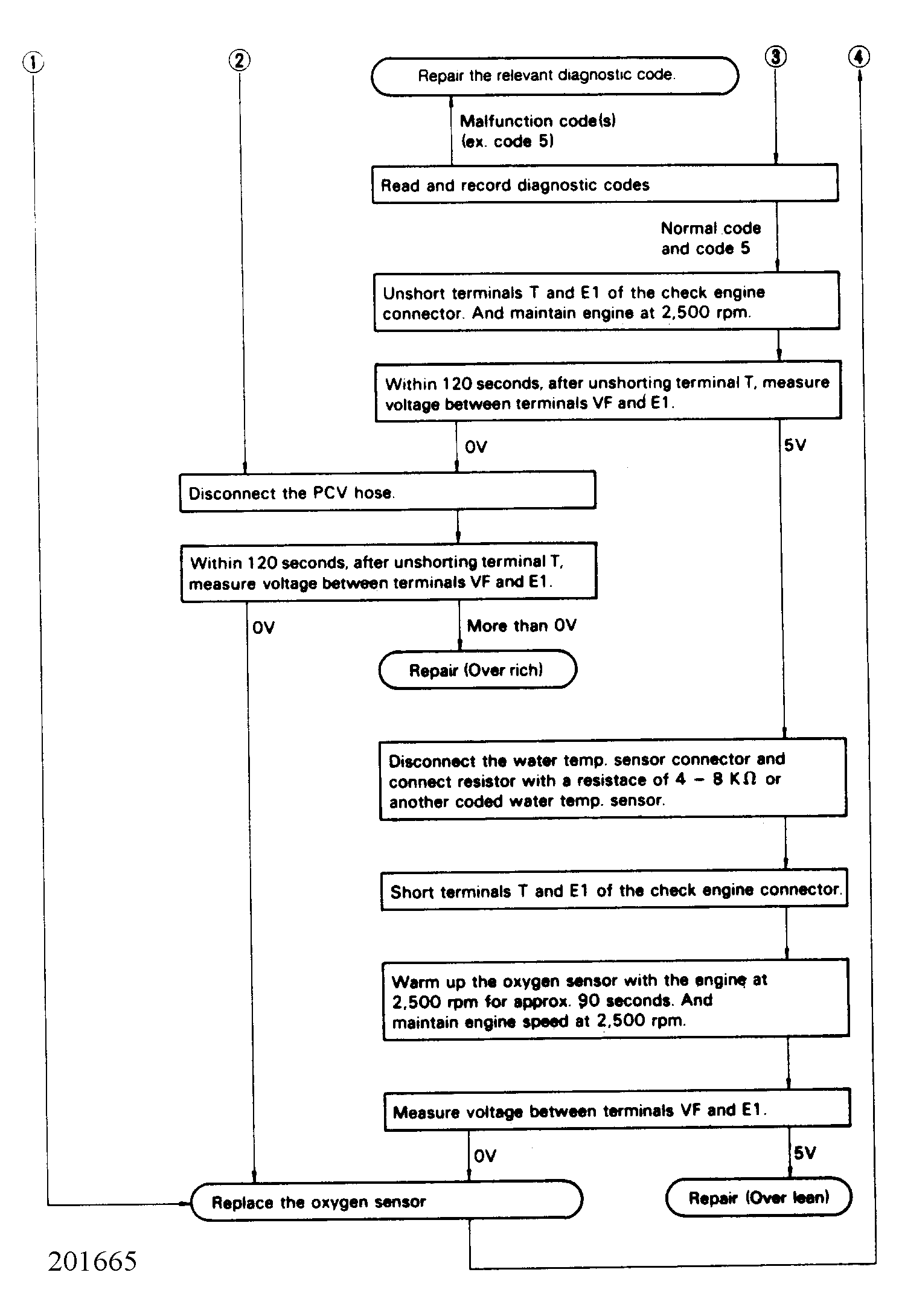

Fig 1: Trouble Code 5 Oxygen Sensor Part 1 of 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

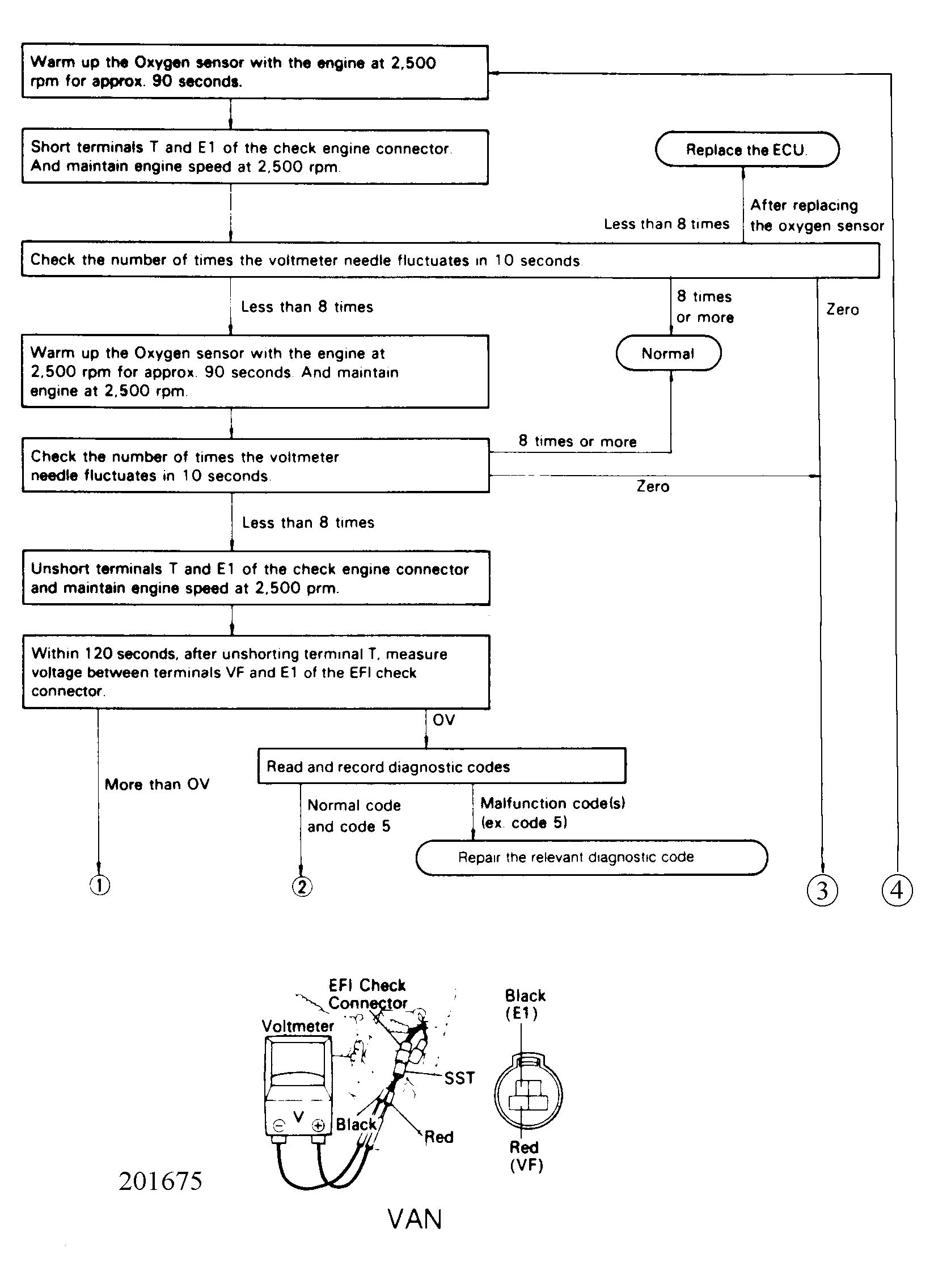

Fig 2: Trouble Code 5 Oxygen Sensor Part 2 of 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
