Trouble Code 7 TPS Sensor & Circuit

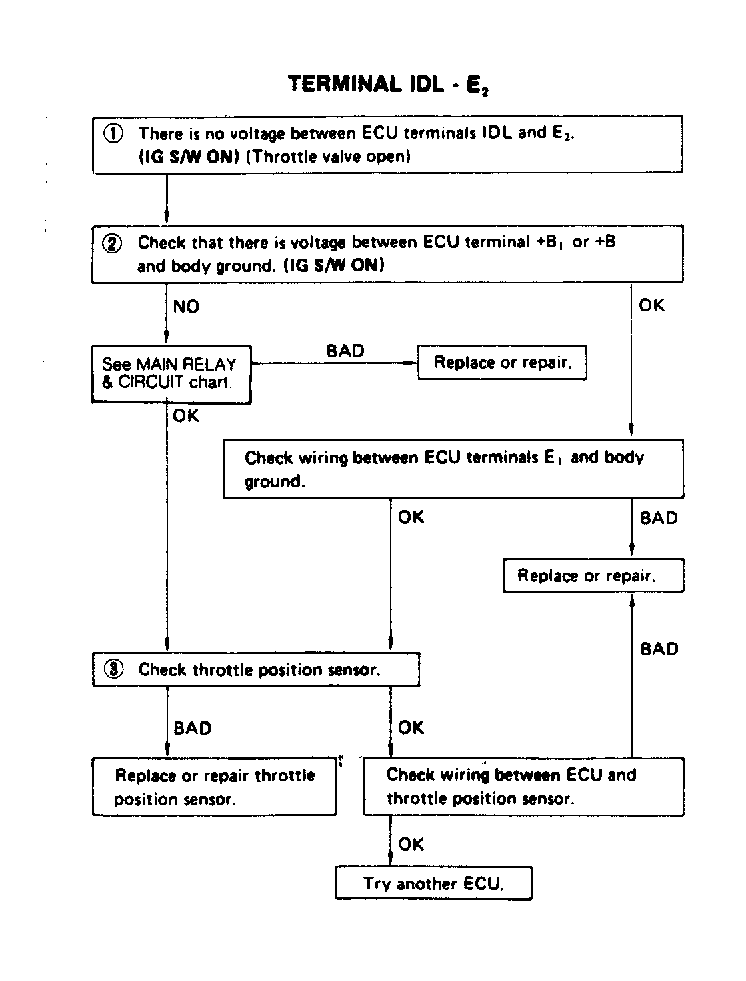

Fig 1: Terminal IDL - E(2) Part 1 of 5
G62065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

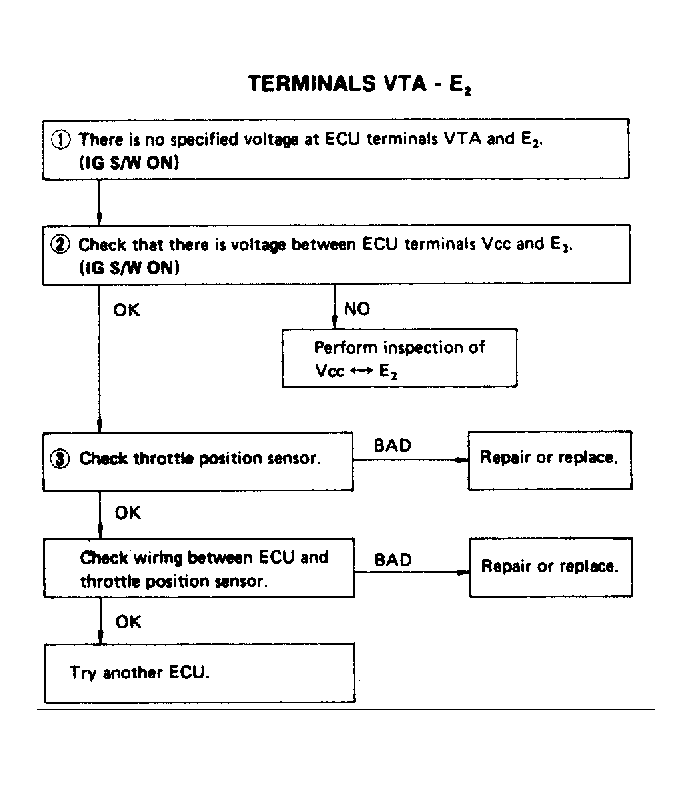

Fig 2: Terminal VTA - E(2) Part 2 of 5
G62066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

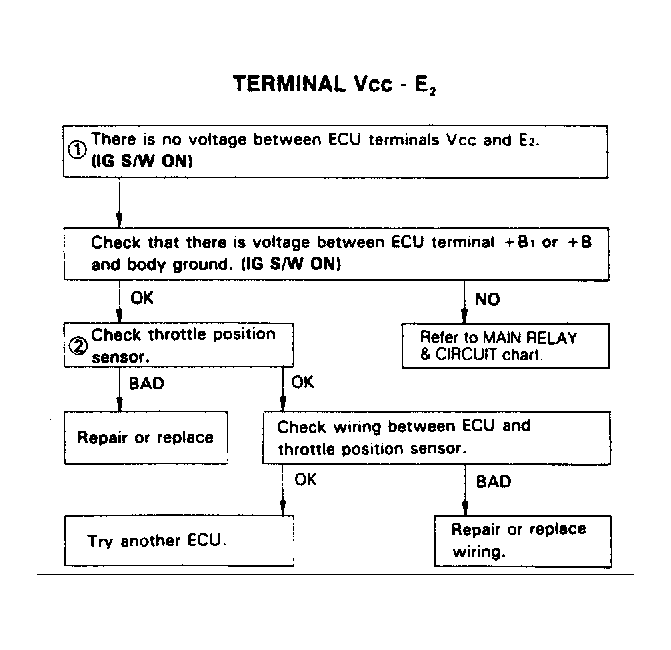

Fig 3: Terminal Vcc - E(2) Part 3 of 5
G62064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

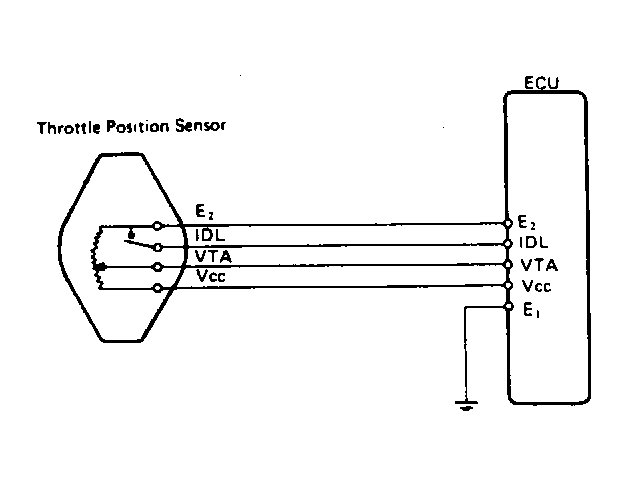

Fig 4: Wiring Diagram Part 4 of 5
G62067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

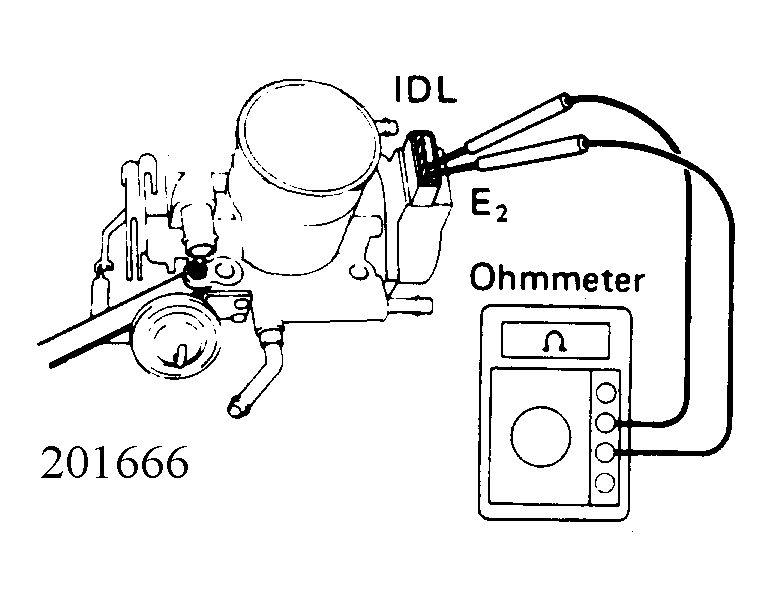

Fig 5: Wiring Diagram Part 5 of 5
G201666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
