Wiring Diagrams

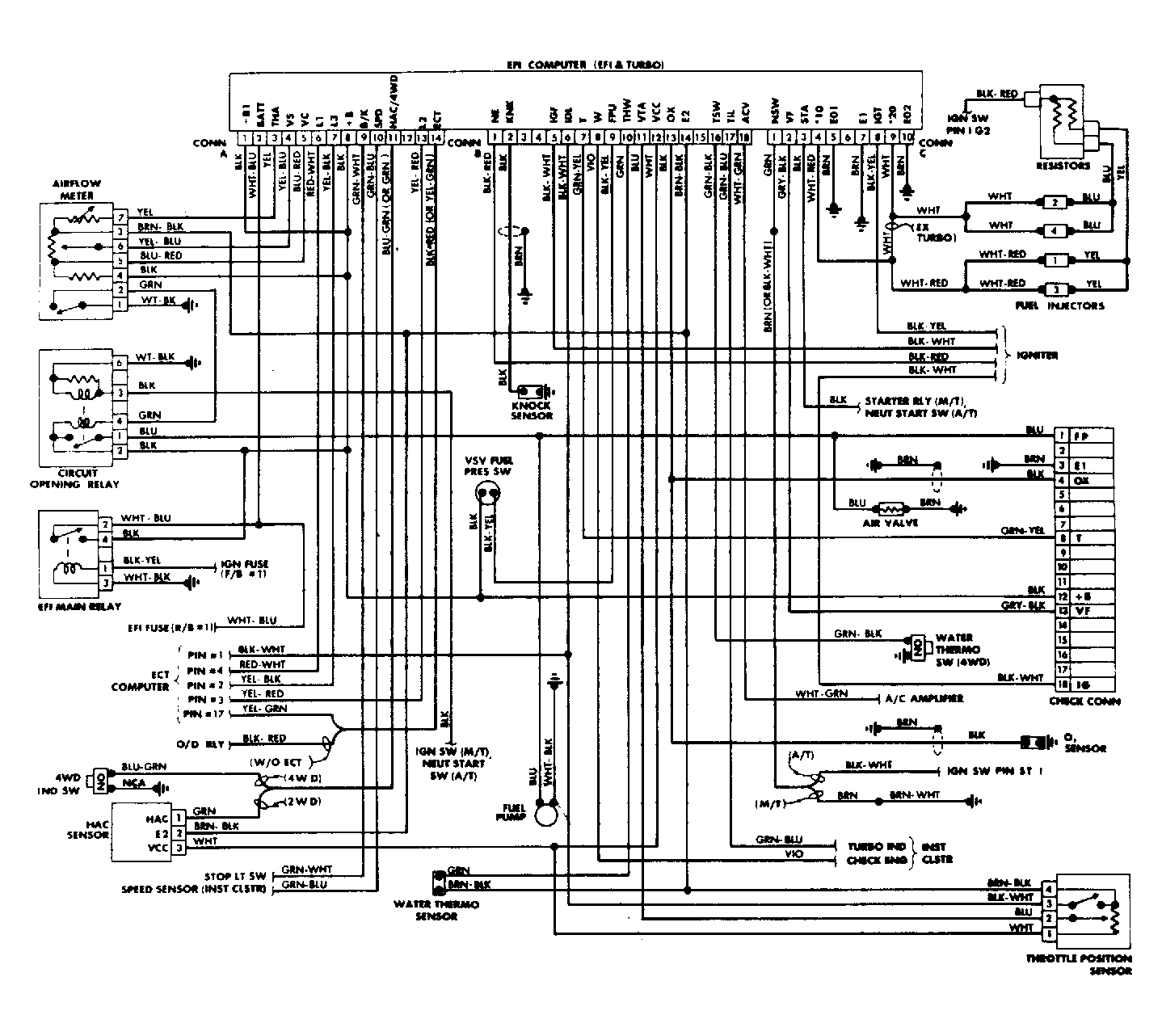

Fig 1: Pickup & 4-Runner TCCS Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
