Code 21 Oxygen Sensor

Fig 1: Trouble Code 21 Oxygen Sensor (1 Of 2)
G00286248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

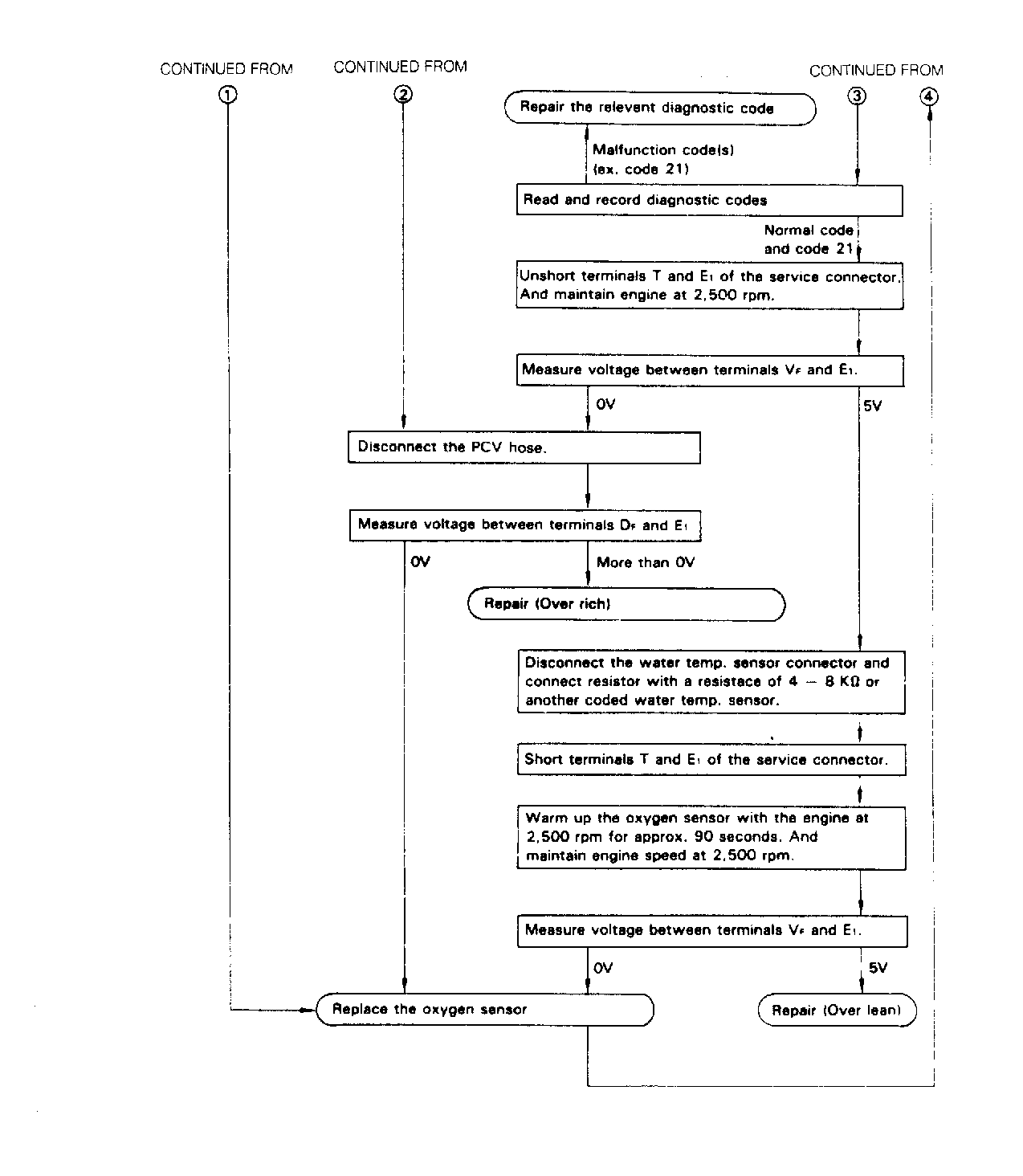

Fig 2: Trouble Code 21 Oxygen Sensor (2 Of 2)
G48577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
