ISC & Circuit Check

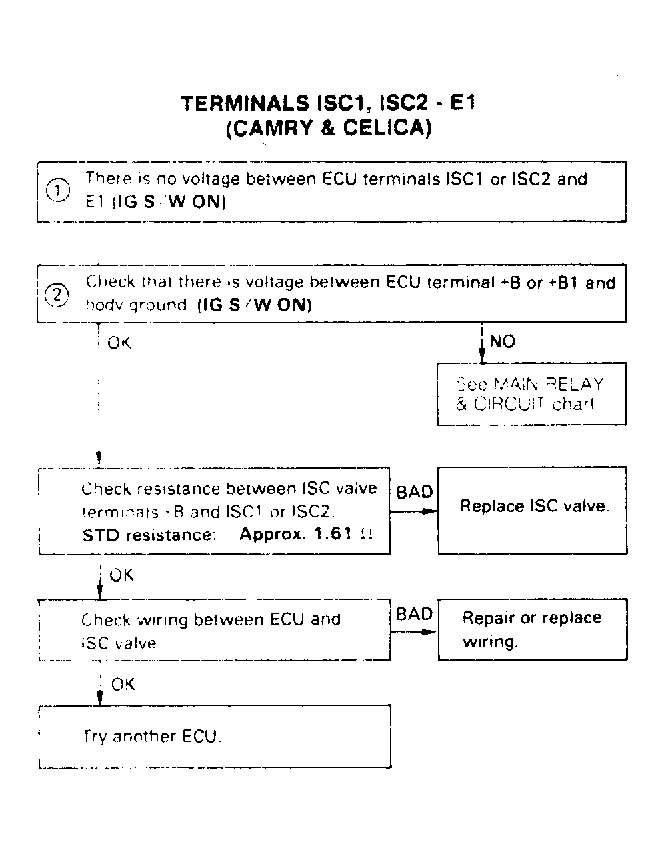

Fig 1: Terminals ISC1, ISC2 - E1 (1 Of 2)
G62150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

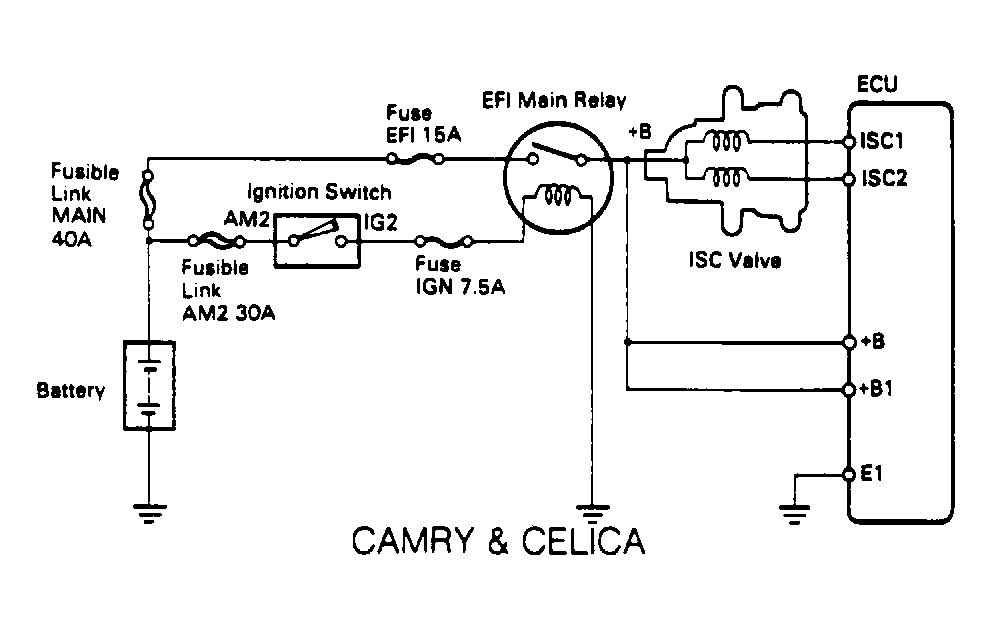

Fig 2: Terminals ISC1, ISC2 - E1 (2 Of 2)
G62149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
