Code 43 Ignition & Starter

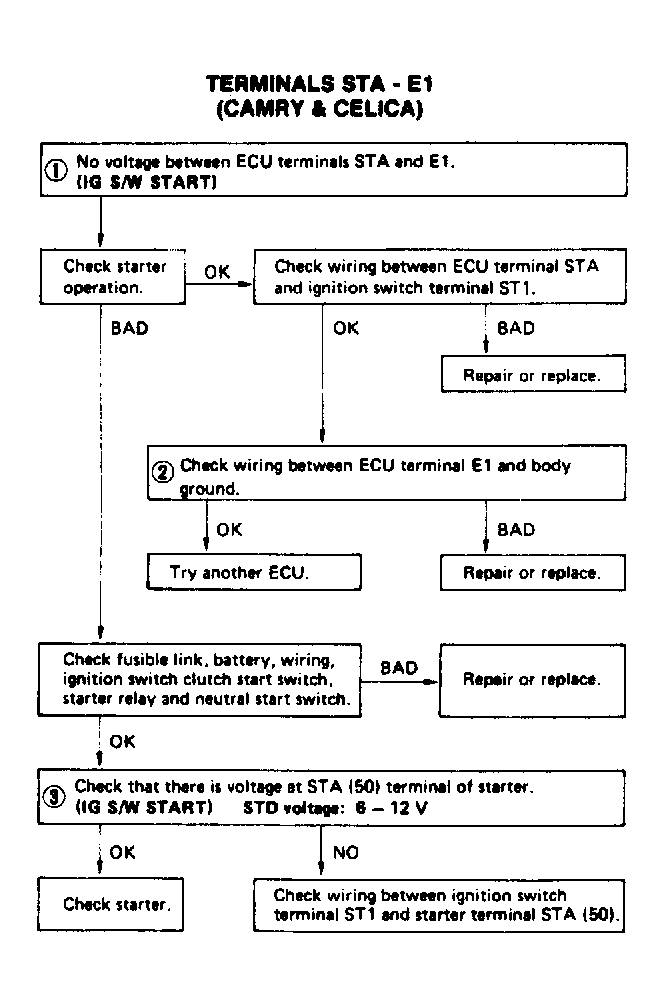

Fig 1: Terminals STA - E1 (1 Of 2)
G62144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Terminals STA - E1 (2 Of 2)
G62143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
