Code 10 Ignition & Starter

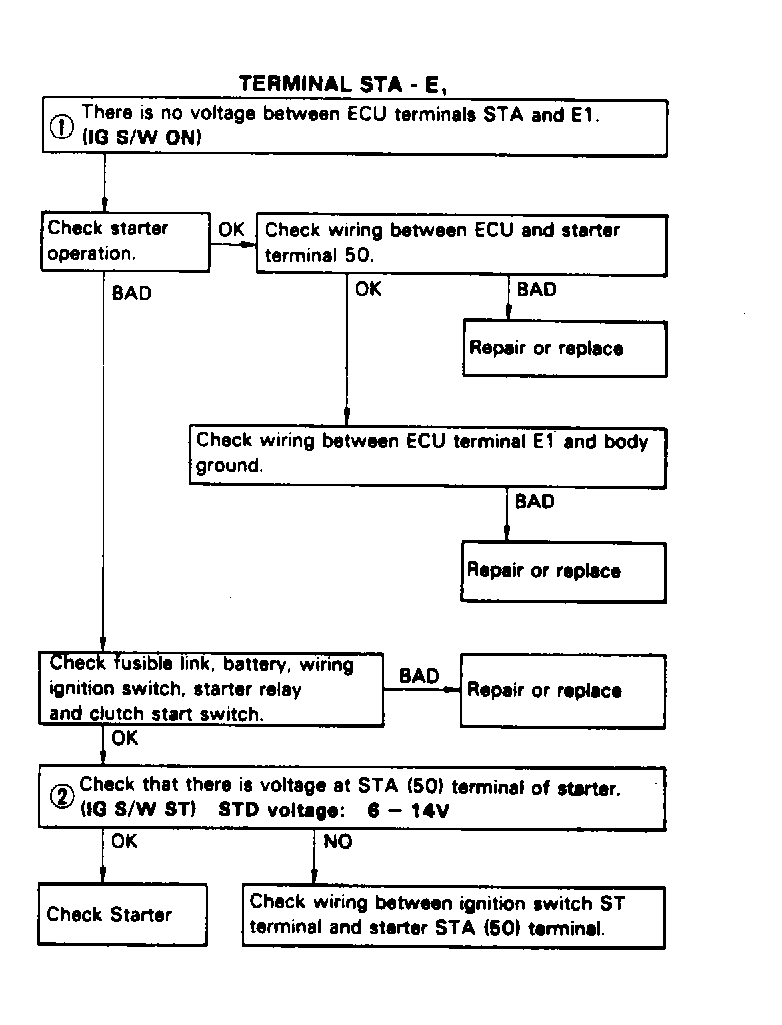

Fig 1: Terminal STA - E(1) (1 of 5)
G62079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wiring Diagram (2 of 5)
G62080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wiring Diagram (3 of 5)
G62077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Wiring Diagram (Corolla RWD) (4 of 5)
G62081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Wiring Diagram (Corolla FWD) (5 of 5)
G62082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
