Throttle Positioner System: Description
The Throttle Positioner (TP) system controls exhaust emissions during deceleration by holding the throttle plate at an above-idle position during "OFF" throttle operation. This prevents the fuel mixture from being starved of air and helps control HC and CO emissions. The controlling unit is a vacuum-operated TP diaphragm.

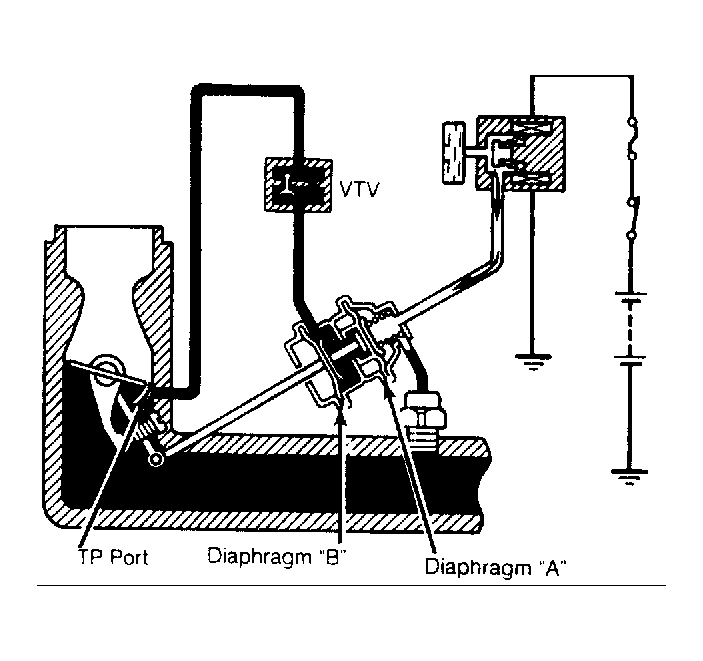

The system consists of a throttle positioner diaphragm, Vacuum Transmitting Valve (VTV), and Thermostatic Vacuum Switching Valve (TVSV).
