Injector Circuit Check MR2

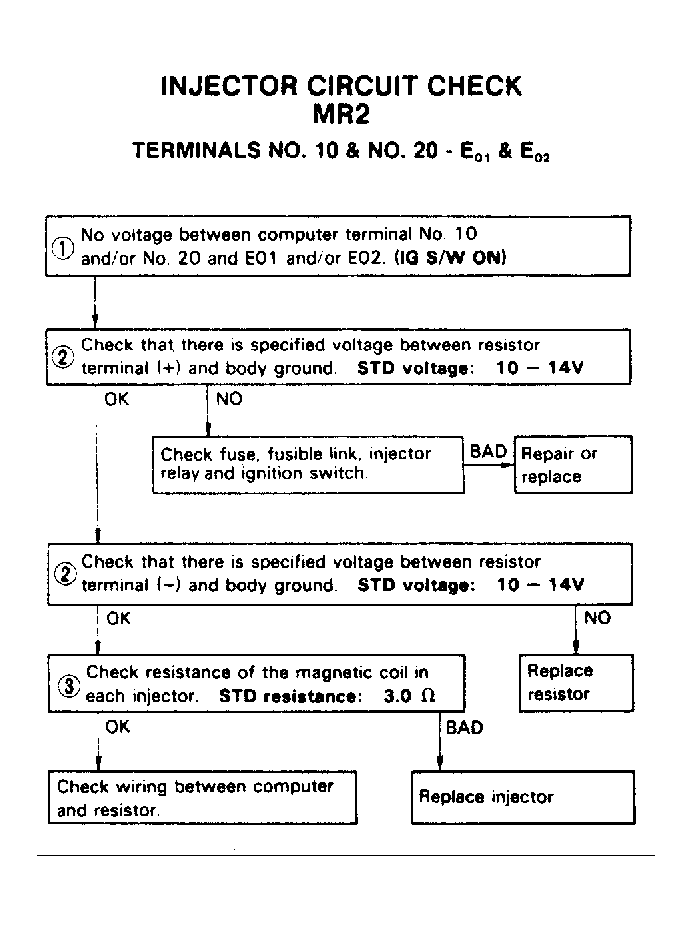

Fig 1: Terminals No. 10 & No. 20 - E(01) & E(02) Part 1 of 4
G61993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

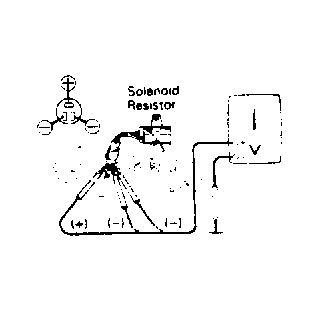

Fig 2: Wiring Diagram Part 2 of 4
G61994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

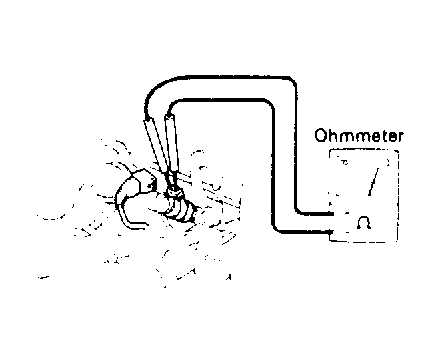

Fig 3: Wiring Diagram Part 3 of 4
G61995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Wiring Diagram Part 4 of 4
G61996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
