Main Relay & Circuit

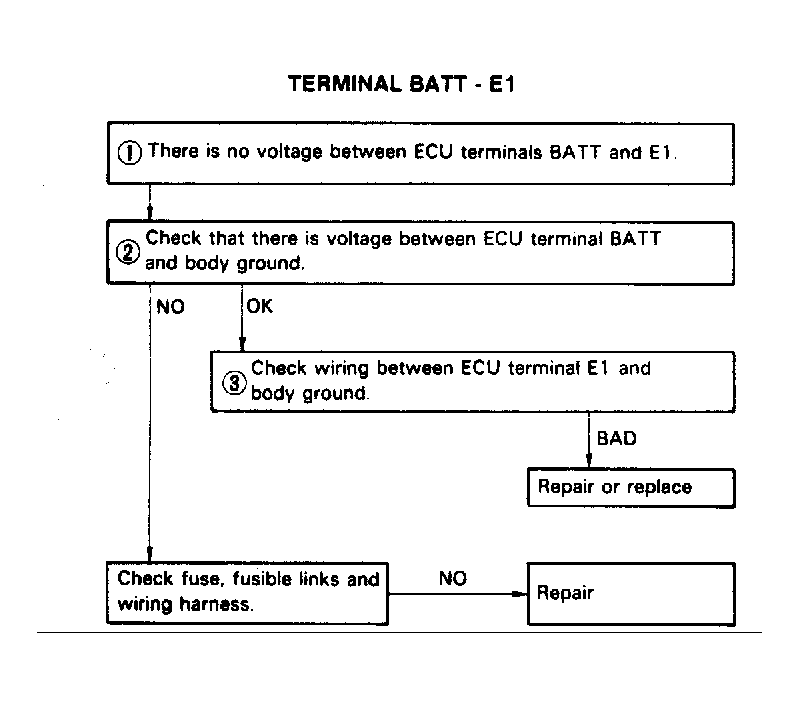

Fig 1: Terminal BATT - E(1) Part 1 of 5
G62006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

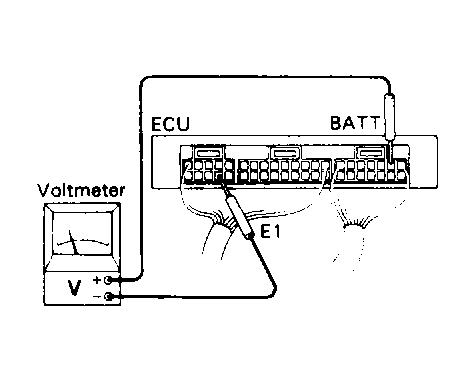

Fig 2: Wiring Diagram Part 2 of 5
G62007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

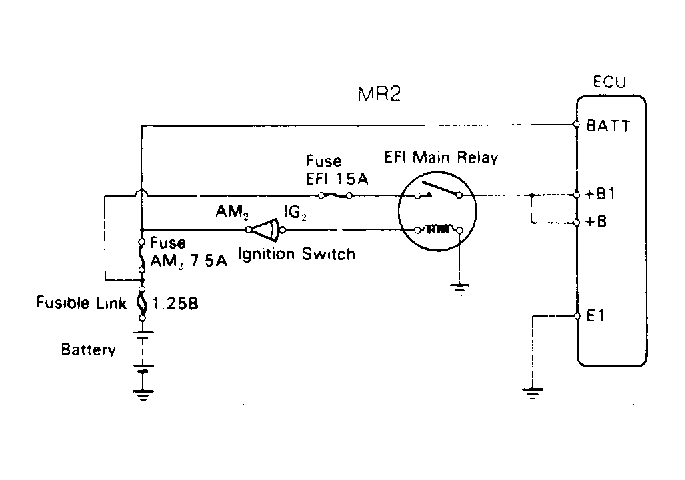

Fig 3: Wiring Diagram Part 3 of 5
G62010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

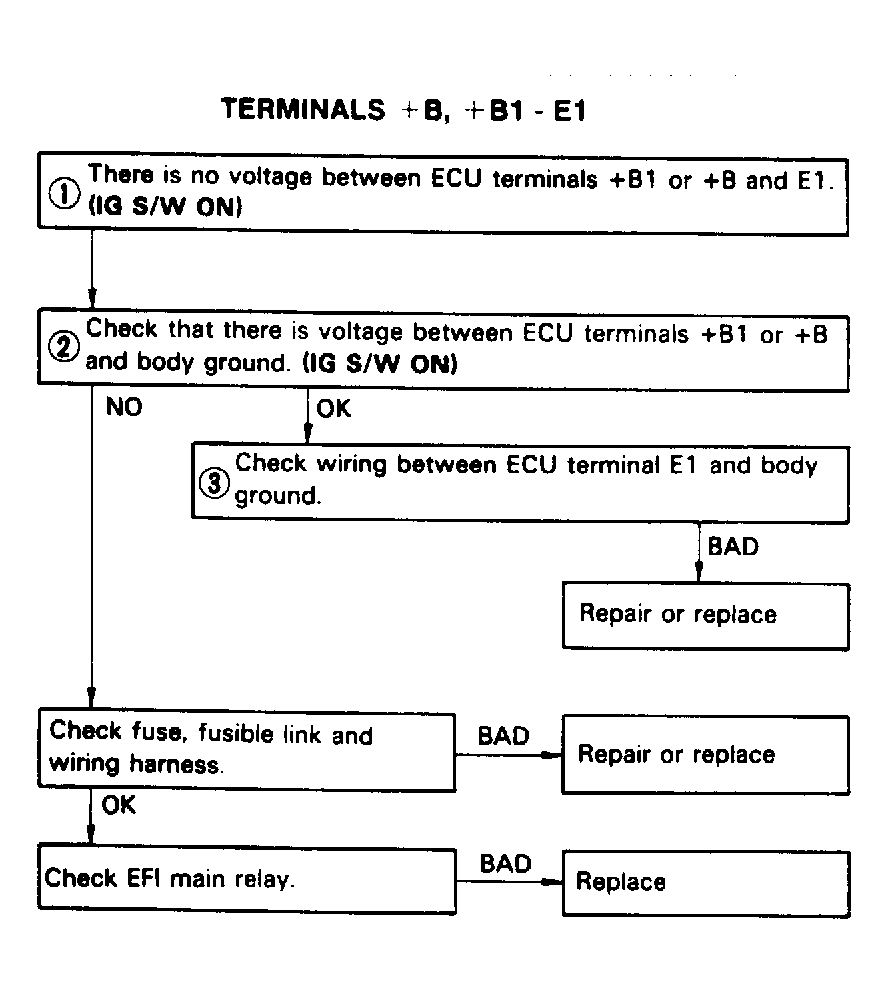

Fig 4: Terminal +B(1), +B1 - E1 Part 4 of 5
G62005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

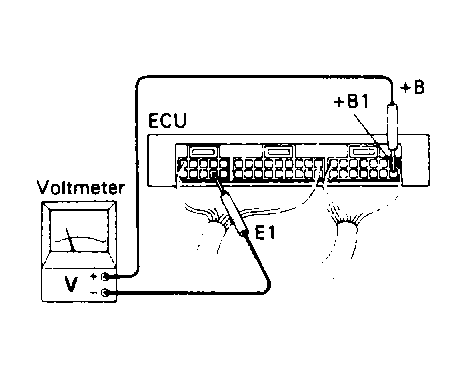

Fig 5: Wiring Diagram Part 5 of 5
G62008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
