Trouble Code 4 Coolant Temp. Sensor & Circuit

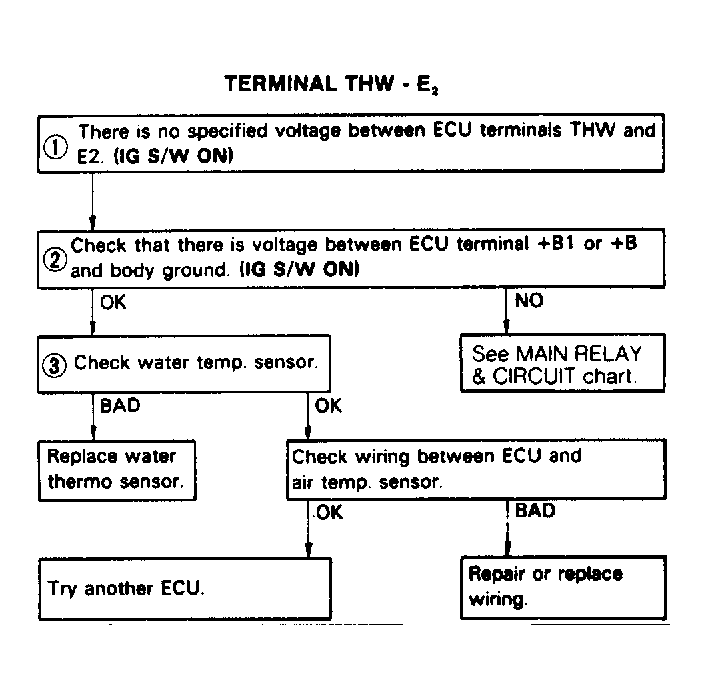

Fig 1: Terminal THW - E(2) Part 1 of 3
G62041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wiring Diagram Part 2 of 3
G62042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

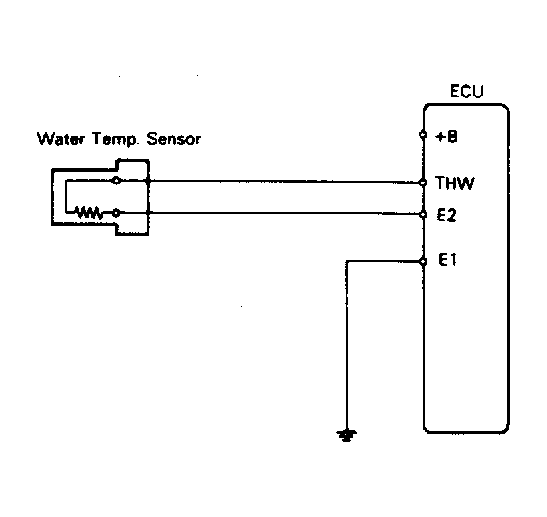

Fig 3: Wiring Diagram Part 3 of 3
G62043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
