Trouble Code 5 Oxygen Sensor

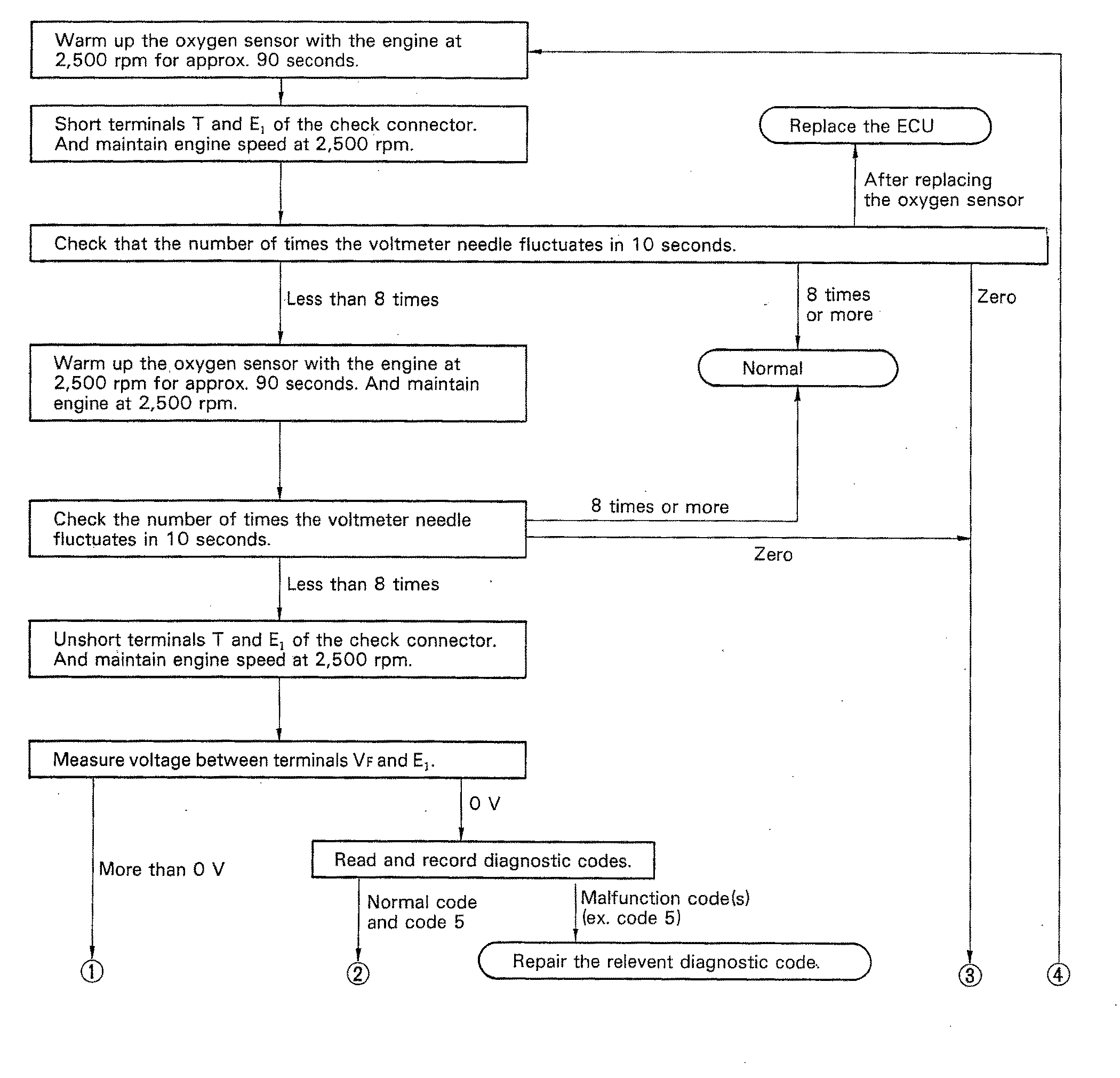

Fig 1: Trouble Code 5 Oxygen Sensor MR2 Part 1 of 3
G62052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

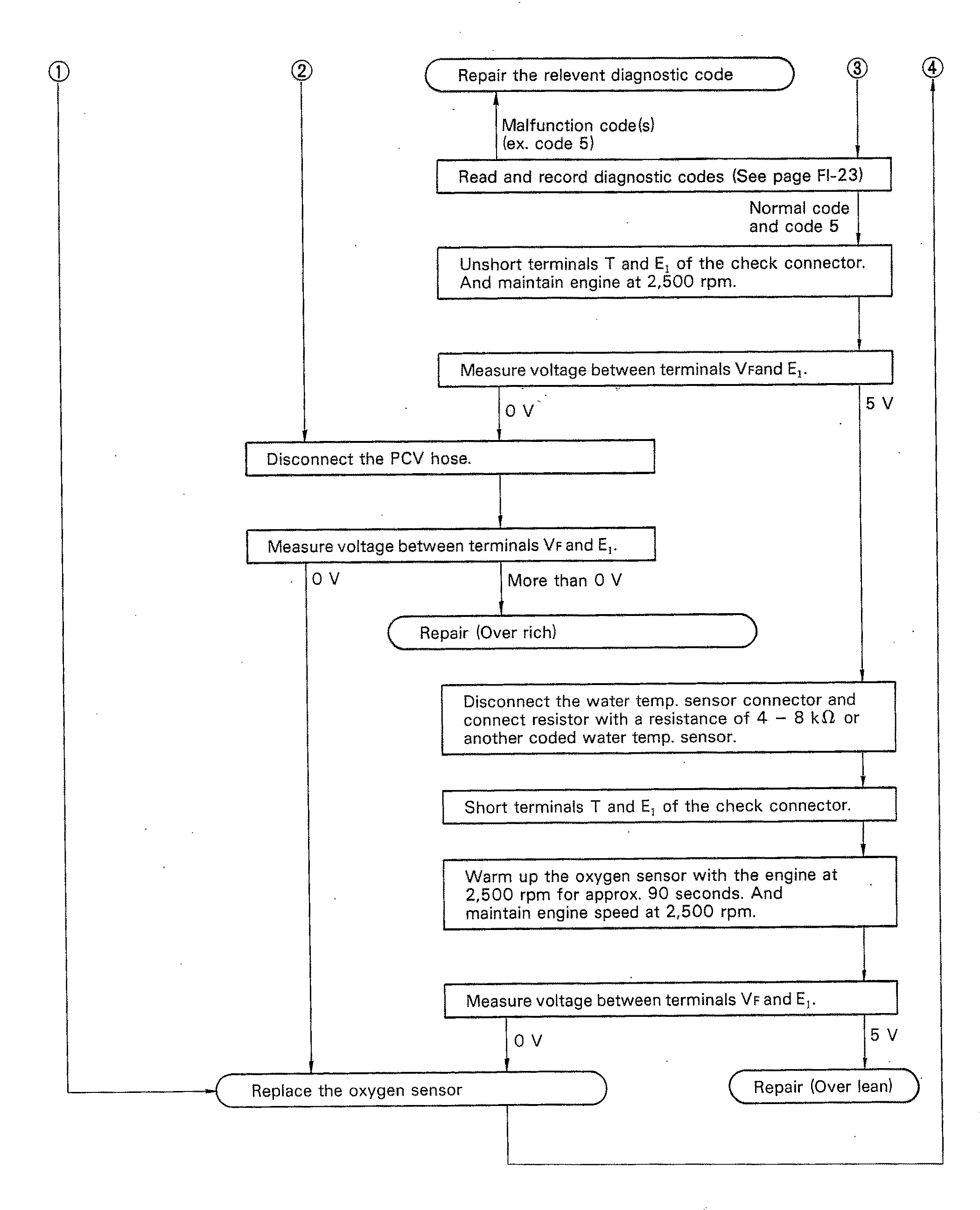

Fig 2: Trouble Code 5 Oxygen Sensor MR2 Part 2 of 3
G62053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Trouble Code 5 Oxygen Sensor MR2 Part 3 of 3
G62054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
