Trouble Code 7 TPS Sensor & Circuit

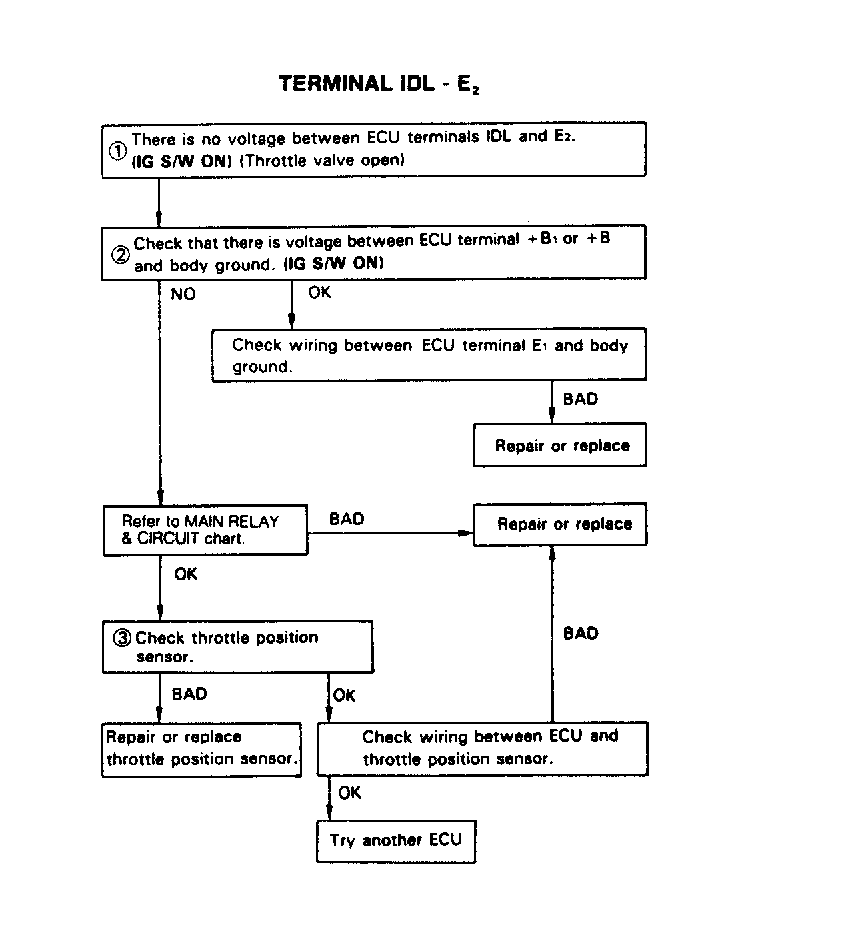

Fig 1: Terminal IDL - E(2) Part 1 of 6

G62059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

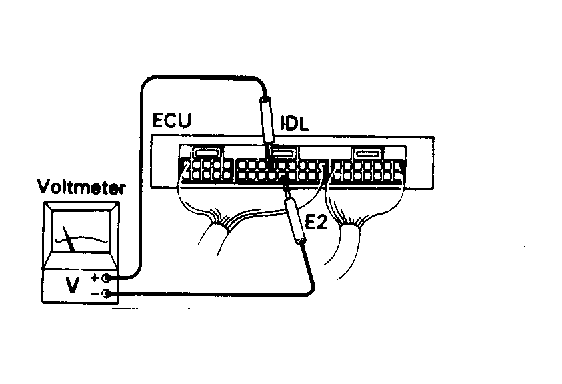

Fig 2: Wiring Diagram Part 2 of 6

G62061

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

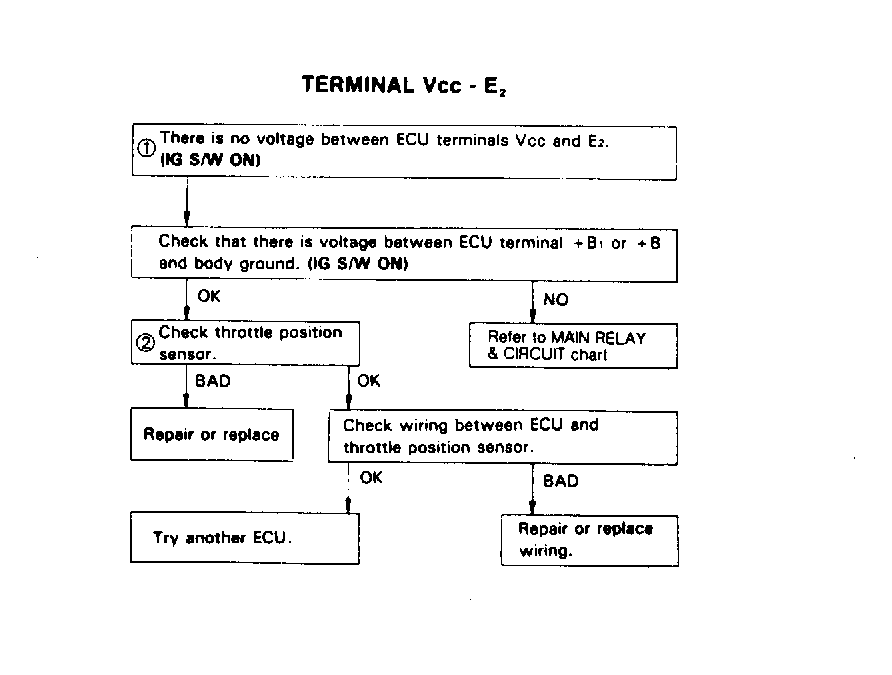

Fig 3: Terminal Vcc - E(2) Part 3 of 6

G62060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Wiring Diagram Part 4 of 6

G62062

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

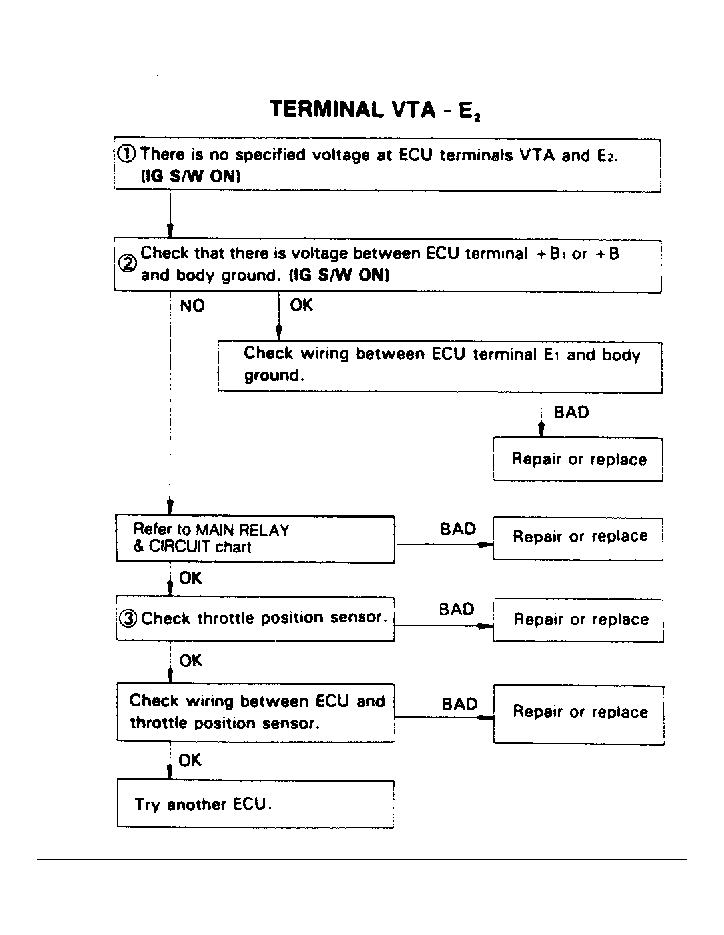

Fig 5: Terminal VTA - E(2) Part 5 of 6

G62058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

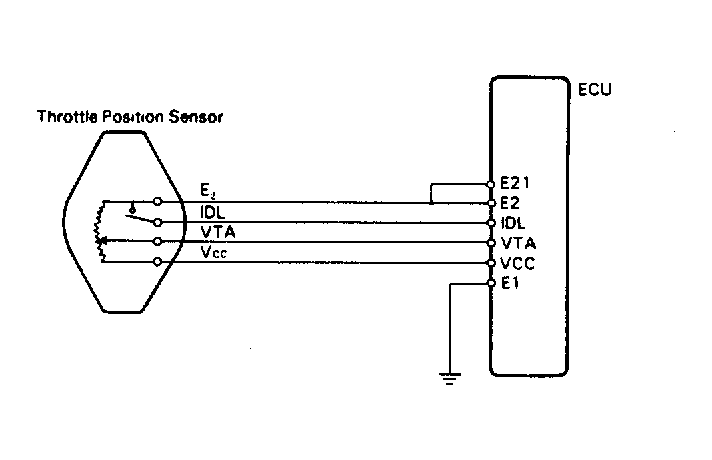

Fig 6: Wiring Diagram Part 6 of 6

G62063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
