Diagnostic Circuit Check

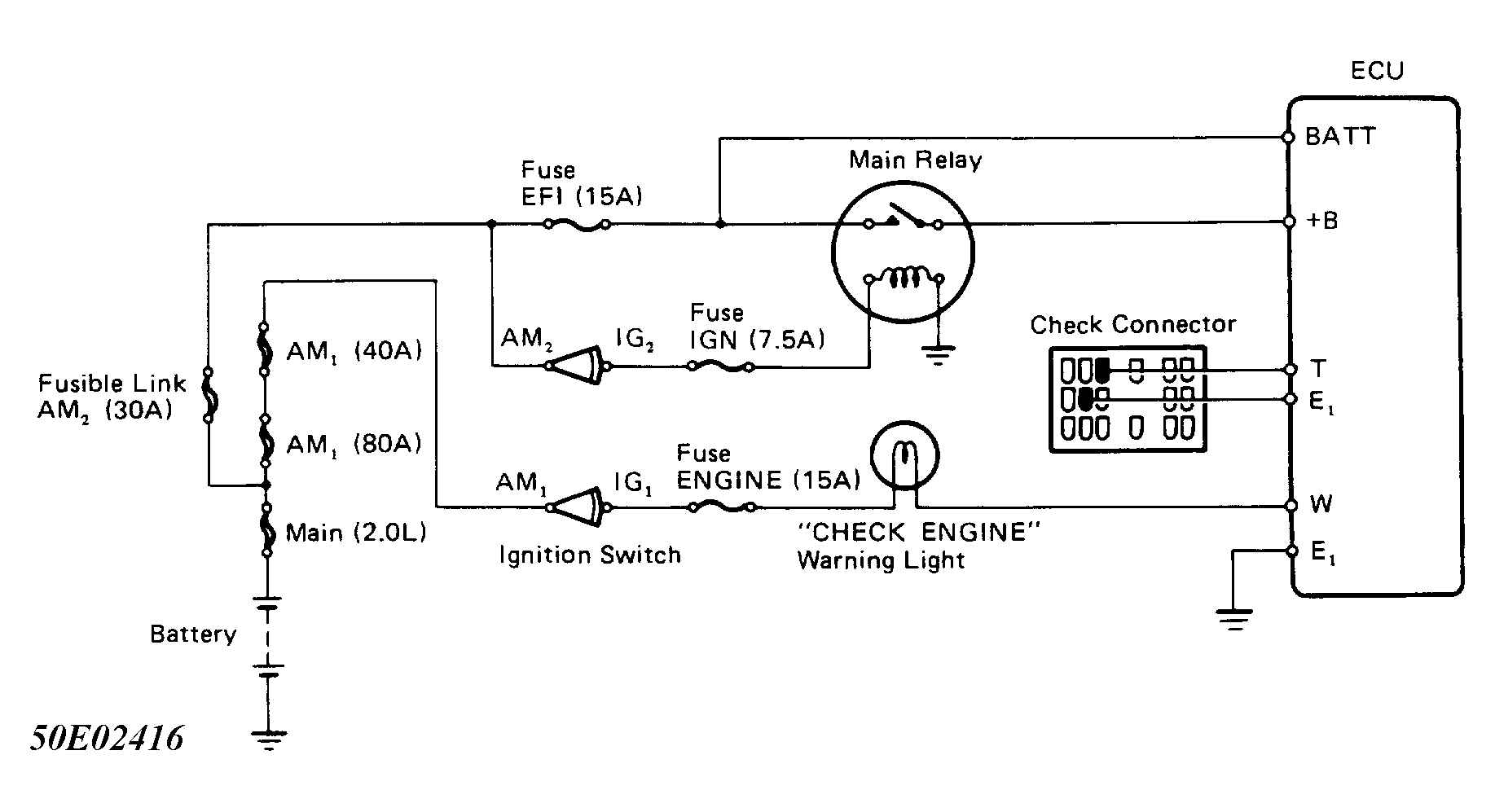

Fig 1: Diagnostic Circuit Check, Schematic
G50E02416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

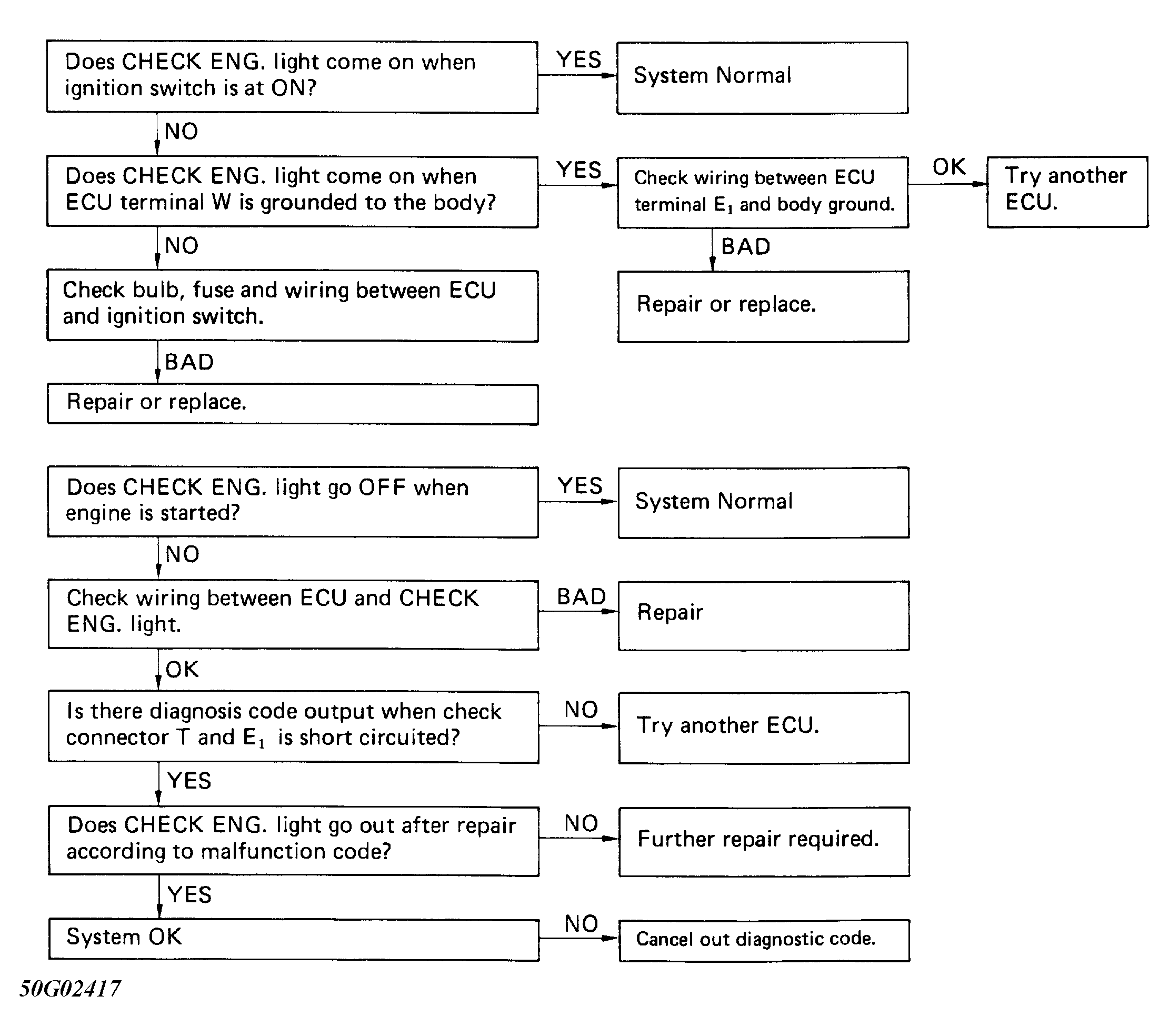

Fig 2: Diagnostic Circuit Check, Flow Chart
G50G02417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
