No. 10 Test, Code 71, EGR System Signal

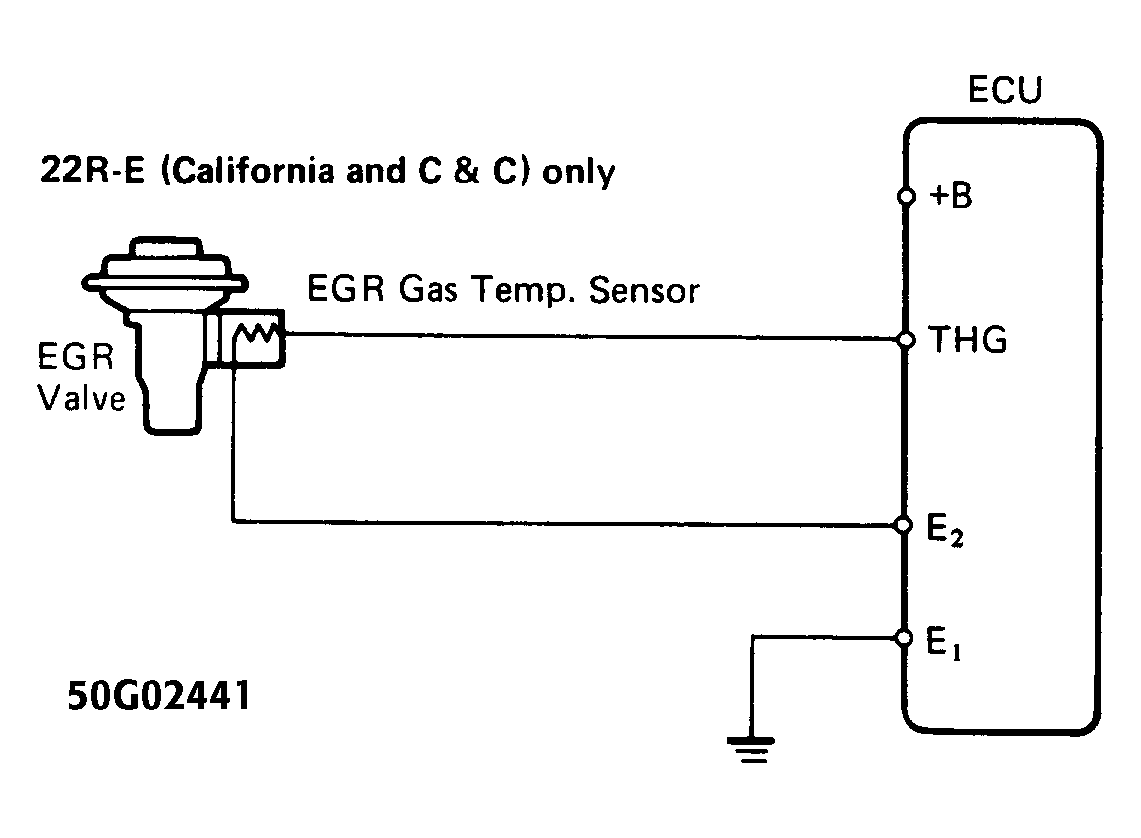

Fig 1: No. 10 Test, Code 71 Schematic, EGR System Signal
G50G02441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

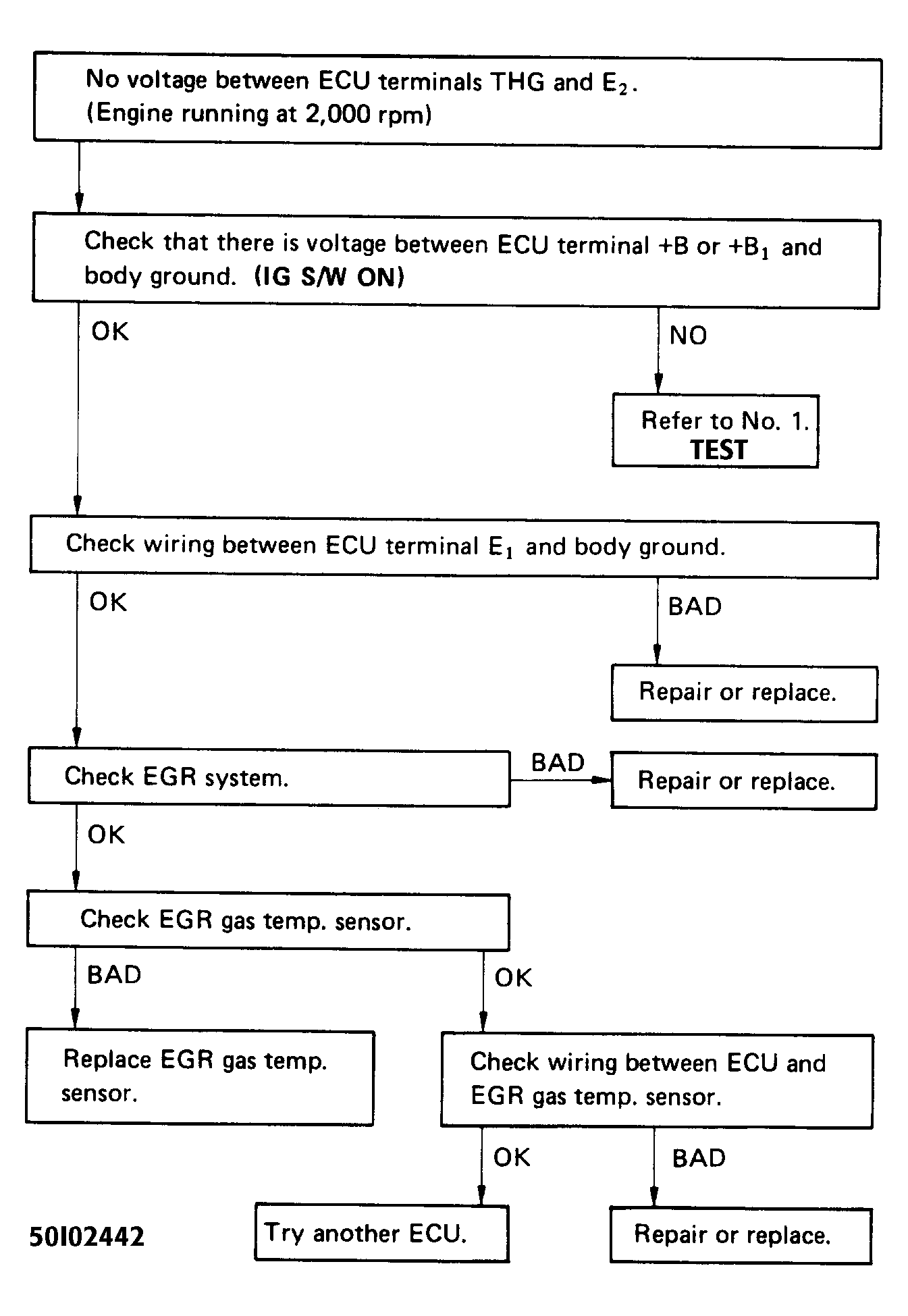

Fig 2: No. 10 Test, Code 71 Flow Chart, EGR System Signal
G50I02442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

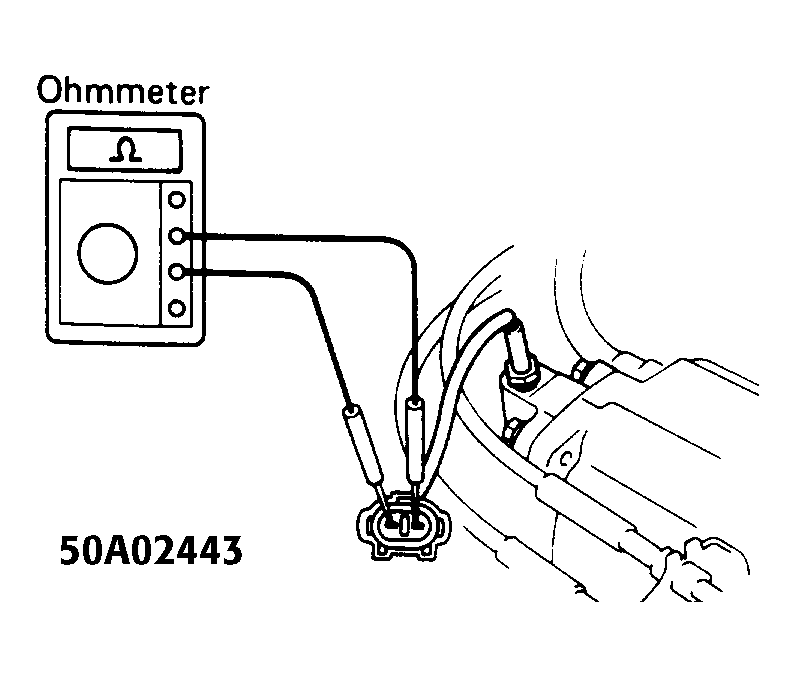

Fig 3: No. 10 Test, Code 71, EGR Gas Temp. Sens. Check
G50A02443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
