No. 15 Test, Injector Circuit Test

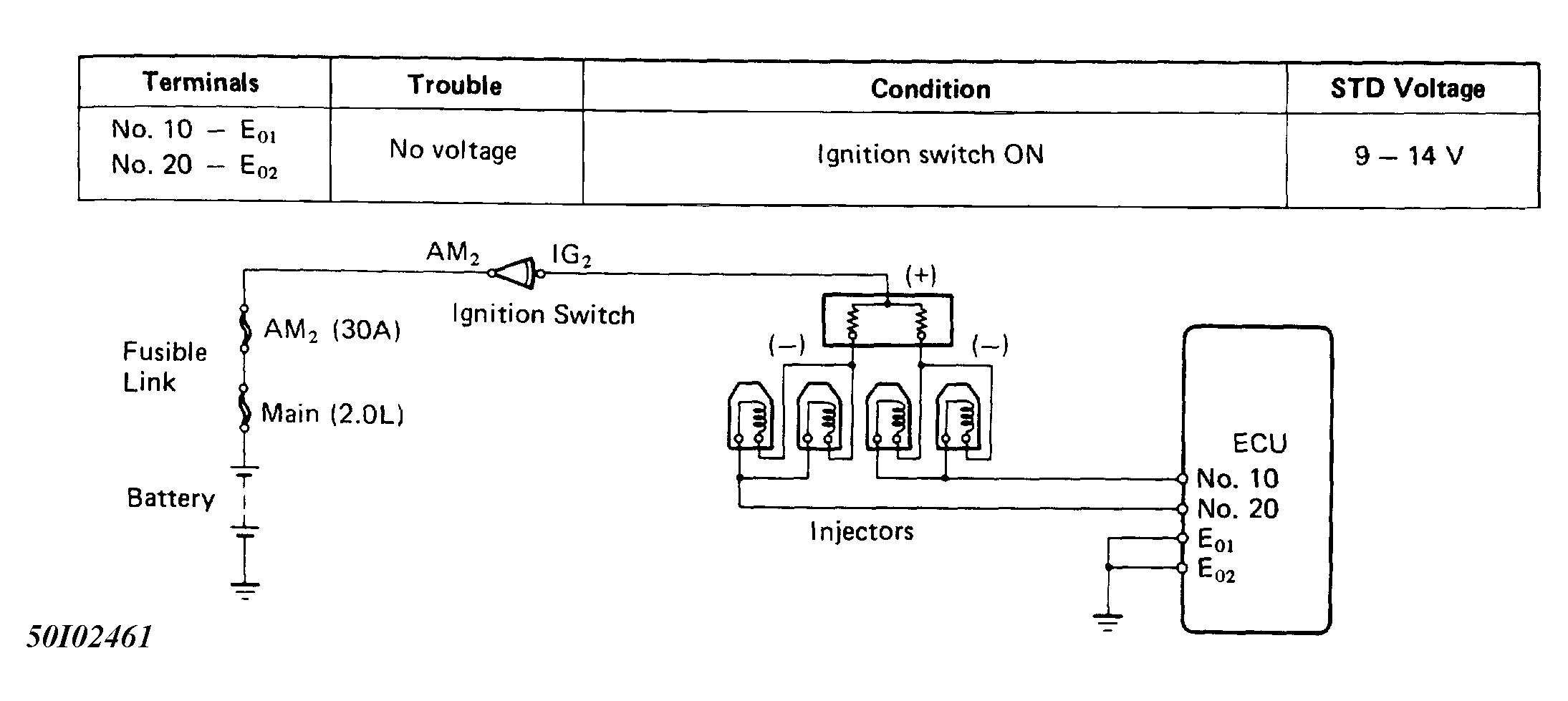

Fig 1: No. 15 Test, Injector Circuit Test, Schematic
G50I02461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

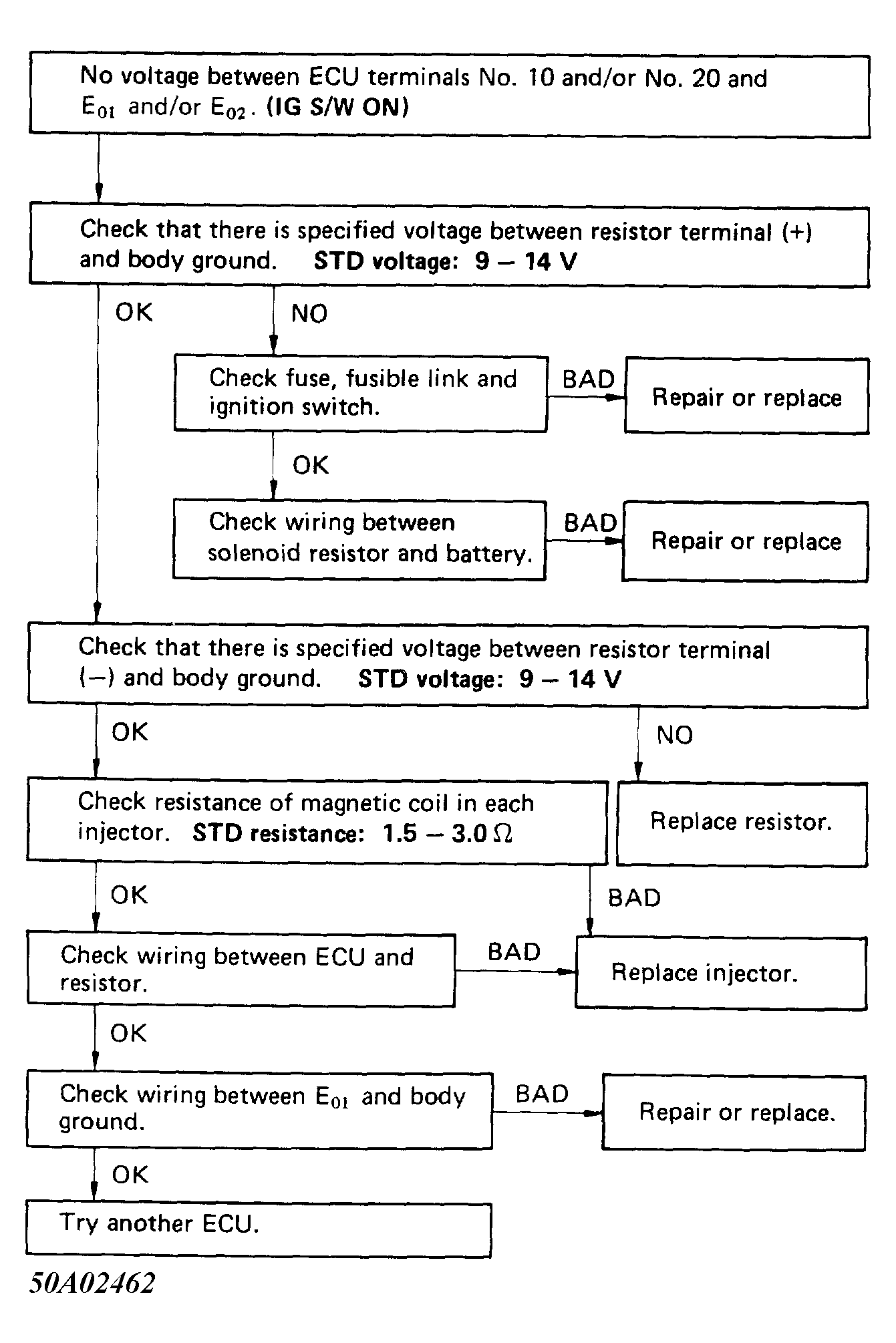

Fig 2: No. 15 Test, Injector Circuit Test, Flow Chart
G50A02462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

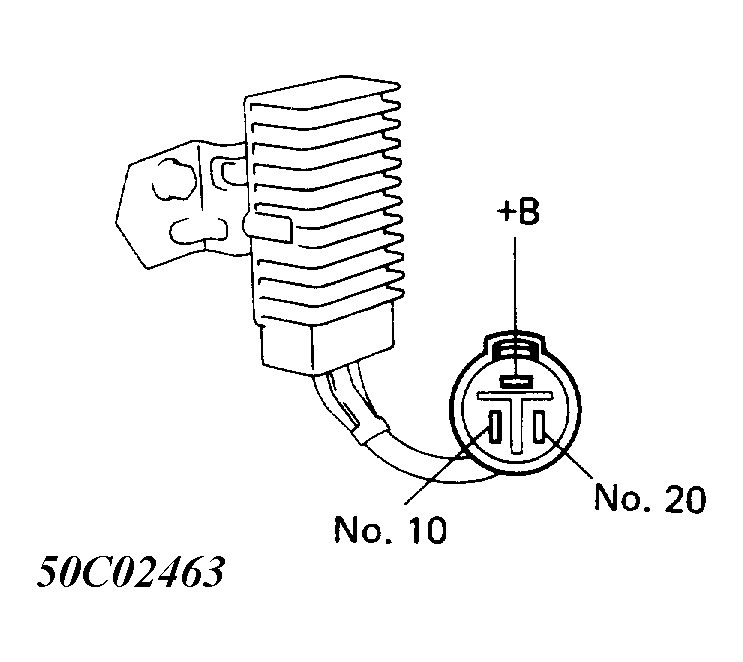

Fig 3: No. 15 Test, Injector Circuit Test, Resistor
G50C02463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Injector Resistance on Pickup and 4Runner models with 4-Cyl. is 1.5-3.0 ohms.
