No. 8 Test, Code 41 (Code 7 On Turbo), TPS Sensor Signal

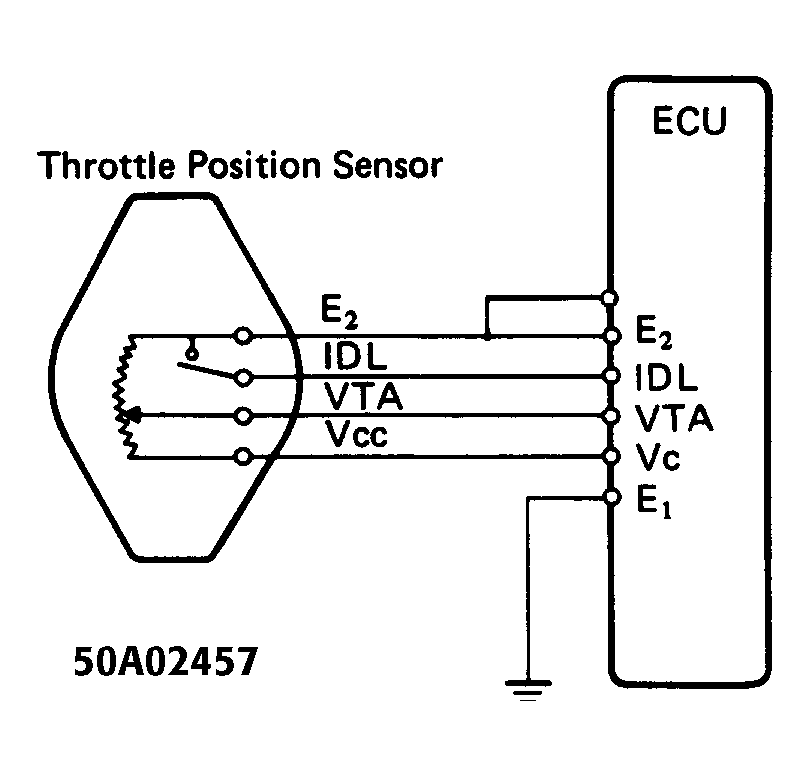

Fig 1: No. 8 Test Schematic (4-Cyl.), Code 41 (Code 7 on Turbo), TPS Sens. Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

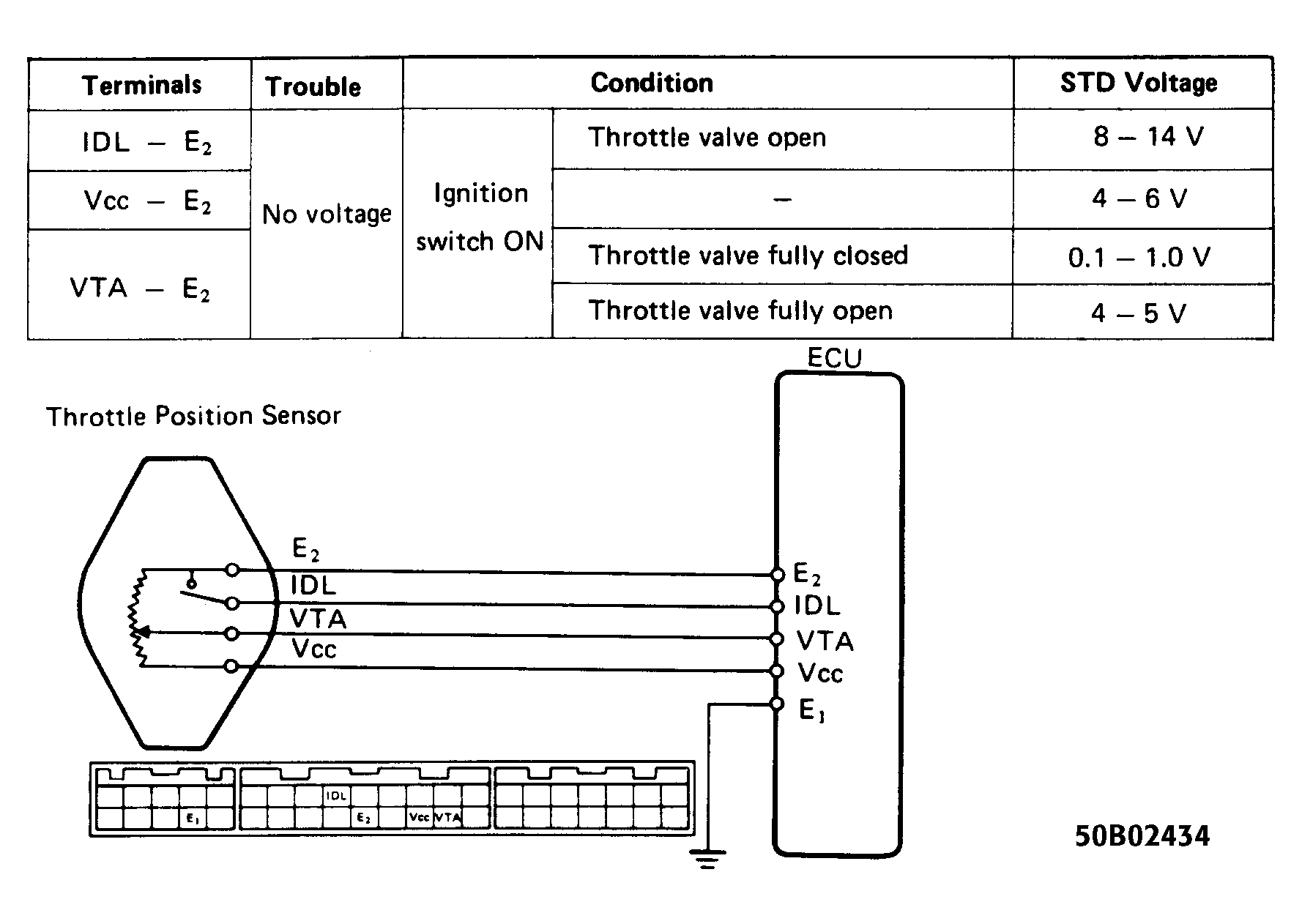

Fig 2: No. 8 Test, Code 41 (V6) (Code 7 on Turbo), TPS Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

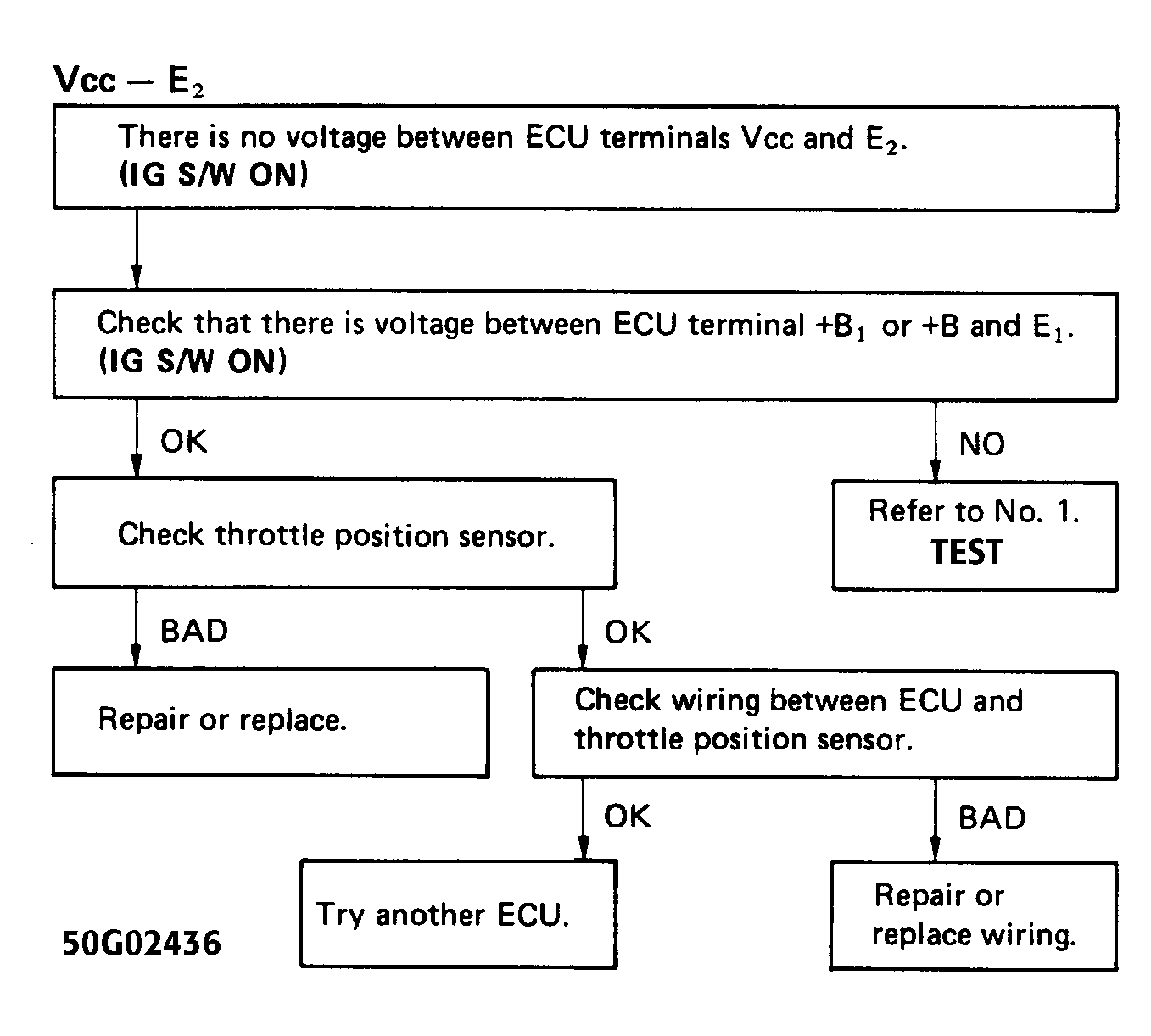

Fig 3: No. 8 Test Flow Chart (1 of 3), Code 41 (Code 7 on Turbo), TPS Sens. Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

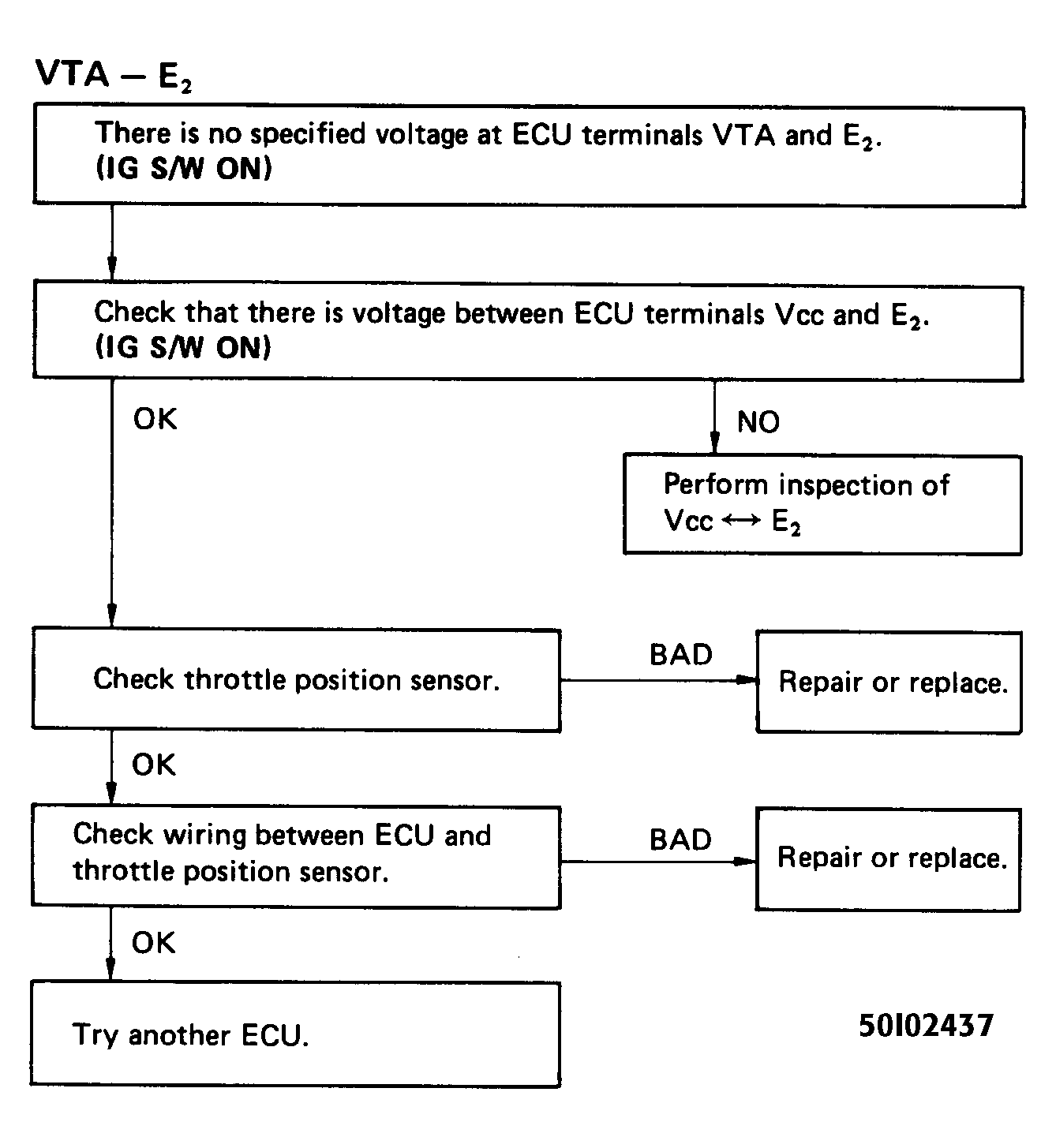

Fig 4: No. 8 Test Flow Chart (2 of 3), Code 41 (Code 7 on Turbo), TPS Sens. Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

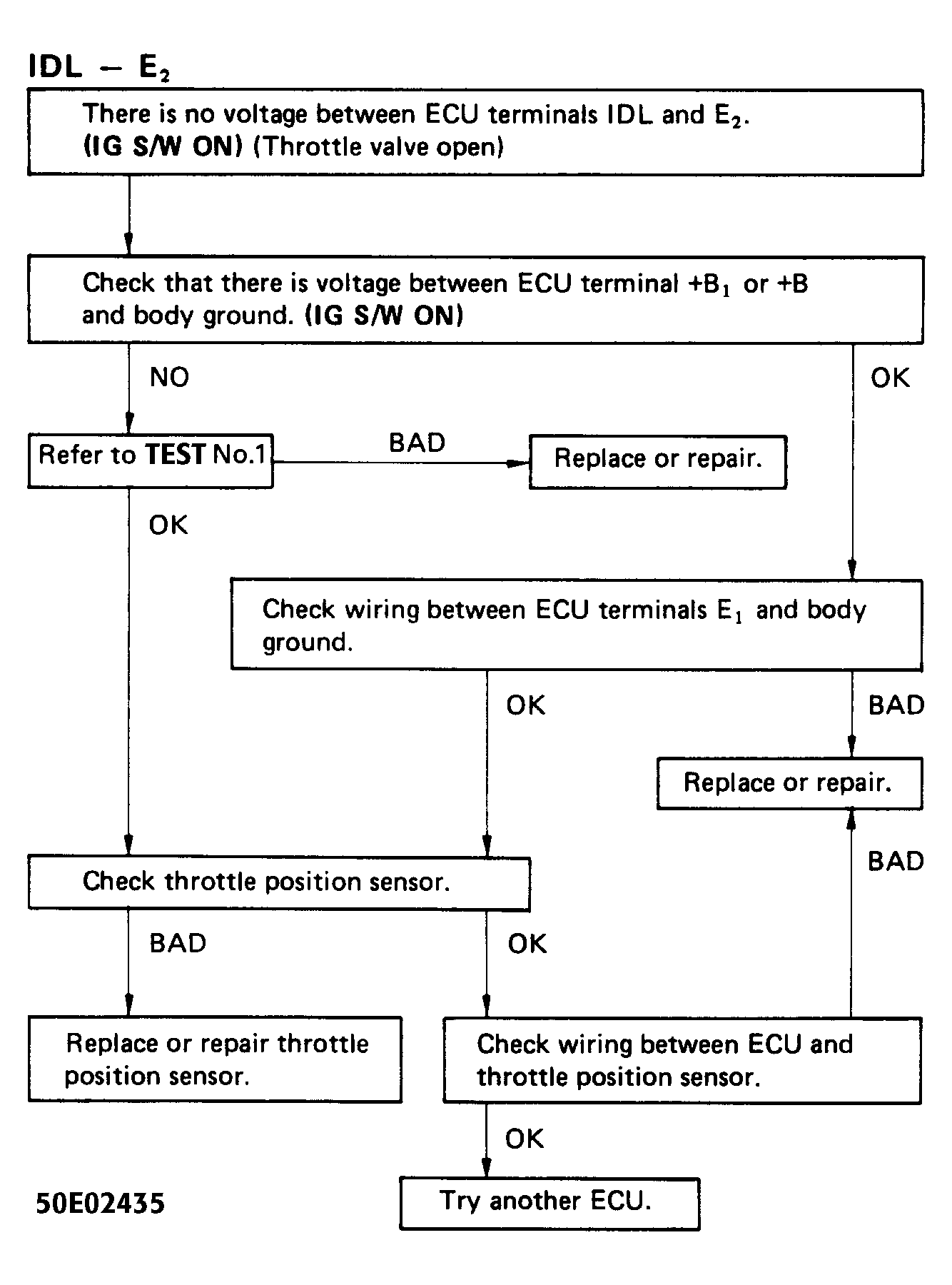

Fig 5: No. 8 Test Flow Chart (3 of 3), Code 41 (Code 7 on Turbo), TPS Sens. Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

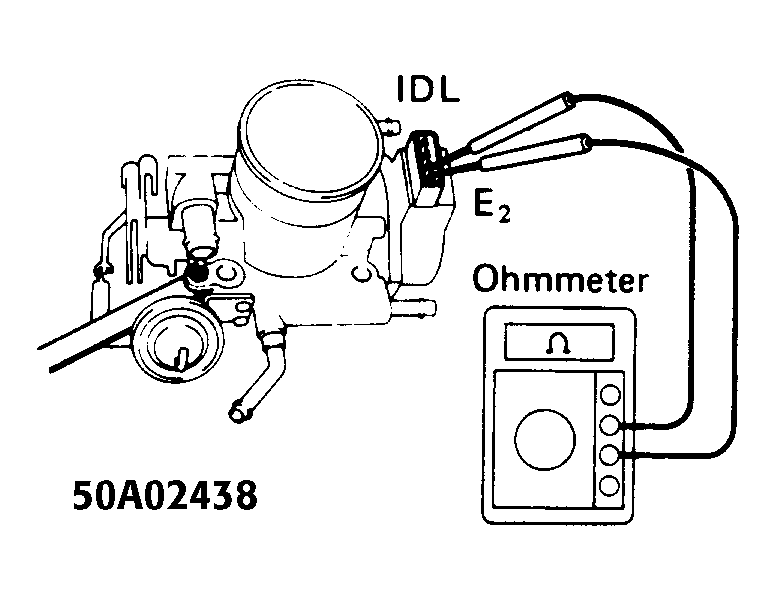

Fig 6: 4-Cyl. No. 8 Test, Code 41 (Code 7 on Turbo), TPS Sens. Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

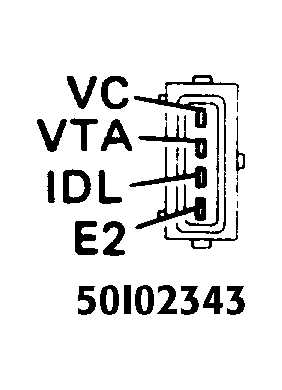

Fig 7: TPS Sens. Terminal Id

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Terminals "VC" and/or "VCC" will vary between models.
