Coolant Temperature Sensor

Remove connector from sensor. Using ohmmeter, check resistance between sensor terminals. Replace sensor if resistance is not within specification at specified temperature. See Fig 1.

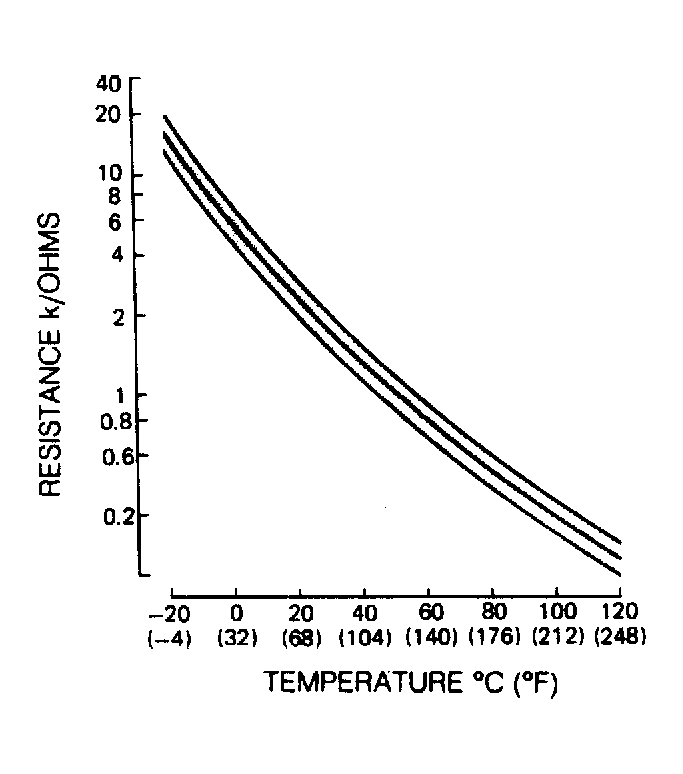

Fig 1: Coolant Temperature Sensor Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
