Injector Solenoid Resistor

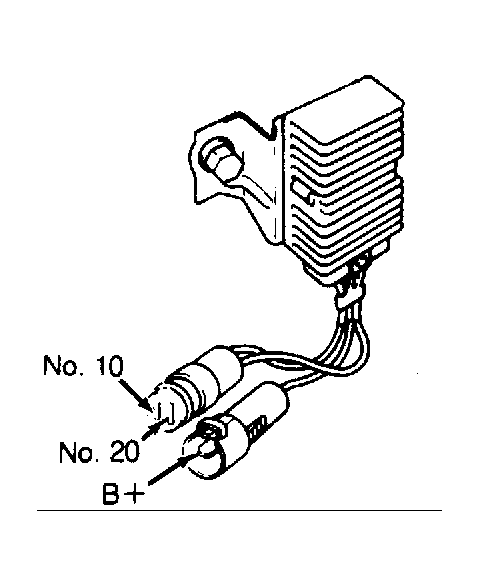

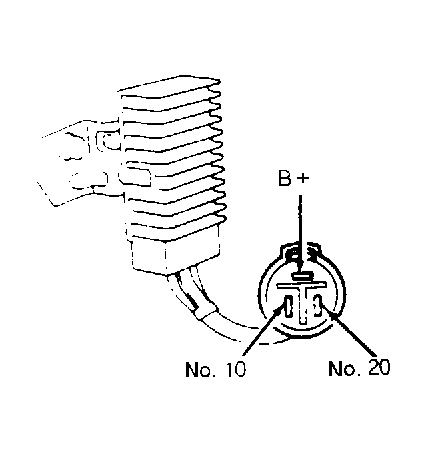

- Turn ignition off. Unplug injector solenoid resistor. Check resistance between terminal + B and other terminals. See Figure and Figure . See INJECTOR SOLENOID RESISTOR RESISTANCE table.
- If resistance is not as specified, replace solenoid resistor. See INJECTOR SOLENOID RESISTOR LOCATION table.
INJECTOR SOLENOID RESISTOR RESISTANCE
| Model | Ohms |
|---|---|
| 4-Cyl. & V6 | 2-3 |
INJECTOR SOLENOID RESISTOR LOCATION
| Model | Location |
|---|---|
| 4-Cyl. & V6 | Right Fenderwell |
