Power Source

Turn ignition on. Disconnect turbocharging pressure sensor connector and measure voltage between terminals "VC" and "E2" of harness connector. See Fig 1. Voltage should be 4-6 volts.

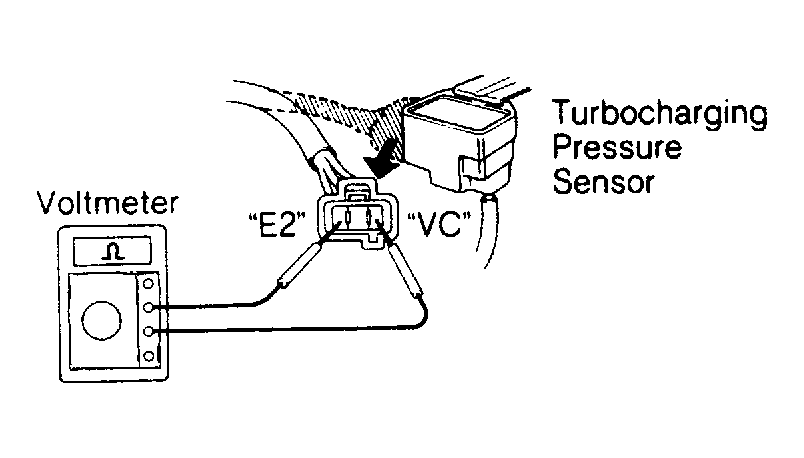

Fig 1: Measuring Voltage To Turbocharging Pressure Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
