Component Locations

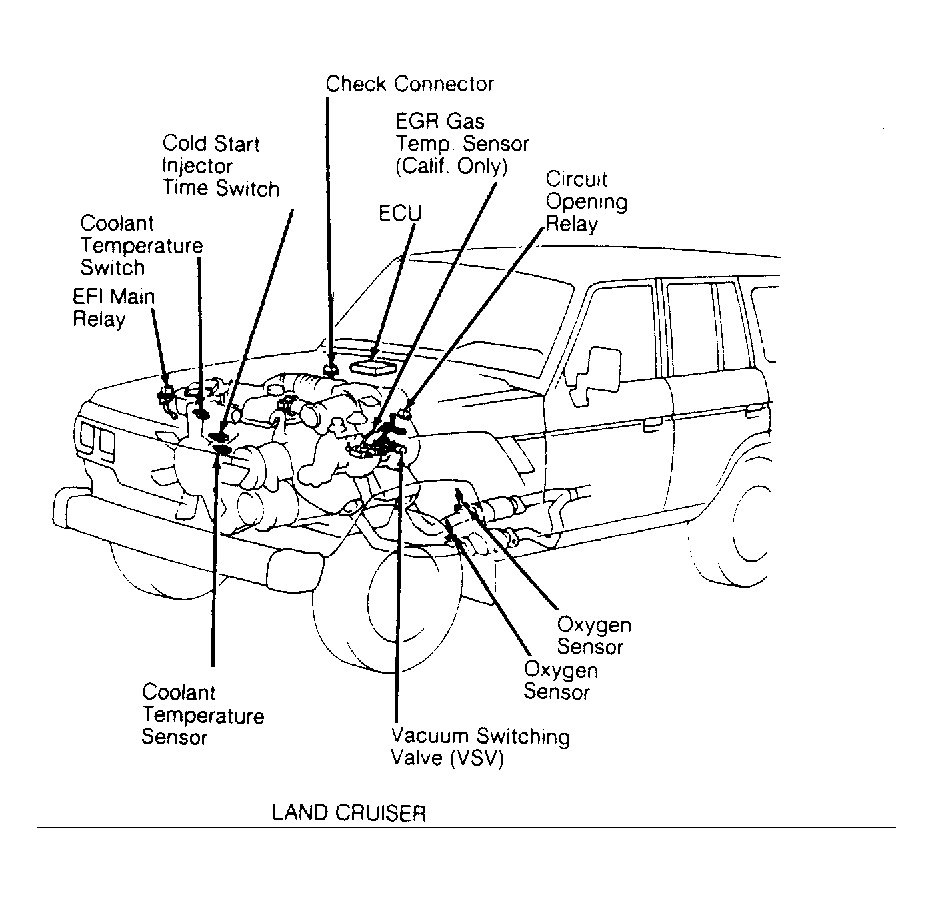

Fig 1: TCCS Component Locations
G95199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

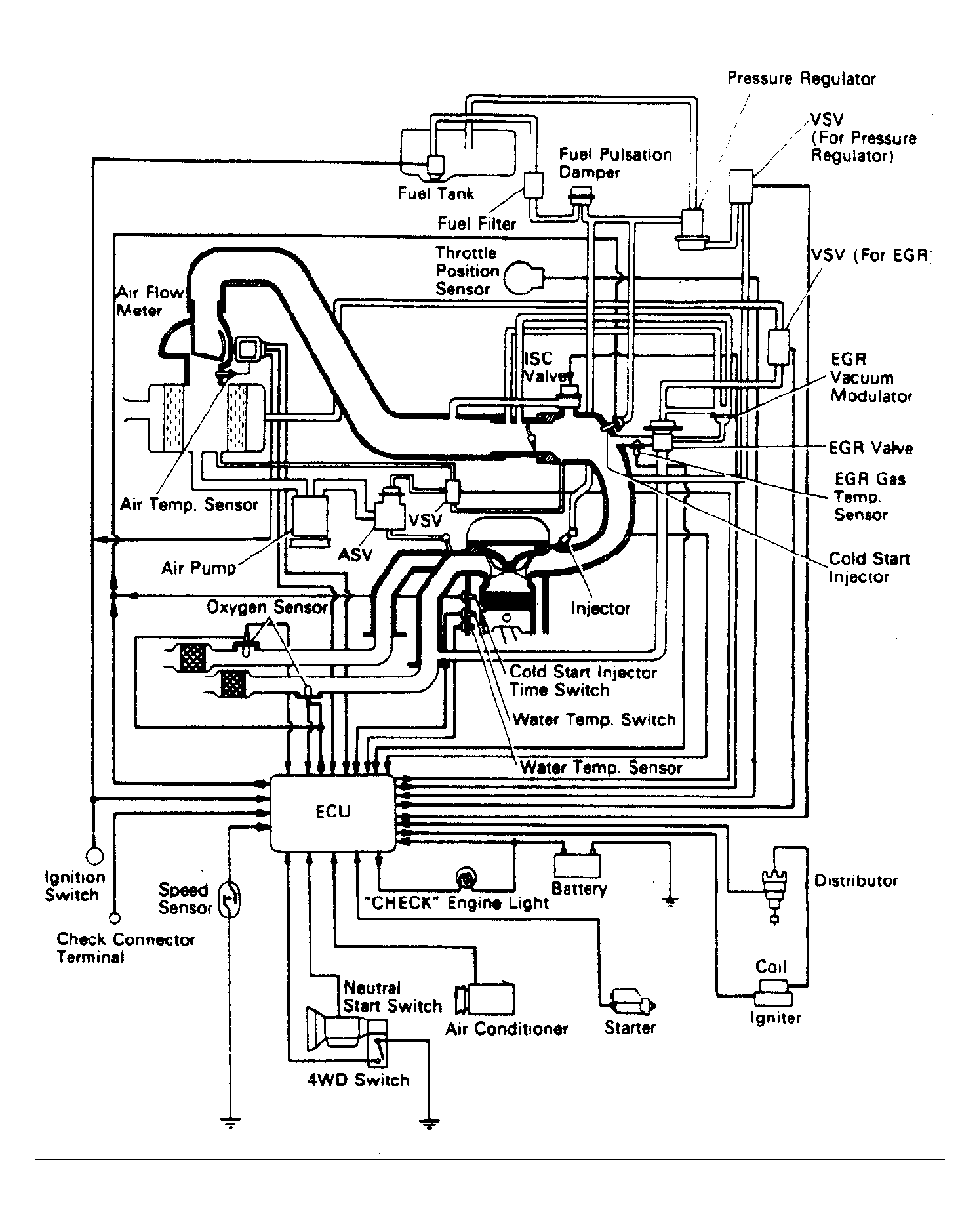

Fig 2: Computer Control System
G95214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
