No. 17 Test A/C System Circuit Test

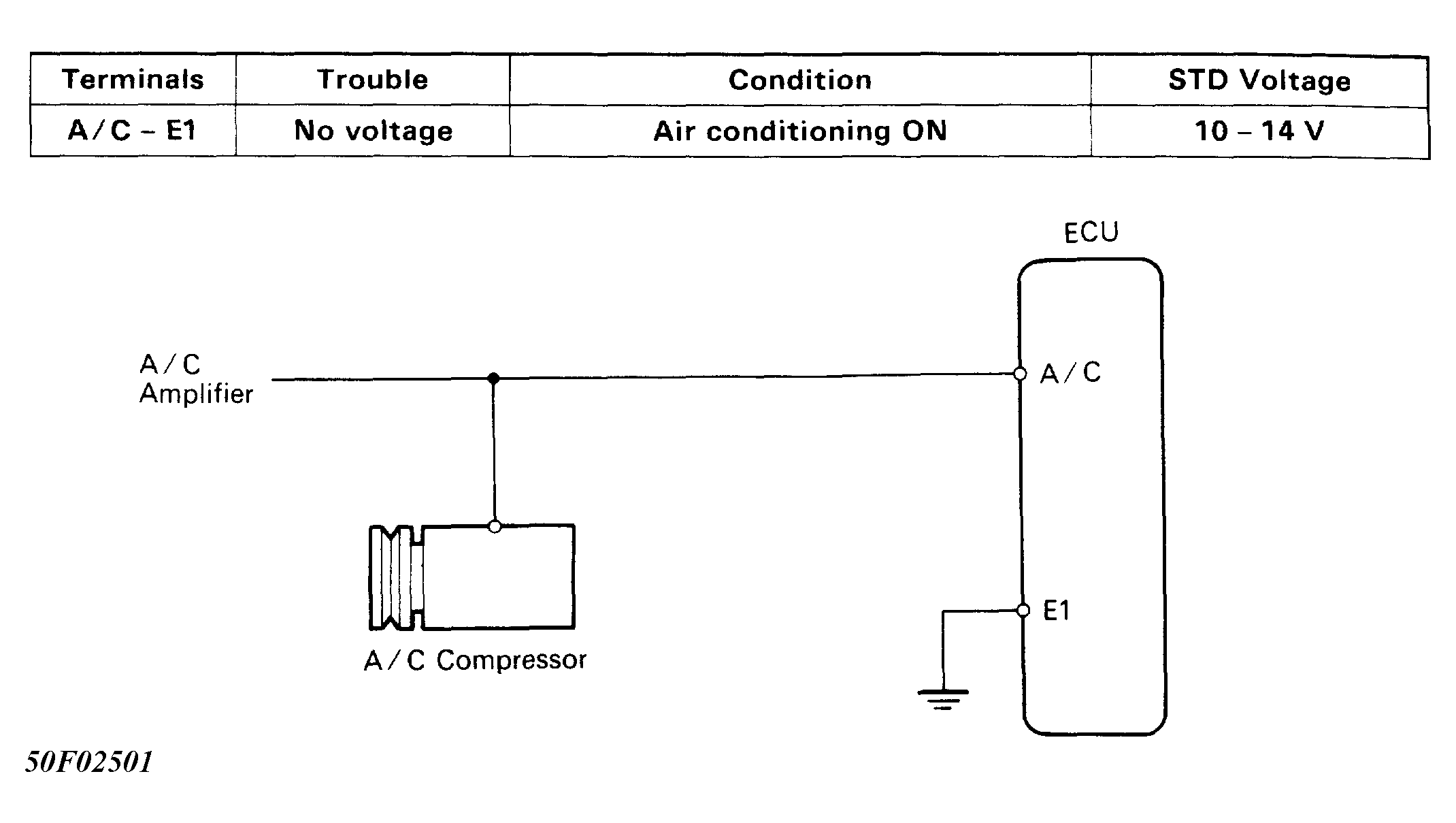

Fig 1: No. 17 Test A/C System Circuit Test, Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

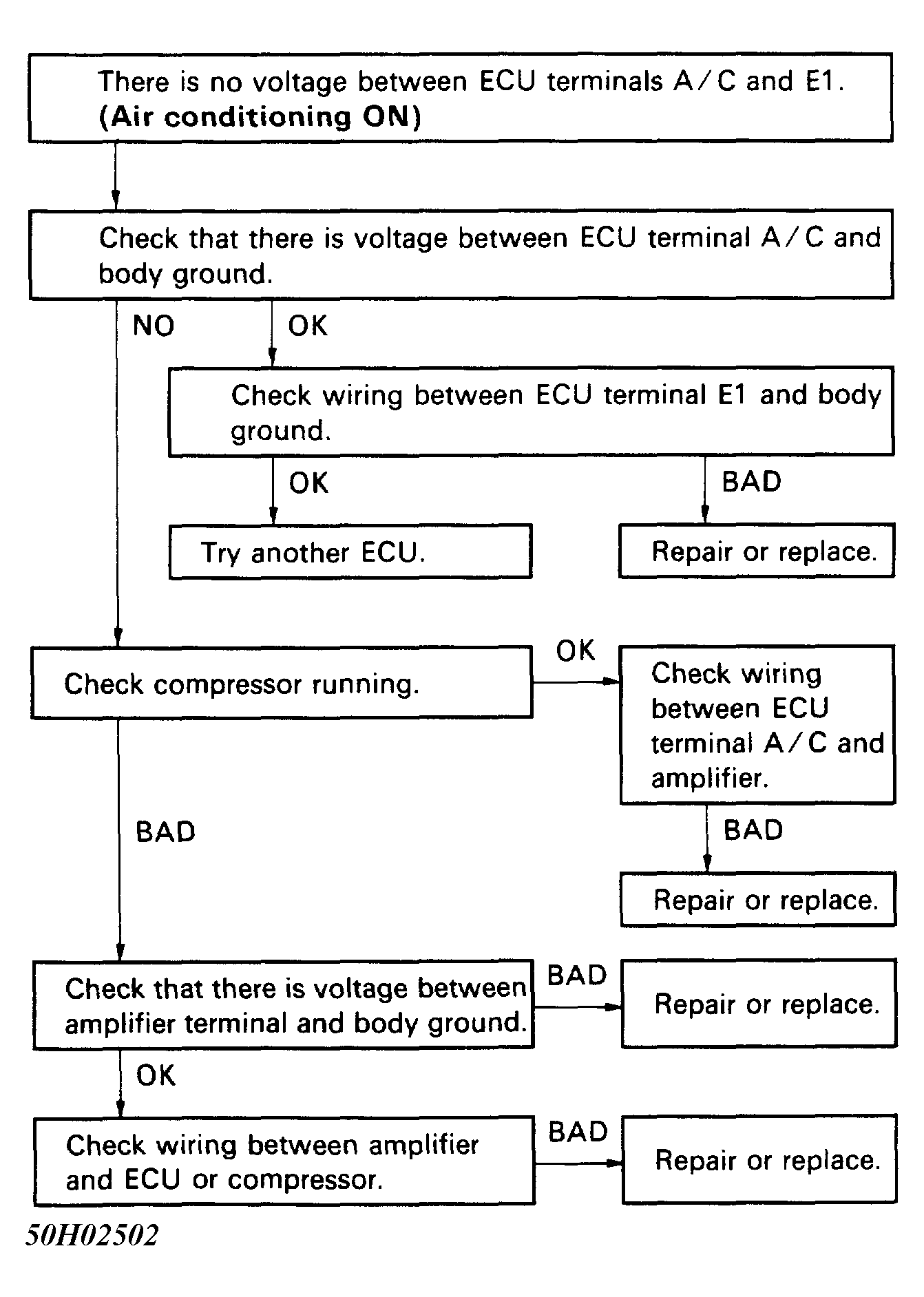

Fig 2: No. 17 Test A/C System Circuit Test, Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
