No. 7 Test, Code 35, HAC Sensor Signal

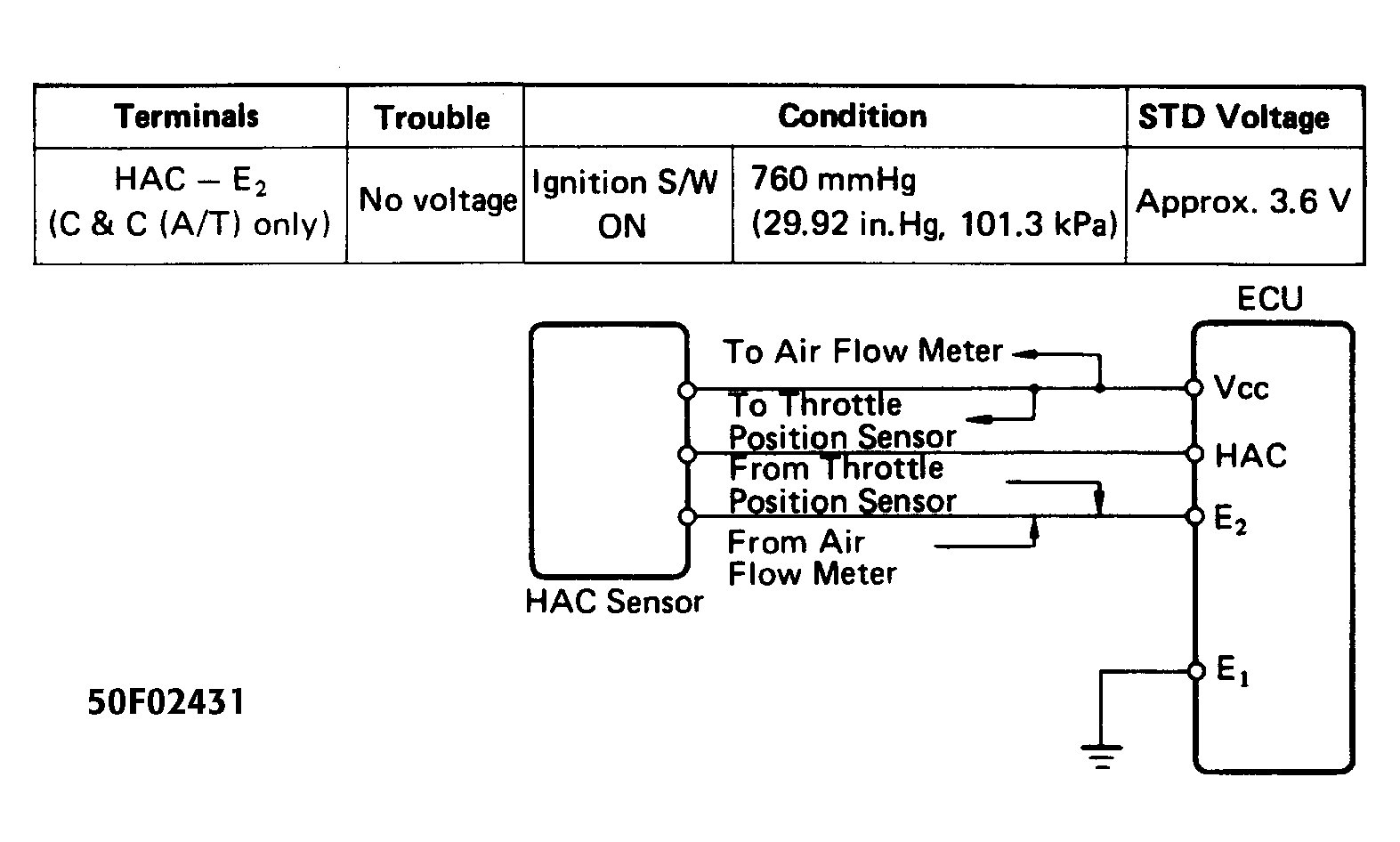

Fig 1: No. 7 Test, Code 35 Schematic, HAC Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

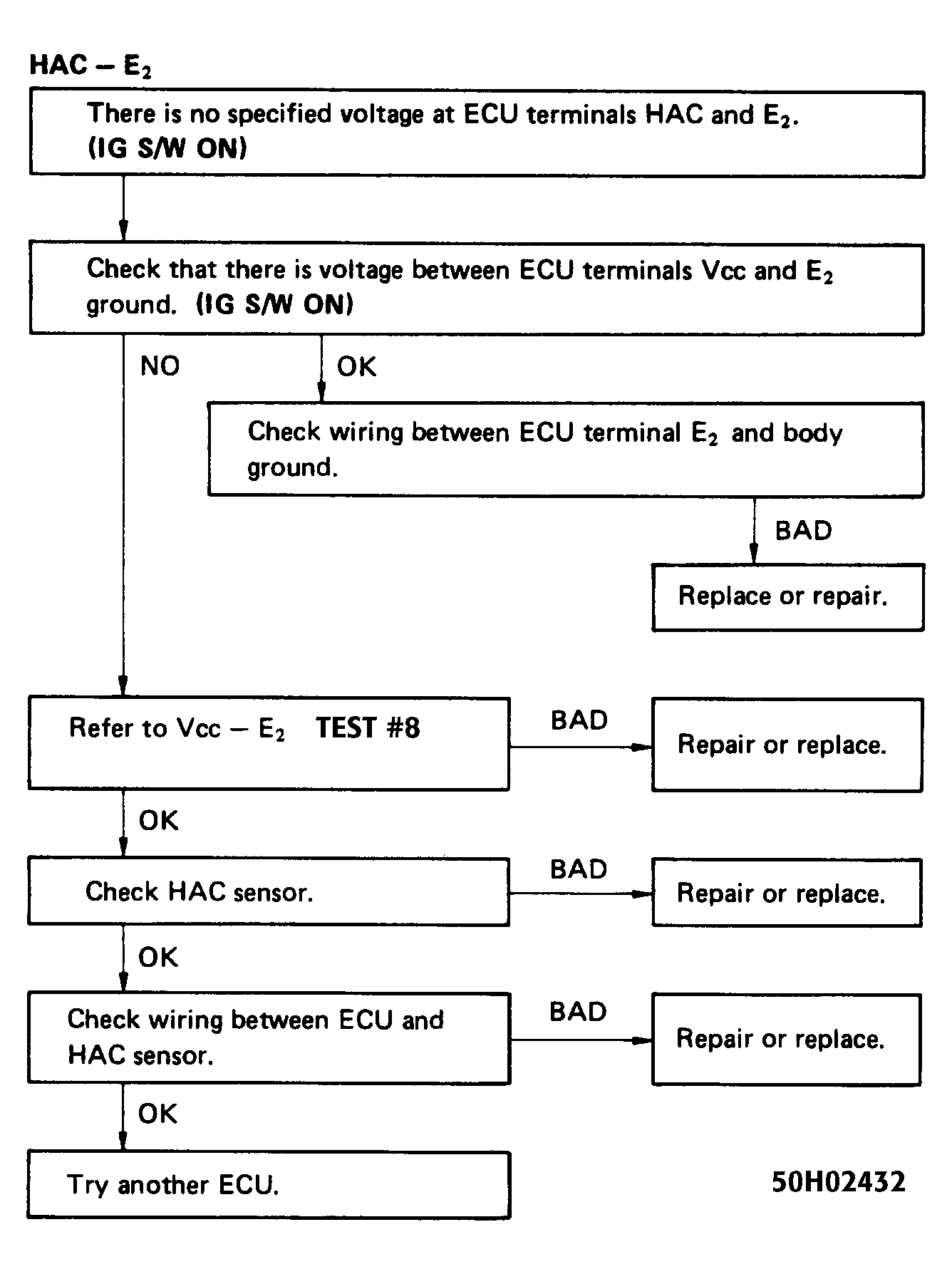

Fig 2: No. 7 Test, Code 35 Flow Chart, HAC Sensor Signal

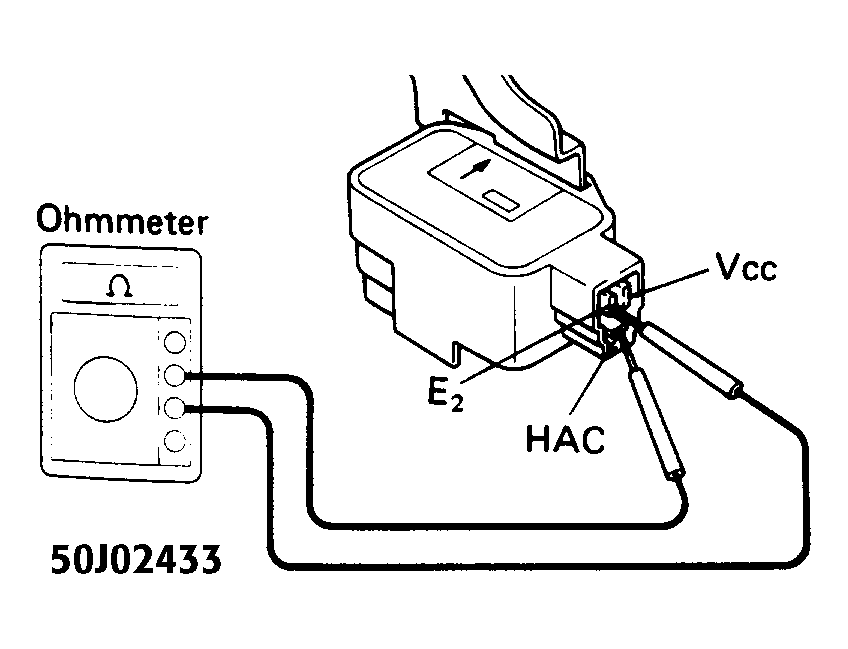

Fig 3: No. 7 Test, Code 35, HAC Sensor Check
