Vacuum Control Valve (VCV)

Remove VCV valve. See Fig 1. Using a vacuum pump, apply 12 in. Hg vacuum to port "S". See Fig 2. Blow air into port "Y" and ensure VCV opens. Release vacuum. Blow air into port "Y" and ensure VCV closes. If valve fails to operate as specified, it must be replaced.

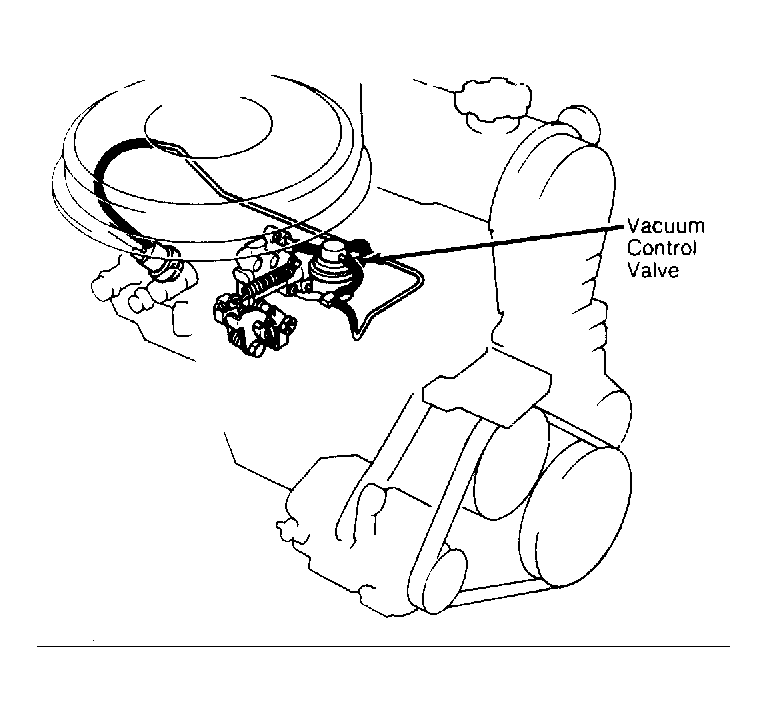

Fig 1: Location of VCV Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

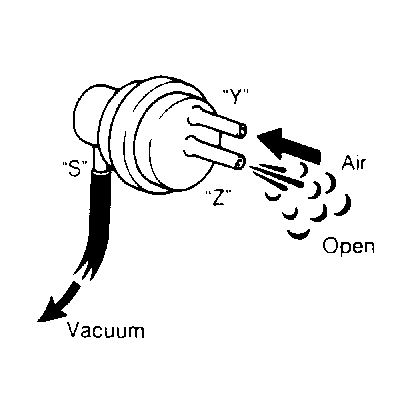

Fig 2: Checking VCV Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

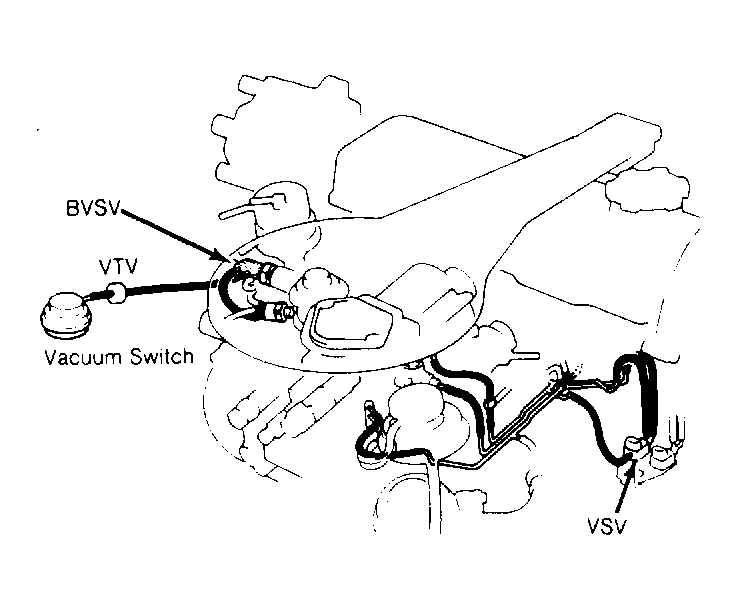

Fig 3: Location of VSV Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
