Pick-Up Coil Resistance Test

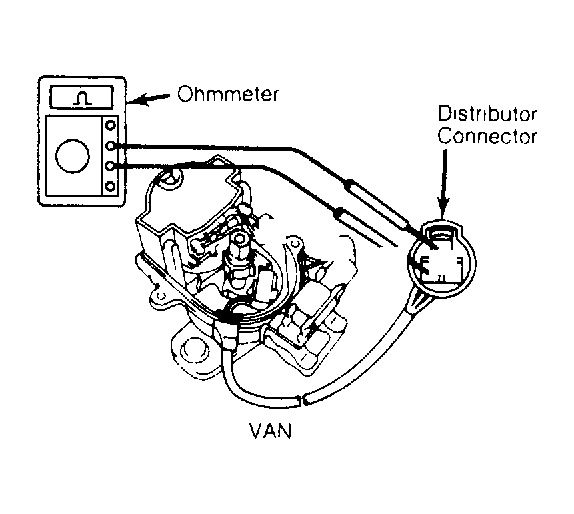

- On Van models, measure pick-up coil resistance at distributor connector. See Fig 1.
- If resistance is incorrect, remove ignition coil (if equipped) and replace distributor assembly.
TOYOTA PICK-UP COIL RESISTANCE
| Application | Ohms |
|---|---|
| Van | 140-180 |
